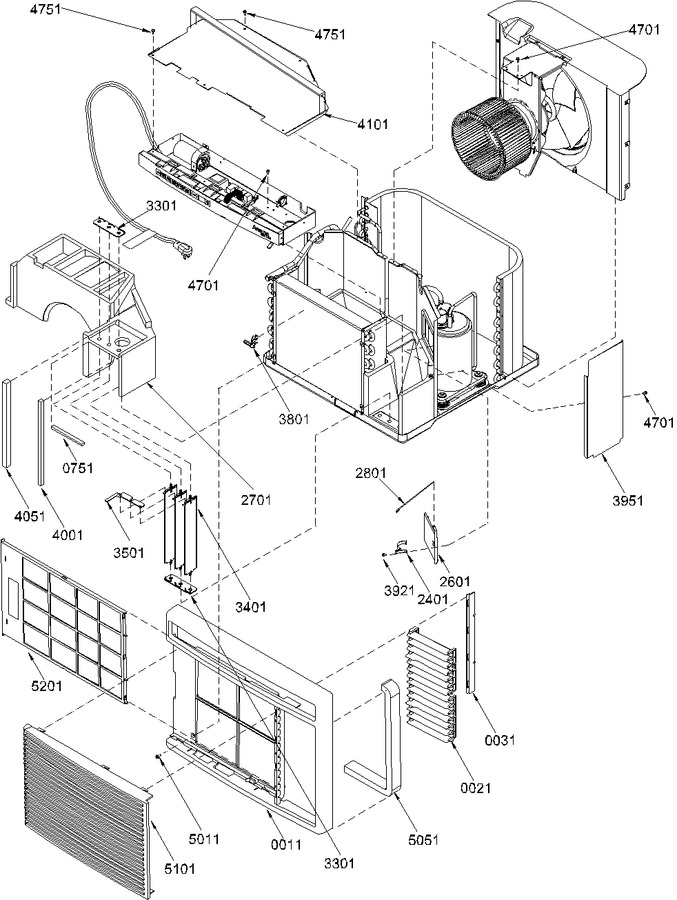

01 - Chassis & Outer Case Assembly


02 - Chassis Assembly


03 - Chassis Assembly


04 - Control Assembly


05 - Fan Motor Assembly/compressor Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	Y20051701		Front-compact		Appelez-nous	-
21	20052601		Louver, Horizontal		Appelez-nous	-
31	20052701		Housing, Control		Appelez-nous	-
751	10839705		Gasket (1=1ft.)		Appelez-nous	-
2401	20055502		Spring, Exh Door		Appelez-nous	-
2601	20051302		Door, Exhaust		Appelez-nous	-
2701	20062701		Scroll, Top Evap		Appelez-nous	-
2801	Y20055606		Actuator, Exh Door		Appelez-nous	-
3301	20051502		Base, Pivot		Appelez-nous	-
3401	20111201		Louver, Vert		Appelez-nous	-
3501	20051404		Gang Bar, Vertical Louver		Appelez-nous	-
3801	20075601		Clip, T`stat		Appelez-nous	-
3921	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 8.25
3951	20068702		Panel, Side (right)		Appelez-nous	-
4001	10839706		Gasket (per Foot)		Appelez-nous	-
4051	10839712		Gasket		Appelez-nous	-
4101	20090601		Cover, Top		Appelez-nous	-
4701	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
4751	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
5011	M0219730		Screw				$ 7.65
5051	10839701		Gasket 1.25 X .75		Appelez-nous	-
5101	20051801		Insert, Compact		Appelez-nous	-
5201	20064301		Filter, Compact		Appelez-nous	-
