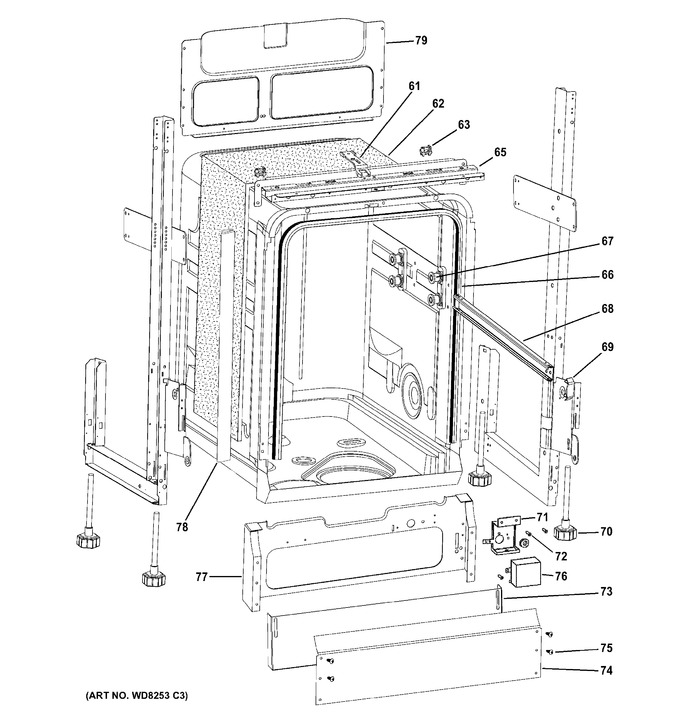

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper & Lower Rack Assemblies


4 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
61	WD13X10029		Door Strike		Appelez-nous	-
62	WD01X10249		Tub Insulation		Appelez-nous	-
63	WD17X10005		Hook		Appelez-nous	-
65	WD27X10192		Upper Front Brace Bk		Appelez-nous	-
66	WD08X10048		Tub Gasket		Appelez-nous	-
67	WD12X10175		Guide Rail Bracket Asm		Appelez-nous	-
68	WD30X10022		Guide Rail		Appelez-nous	-
69	WG04L01544		Cap - Guide Rail   (Replaces: WD12X10176)				$ 4.20
70	WD02X10118		Leveling Leg		Appelez-nous	-
71	WD12X10177		Junction Box		Appelez-nous	-
72	WD02X10120		Screw		Appelez-nous	-
73	WD27X10185		Toe Kick Bk		Appelez-nous	-
74	WD27X10186		Access Panel Bk		Appelez-nous	-
75	WD02X10121		Screw - Bk		Appelez-nous	-
76	WD12X10257		Cover Junction Box		Appelez-nous	-
77	WD27X10194		Lower Front Brace		Appelez-nous	-
78	WD08X10049		Tub Trim Bk		Appelez-nous	-
79	WD27X10191		Lower Rear Brace		Appelez-nous	-
