SELECT A DIAGRAM

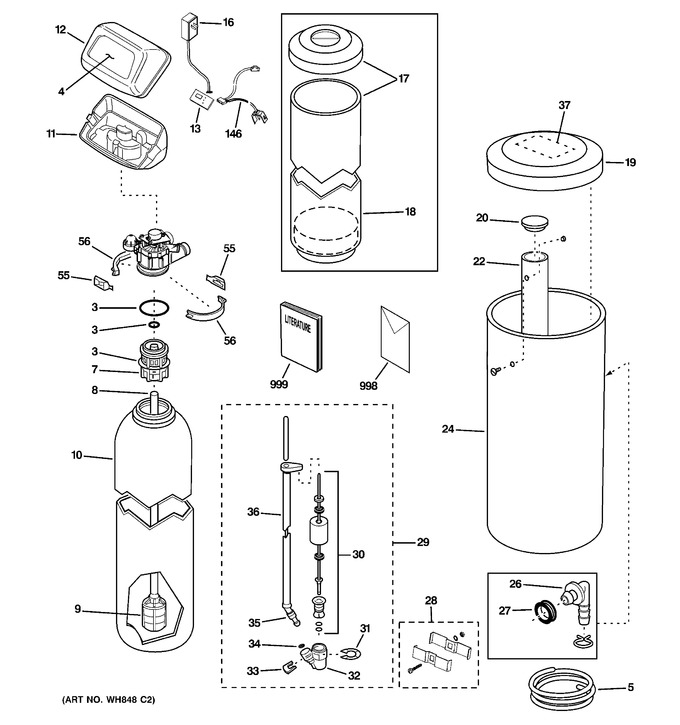

1 - Body Parts


2 - Pump


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	WS35X10001		O-ring Seal Kit				$ 35.65
4	WS34X10006		Decal		Appelez-nous	-
5	WS07X10004		Drain Hose-20ft				$ 84.45
7	WS14X10002		Distributor Top				$ 43.67
8	WS14X10001		Distributor Bottom				$ 238.90
9	WS01X10002		Resin, 1-cu Ft   (Replaces: WS01X10009)				$ 263.31
10	WS32X10014		Tank Resin - 10" X 47"		Appelez-nous	-
11	WS31X10015		Cover Bottom		Appelez-nous	-
12	WS31X10014		Cover Faceplate		Appelez-nous	-
13	WS21X10015		Timer		Appelez-nous	-
16	WS26X10013		Transformer W/power Cord				$ 143.84
17	WS31X10016		Shroud & Base		Appelez-nous	-
18	WS33X10004		Base		Appelez-nous	-
19	WS33X10005		Cover, Brine Tank		Appelez-nous	-
20	WS31X10017		Cover Brinwell		Appelez-nous	-
22	WS32X10002		Tank Brinewell, Round				$ 26.83
24	WS32X10013		Tank Brine		Appelez-nous	-
26	WS22X10016		Adaptor Hose				$ 45.92
27	WS22X10017		Grommet				$ 45.92
28	WS35X10035		Ground Clamp Kit		Appelez-nous	-
29	WS15X10035		Brine Valve Asm.   (Replaces: WS15X10005)				$ 205.51
30	WS35X10003		Float, Stem & Guide Asm.				$ 157.02
31	WS60X10004		Clip   (Replaces: WS03X10006)				$ 8.37
32	WS15X10077		Valve Body, Brine   (Replaces: WS15X10006)				$ 121.38
33	WS15X10077		Clip   (Replaces: WS03X10007)				$ 121.38
34	WS15X10077		Screen   (Replaces: WS03X10008)				$ 121.38
35	WS07X10002		Tubing Asm.				$ 118.49
36	WS07X10003		Tube Brine		Appelez-nous	-
37	WS34X10007		Decal		Appelez-nous	-
55	WS28X10078		Retainer Clamp   (Replaces: WS28X10003)				$ 42.39
56	WS28X10078		Clamp   (Replaces: WS28X10007)				$ 42.39
146	WS28X10018		Harness Wire, Sensor Asm		Appelez-nous	-
998	WS35X10039		Install Kit - Gnsm48f		Appelez-nous	-
999	49-50155-1		Owners Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
