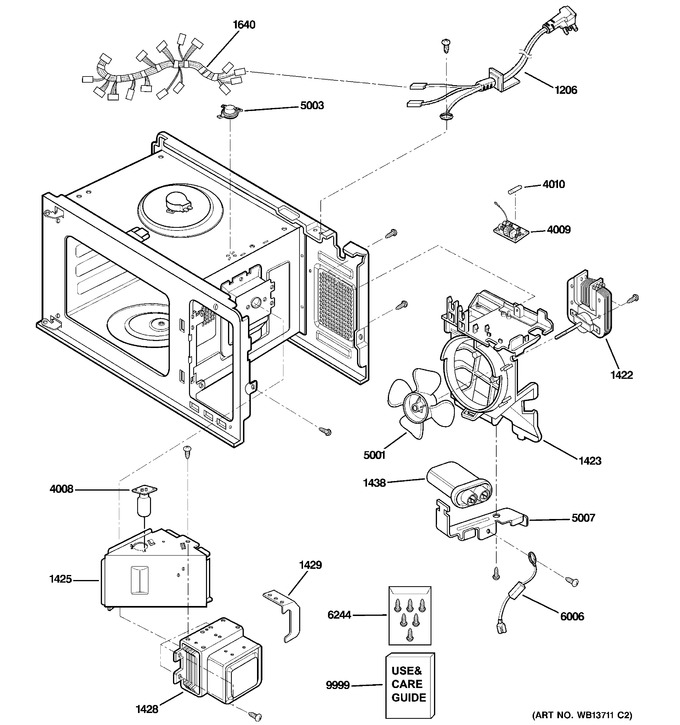

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1206 | WB18X10324 | Power Cord Asm |
|
- | |||||
| 1422 | WB26X10144 | Motor(circ),fan |
|
- | |||||
| 1423 | WB38X10077 | Guide,suction |
|
- | |||||
| 1425 | WB06X10737 | Duct |
|
- | |||||
| 1428 | WB27X10876 | Magnetron |
|
- | |||||
| 1429 | WB06X10544 | Insulator |
|
- | |||||
| 1438 | WG02L01893 | Capacitor,high Voltage (Replaces: WB27X11011) |
|
$ 77.69 | |||||
| 1640 | WB18X10404 | Harness,single |
|
- | |||||
| 4008 | WB36X10063 | Lamp |
|
- | |||||
| 4009 | WB02X11250 | Noise Filter |
|
- | |||||
| 4010 | WG02F06332 | Fuse (Replaces: WB27X10388) |
|
Immediately | $ 14.29 | ||||
| 5001 | WB38X10078 | Fan |
|
- | |||||
| 5003 | WG02F01601 | Thermostat (Replaces: WB24X10163) |
|
$ 31.45 | |||||
| 5007 | WB06X10306 | Bracket Hvc |
|
- | |||||
| 6006 | WG01A01078 | Diode (Replaces: WB27X10930) |
|
Immediately | $ 25.73 | ||||
| 6244 | WB01X10296 | Cmo Hardware Asm Bag |
|
- | |||||
| 9999 | 29-5599 | Use & Care |
|
- | |||||
| 9999 | 49-40552-1 | Instructions Install |
|
- | |||||
| 9999 | 31-41048 | Mini Manual |
|
- |
