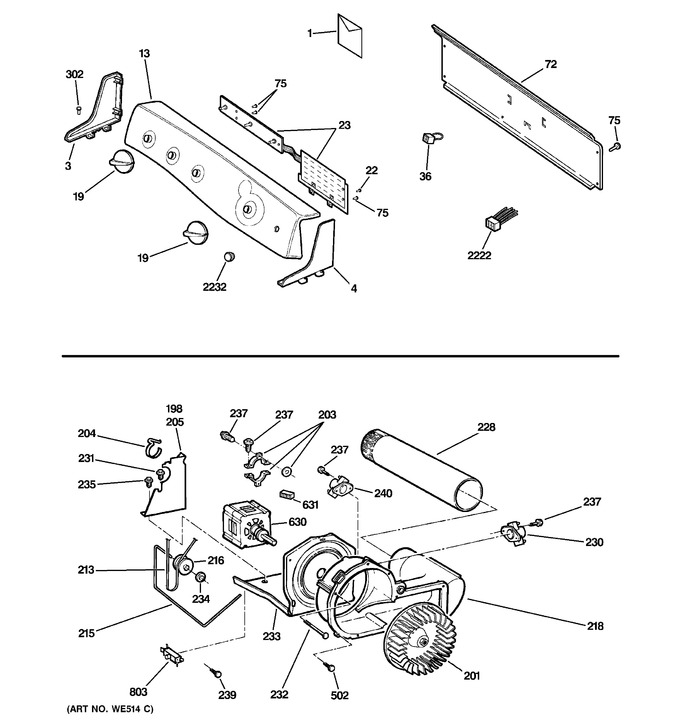

1 - Backsplash, Blower & Motor
2 - Front Panel & Door
3 - Cabinet
4 - Drum
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-16135 | Install Instruction |
|
- | |||||
| 1 | 31-16130 | Mini Manual |
|
- | |||||
| 1 | 49-90290 | Use & Care Manual |
|
- | |||||
| 3 | WE19M1461 | Dryer End Cap Lh Wh |
|
- | |||||
| 4 | WE19M1460 | Dryer End Cap Rh Wh |
|
- | |||||
| 13 | WE19M1506 | Backsplash Asm |
|
- | |||||
| 19 | WG04L00308 | Knob Asm (Replaces: WH01X10305) |
|
Immediately | $ 11.44 | ||||
| 22 | WH02X10236 | Scr M4-1.44 B Pa 25 S |
|
- | |||||
| 23 | WE4M369 | Board Asm Mounted |
|
- | |||||
| 36 | WD21X10026 | Harness |
|
- | |||||
| 72 | WE19M1310 | Back Panel |
|
- | |||||
| 75 | WE2M173 | Screw |
|
- | |||||
| 198 | WE2M200 | Screw Ground |
|
- | |||||
| 201 | WE16M17 | Blower Wheel W/insert |
|
- | |||||
| 203 | WE13X200 | Strap Motor |
|
- | |||||
| 203 | WE2M176 | Insulated Washer |
|
- | |||||
| 204 | WE1X921 | Strap Motor |
|
- | |||||
| 205 | WE13M39 | Motor Support |
|
- | |||||
| 213 | WW02F00854 | Belt Drive (Replaces: WE12M29) |
|
Immediately | $ 26.44 | ||||
| 215 | WW02A00060 | Idler Arm (Replaces: WE3M25) |
|
$ 11.34 | |||||
| 216 | WW02F00871 | Pulley Idler (Replaces: WE12M8) |
|
Immediately | $ 5.36 | ||||
| 218 | WE14M94 | Blower Housing Xtra Hole |
|
- | |||||
| 218 | WE1M473 | Gasket Seal, Hsng Exh |
|
- | |||||
| 228 | WW02L00148 | Pipe Exaust (Replaces: WE14M90) |
|
$ 14.02 | |||||
| 230 | WG04F01199 | T-stat , Outlet Bkup Org (Replaces: WE4M300) |
|
$ 10.99 | |||||
| 231 | WE2M187 | Screw |
|
- | |||||
| 232 | WW02A00032 | Screw (Replaces: WE2M202) |
|
$ 3.57 | |||||
| 233 | WD2M174 | Absorber-foam |
|
- | |||||
| 233 | WE13M35 | Motor Plate (e-coat) |
|
- | |||||
| 234 | WG04A00124 | Cap Nut (Replaces: WE2M96) |
|
$ 9.11 | |||||
| 235 | WW01A00521 | Screw (Replaces: WE1M280) |
|
$ 3.57 | |||||
| 237 | WE2M154 | Screw |
|
- | |||||
| 239 | WE2M167 | Screw |
|
- | |||||
| 240 | WE4M336 | Thermistor , Outlet Cntr |
|
- | |||||
| 302 | WE2M189 | Screw |
|
- | |||||
| 502 | WW02A00031 | Screw #10 (Replaces: WE2M174) |
|
Immediately | $ 3.57 | ||||
| 630 | WE17M37 | Motor Thrd Shaft & Pully |
|
- | |||||
| 631 | WE1M650 | Connector Motor |
|
$ 13.19 | |||||
| 803 | WW02F00249 | Switch Interlock (Replaces: WD21X557) |
|
Immediately | $ 15.72 | ||||
| 2222 | WE5M35 | Harness Elect.w/ T-stats |
|
- | |||||
| 2232 | WH01X10306 | Button Switch |
|
- |
