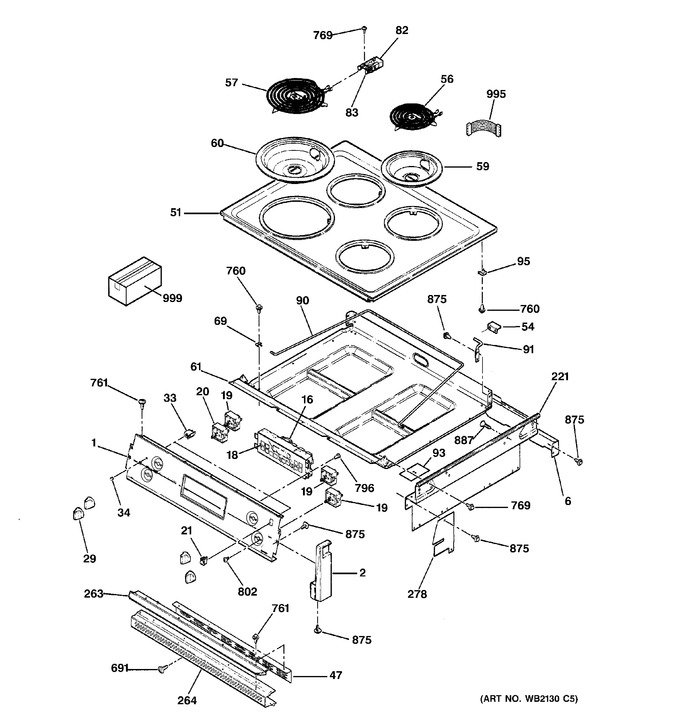

1 - Control Panel & Cooktop
2 - Body Parts
3 - Door
4 - Door Lock
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36K5567 | Control Panel |
|
- | |||||
| 1 | WB36K5565 | Control Panel |
|
- | |||||
| 1 | WB36K5566 | Control Panel |
|
- | |||||
| 2 | WB07T10533 | Cap End Rt (wh) |
|
- | |||||
| 2 | WB36T11004 | Cap End Rt (bq) |
|
- | |||||
| 2 | WB07T10531 | Cap End Rt (bk) |
|
- | |||||
| 2 | WB07T10532 | Cap End Lt (bk) |
|
- | |||||
| 2 | WB07T10534 | Cap End Lt (wh) |
|
- | |||||
| 2 | WB36T11005 | Cap End Lt (bq) |
|
- | |||||
| 6 | WB37K5022 | Panel Back |
|
- | |||||
| 16 | WB27T10480 | Control Ovn Erc3b |
|
- | |||||
| 18 | WB27K5338 | Clock Plate-white |
|
- | |||||
| 18 | WB27T10364 | Plate Clock |
|
- | |||||
| 18 | WB27K5337 | Clock Plate-black |
|
- | |||||
| 19 | WG02F00292 | Inf Sw Cntl 1500w (Replaces: WB24T10029) |
|
Immediately | $ 60.36 | ||||
| 20 | WG02F04192 | Inf Sw Cntl 2600w Rf (Replaces: WB24T10025) |
|
Immediately | $ 65.23 | ||||
| 21 | WB24K5036 | Rocker Switch-wht-ov Lgt |
|
- | |||||
| 21 | WB24K5035 | Rocker Swtch-blk-ov Lght |
|
- | |||||
| 21 | WB24T10137 | Switch Rocker (bq) |
|
- | |||||
| 29 | WB3K5110 | Infinite Knob-white |
|
- | |||||
| 29 | WB3K5109 | Infinite Knob Blk |
|
- | |||||
| 29 | WB03T10276 | Knob Inf (bq) |
|
- | |||||
| 33 | WG02F05616 | Light Indicator (Replaces: WB25T10040) |
|
$ 12.40 | |||||
| 34 | WG02F04387 | Lens (Replaces: WB25T10042) |
|
$ 3.57 | |||||
| 47 | WB38K5029 | Vent Barrier |
|
- | |||||
| 51 | WB62K5079 | Maintop Elec Black |
|
- | |||||
| 51 | WB62K5077 | Maintop Elec White |
|
- | |||||
| 51 | WB62T10221 | Maintop Elec |
|
- | |||||
| 54 | WB02X10739 | Bracket Anti-tip |
|
- | |||||
| 56 | WG02F04492 | Surface Unit Asm 6 (Replaces: WB30T10108) |
|
$ 73.60 | |||||
| 57 | WB30T10109 | Surface Unit Asm 8 |
|
- | |||||
| 59 | WG02F00094 | Burner Bowl 6" (Replaces: WB31T10010) |
|
Immediately | $ 35.73 | ||||
| 60 | WS01L00407 | Burner Bowl 8" (Replaces: WB31T10011) |
|
Immediately | $ 37.47 | ||||
| 61 | WB64K5051 | Bottom Burn Box |
|
- | |||||
| 69 | WB2M87 | Support Rod Clamp |
|
- | |||||
| 82 | WB17T10001 | Terminal Block |
|
- | |||||
| 83 | WG02A00835 | Clip Receptacle (Replaces: WB17T10009) |
|
$ 12.40 | |||||
| 90 | WB2K5226 | Rod Main Top Support |
|
- | |||||
| 91 | WB14K5009 | Hinge Maintop Rt |
|
- | |||||
| 91 | WB14K5008 | Hinge Maintop Lt |
|
- | |||||
| 93 | WB34K5137 | Barrier Bodyside Ext |
|
- | |||||
| 95 | WB1K5118 | Clip Hinge |
|
- | |||||
| 221 | WB63T10104 | Extension Upr Side Lt |
|
- | |||||
| 221 | WB63T10103 | Extension Upr Side Rt |
|
- | |||||
| 263 | WB7K5378 | I-brow Trim-blk |
|
- | |||||
| 263 | WB07T10526 | Trim I-brow (bq) |
|
- | |||||
| 263 | WB7K5379 | I-brow Trim-wht |
|
- | |||||
| 264 | WB7K5101 | Vent Trim |
|
- | |||||
| 264 | WB07T10528 | Trim Vent (bq) |
|
- | |||||
| 264 | WB7K5236 | Vent Trim-gray |
|
- | |||||
| 278 | WB34T10086 | Shield Frt Lwr Lt |
|
- | |||||
| 278 | WB34T10087 | Shield Frt Lwr Rt |
|
- | |||||
| 691 | WB1K5163 | Screw-wht |
|
- | |||||
| 691 | WB1K5162 | Screw-black |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WG02A00487 | Scr 8-18x.450 Ab Flt20 S (Replaces: WB01T10110) |
|
$ 4.78 | |||||
| 761 | WB1K5185 | Screw-white |
|
- | |||||
| 761 | WB1K5029 | Screw-black |
|
- | |||||
| 769 | WB1X500 | Scr 8-18 B Hxw 1/4 S |
|
- | |||||
| 796 | WB1K5116 | Screw |
|
- | |||||
| 802 | WB1K5122 | Screw |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 887 | WB01T10120 | Screw St 8-18x.750 (ni) |
|
- | |||||
| 995 | WB18T10136 | Maintop Wire Harness |
|
- | |||||
| 999 | WB18T10153 | Harness Wire Lck Mtr |
|
- | |||||
| 999 | WB18K5490 | Door Switch Wire Harness |
|
- | |||||
| 999 | 31-10830 | Pm Instructions Install |
|
- | |||||
| 999 | 31-15040 | Pm Mini Manual |
|
- | |||||
| 999 | 49-80647 | Pm Owners Manual |
|
- |
