SELECT A DIAGRAM

1 - Doors


2 - Cabinet


3 - Shelves


4 - Water System

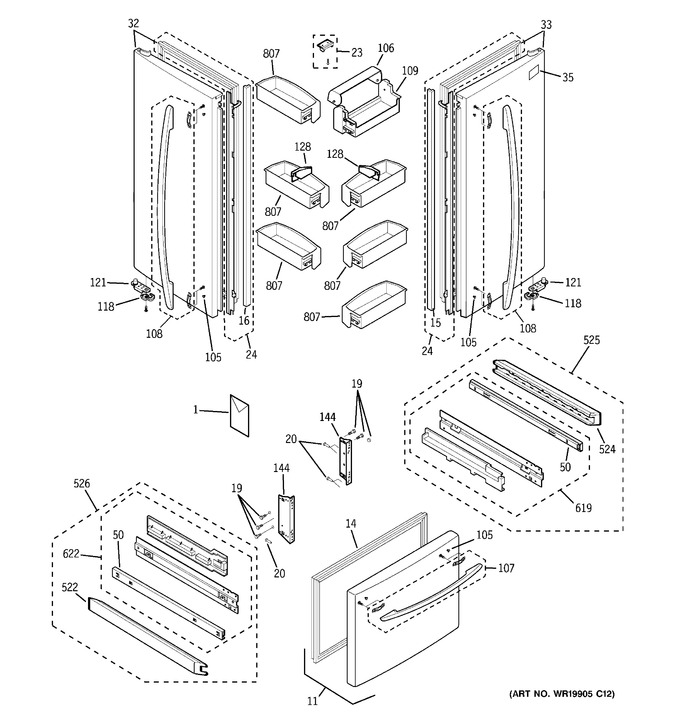

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60452		Use & Care		Appelez-nous	-
1	31-46168		Install Instuctions		Appelez-nous	-
1	31-51651		Mini Manual		Appelez-nous	-
11	WR78X11386		Door Asm,fzr Ss		Appelez-nous	-
14	WR14X10177		Gasket Asm Fz Bb		Appelez-nous	-
15	WG03L00103		Gasket Cvr Rh   (Replaces: WR17X11989)				$ 57.27
16	WG03L00102		Gasket Cvr Lh   (Replaces: WR17X11990)				$ 55.76
19	WR01X10637		Screw Drawing		Appelez-nous	-
20	WR01X10638		Screw Drawing		Appelez-nous	-
23	WG03L01440		Holder,gasket   (Replaces: WR02X12136)				$ 161.35
24	WR24X10173		Gasket Asm,door Ff Bb		Appelez-nous	-
32	WR78X11406		Door Asm Ff Lh Ss		Appelez-nous	-
33	WR78X11407		Door Asm Ff Rh Ss		Appelez-nous	-
35	WR04X10152		Nameplate		Appelez-nous	-
50	WR17X11931		Rail Asm		Appelez-nous	-
105	WG03L01090		Bolt Door Handle   (Replaces: WR01X10485)				$ 9.25
106	WG03L01159		Dairy Door Cvr   (Replaces: WR02X11706)				$ 62.33
107	WR12X10780		Handle Asm Hydroform Fz		Appelez-nous	-
108	WR12X10781		Handle Asm Hydroform Ff		Appelez-nous	-
109	WR71X10549		Dairy Bin		Appelez-nous	-
118	WR02X12072		Door Closure Mech		Appelez-nous	-
121	WG03L01237		Stopper,door Bk   (Replaces: WR02X11675)				$ 30.18
128	WG03L01630		Snugger   (Replaces: WR02X11680)				$ 17.01
144	WR02X11687		Connector Door		Appelez-nous	-
522	WR02X12035		Rail Support Left		Appelez-nous	-
524	WR02X12036		Rail Support Right		Appelez-nous	-
525	WR17X12054		Rail Asm Rh		Appelez-nous	-
526	WR17X12055		Rail Asm Lh		Appelez-nous	-
619	WR17X11587		Connector Asm Right		Appelez-nous	-
622	WR17X11588		Connector Asm Left		Appelez-nous	-
807	WR17X11606		Door Bin		Appelez-nous	-
