SELECT A DIAGRAM

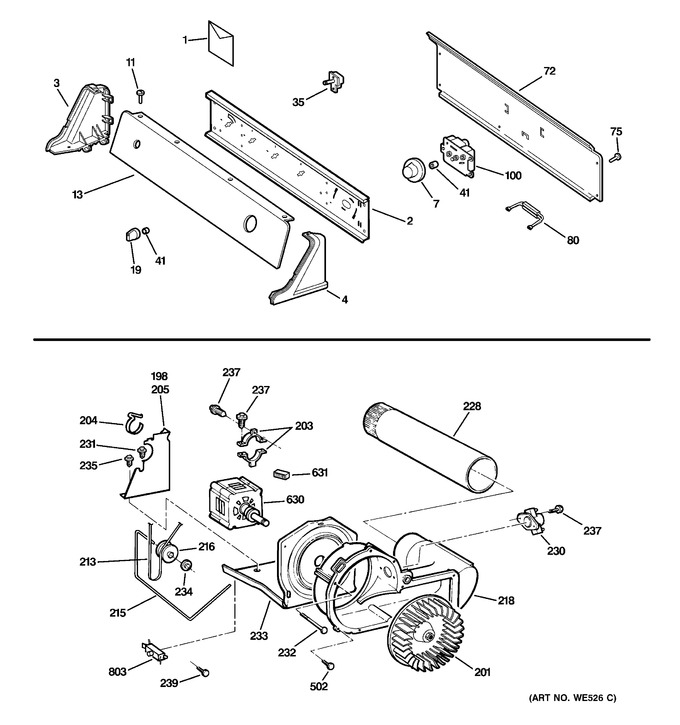

1 - Backsplash, Blower & Motor
2 - Front Panel & Door
3 - Cabinet
4 - Drum
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-16104 | Mini-manual Wiring |
|
- | |||||
| 1 | 49-9351 | Owner's Manual |
|
- | |||||
| 1 | 31-16134 | Install Instr |
|
- | |||||
| 2 | WH46X10046 | Support Switch |
|
- | |||||
| 2 | WE2M215 | Screw Switch Plate, 8-18 |
|
- | |||||
| 3 | WE19M1418 | End Cap Lh Snow Wh |
|
- | |||||
| 4 | WE19M1419 | End Cap Rh Snow Wh |
|
- | |||||
| 7 | WW02F00177 | Knob Asm Dryer (Replaces: WE1X1263) |
|
Immediately | $ 17.86 | ||||
| 11 | WH02X10089 | Scr 8-18 Ab Flt 9/16 Sn |
|
- | |||||
| 13 | WE19M1043 | Switch Trim |
|
- | |||||
| 19 | WH1X2721 | Knob & Clip Asm Wh |
|
$ 9.15 | |||||
| 35 | WW02F00230 | Start Switch (Replaces: WE4M326) |
|
Immediately | $ 44.46 | ||||
| 41 | WE1X980 | Clip Knob |
|
- | |||||
| 72 | WE20M343 | Rear Panel |
|
- | |||||
| 75 | WE2M173 | Screw |
|
- | |||||
| 80 | WE4M214 | Resistor Asm 2x4000ohms |
|
- | |||||
| 100 | WE4M249 | Timer |
|
- | |||||
| 198 | WE2M200 | Screw Ground |
|
- | |||||
| 201 | WE16M17 | Blower Wheel W/insert |
|
- | |||||
| 203 | WE13X200 | Strap Motor |
|
- | |||||
| 204 | WE1X921 | Strap Motor |
|
- | |||||
| 205 | WE13M39 | Motor Support |
|
- | |||||
| 213 | WW02F00854 | Belt Drive (Replaces: WE12M29) |
|
Immediately | $ 29.38 | ||||
| 215 | WW02A00060 | Idler Arm (Replaces: WE3M25) |
|
$ 12.60 | |||||
| 216 | WW02F00871 | Pulley Idler (Replaces: WE12M8) |
|
Immediately | $ 5.96 | ||||
| 218 | WE14M93 | Blower Housing |
|
- | |||||
| 218 | WE1M473 | Gasket Seal, Hsng Exh |
|
- | |||||
| 228 | WW02L00148 | Pipe Exaust (Replaces: WE14M90) |
|
$ 15.58 | |||||
| 230 | LS2-135 | Thermostat Drum Out (Replaces: WE4M127) |
|
Immediately | $ 27.33 | ||||
| 231 | WE2M187 | Screw |
|
- | |||||
| 232 | WW02A00032 | Screw (Replaces: WE2M202) |
|
$ 3.97 | |||||
| 233 | WE13M35 | Motor Plate (e-coat) |
|
- | |||||
| 234 | WG04A00124 | Cap Nut (Replaces: WE2M96) |
|
$ 10.12 | |||||
| 235 | WW01A00521 | Screw (Replaces: WE1M280) |
|
$ 3.97 | |||||
| 237 | WE2M154 | Screw |
|
- | |||||
| 239 | WE2M167 | Screw |
|
- | |||||
| 502 | WW02A00031 | Screw #10 (Replaces: WE2M174) |
|
Immediately | $ 3.97 | ||||
| 630 | WE17M47 | Motor Kit 240/50 W/wheel |
|
- | |||||
| 631 | WE1M650 | Connector Motor |
|
$ 13.19 | |||||
| 803 | WW02F00249 | Switch Interlock (Replaces: WD21X557) |
|
Immediately | $ 17.47 |
