SELECT A DIAGRAM

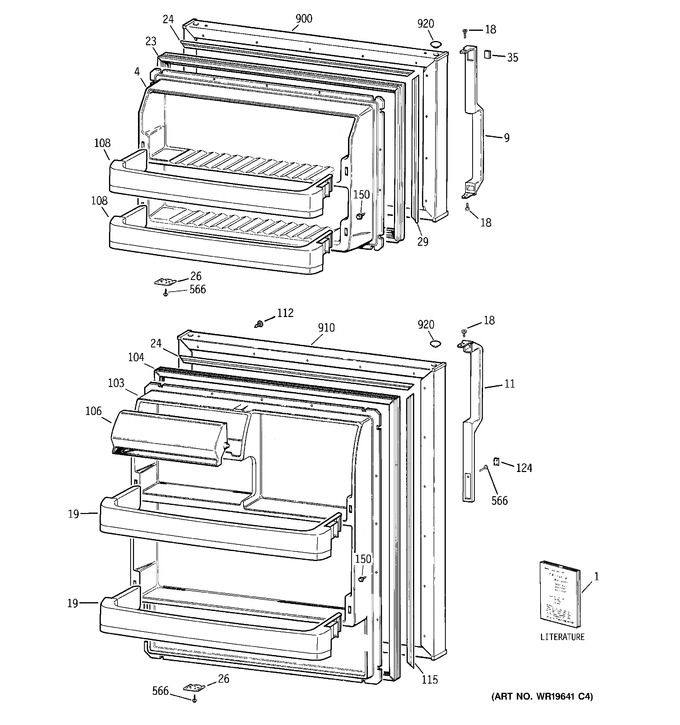

1 - Doors


2 - Cabinet


3 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60512		Pm Guide Owners		Appelez-nous	-
1	31-51618		Pm Mini Manual Wiring		Appelez-nous	-
4	WR77X10068		Door Inner Fz		Appelez-nous	-
9	WG03L00751		Handle/np Asm Fz Wh   (Replaces: WR12X10108)				$ 66.80
9	WR12X10717		Handle Door Asm Fz Bq		Appelez-nous	-
9	WR12X10718		Handle Door Asm Fz Bk		Appelez-nous	-
9	WG03L00751		Handle Door Asm Fz Wh   (Replaces: WR12X10714)				$ 66.80
9	WR12X10685		Handle Door Asm Fz		Appelez-nous	-
9	WR12X10453		Handle Door Asm Fz		Appelez-nous	-
11	WG03L00750		Handle Door Ff Wh   (Replaces: WR12X10710)				$ 58.86
11	WG03L01398		Handle Door Ff   (Replaces: WR12X10684)				$ 68.39
11	WG03L00750		Handle Door Ff Wh   (Replaces: WR12X10107)				$ 58.86
11	WR12X10454		Handle Door Ff Cc		Appelez-nous	-
11	WR12X10712		Handle Door Ff Bq		Appelez-nous	-
11	WR12X10713		Handle Door Ff Bk		Appelez-nous	-
18	WR1X1726		Scr 10-16ab Fwr 3/4 Ss		Appelez-nous	-
19	WG03F01597		Shelf Fixed Ff   (Replaces: WR17X11889)			Immediately	$ 66.22
23	WG03L00640		Gskt Door Fz   (Replaces: WR24X10050)			Immediately	$ 146.91
23	WR24X10153		Gasket Door Fz		Appelez-nous	-
24	WR2X8235		Retainer Strip H		Appelez-nous	-
26	WR02X10513		Stop Door Ff/fz		Appelez-nous	-
26	WR02X12211		Stop Door		Appelez-nous	-
29	WR2X8236		Retainer Strip V		Appelez-nous	-
35	WR04X10030		Lens Nameplate Bk		Appelez-nous	-
35	WG03F01617		Lens Nameplate Wh   (Replaces: WR04X10028)				$ 4.37
103	WR77X10067		Door Inner Ff		Appelez-nous	-
103	WR77X10074		Door Inner Ff		Appelez-nous	-
104	WR24X10230		Gasket Door Ff   (Replaces: WR24X10152)				$ 127.39
104	WG03F00914		Gasket Door Ff   (Replaces: WR24X10049)			Immediately	$ 155.77
106	WG03L00757		Door Dairy   (Replaces: WR22X476)				$ 109.16
108	WG03F01622		Shelf Fixed   (Replaces: WR17X11890)			Immediately	$ 50.92
112	WR01A00517		Plug Door Rvsbl Wh   (Replaces: WR2X8693)				$ 4.37
112	WR01A00518		Plug Door Rvsbl Bk   (Replaces: WR2X8701)				$ 4.20
112	WR02X10459		Plug Door Rvsbl Bq		Appelez-nous	-
115	WR2X8237		Retainer Strip Vert		Appelez-nous	-
124	WR12X564		Plug Button Insert Bk		Appelez-nous	-
124	WR12X10452		Plug Button Insert Bq		Appelez-nous	-
124	WR12X721		Plug Button Insert Wh		Appelez-nous	-
150	WR1X1791		Scr 8-15 Spec		Appelez-nous	-
150	WR01X10587		Scr 8-16 Gx Flp 9/16 S		Appelez-nous	-
566	WR01X10590		Scr 10-16 Ab Pnt20 1/2 S		Appelez-nous	-
566	WR1X1728		Scr 10-16 1/2 Ph		Appelez-nous	-
900	WR78X10470		Door Foam Asm Fz Bq		Appelez-nous	-
900	WR78X10333		Door Foam Asm Fz Wh		Appelez-nous	-
900	WR78X11032		Door Foam Asm Fz Bb		Appelez-nous	-
910	WR78X11200		Door Foam Asm Ff		Appelez-nous	-
910	WR78X11199		Door Foam Asm Ff		Appelez-nous	-
910	WG03F00914		Door Foam Asm Ff   (Replaces: WR78X11201)			Immediately	$ 155.77
920	WR02X11774		Plug Button Thimble		Appelez-nous	-
920	WR02X10850		Plug Button Thimble Bq		Appelez-nous	-
920	WR2X8233		Plug Button Wh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
