SELECT A DIAGRAM
1 - Doors
2 - Freezer Section
3 - Freezer Shelves
4 - Fresh Food Section
5 - Fresh Food Shelves
6 - Case Parts
7 - Machine Compartment
8 - Clad Components
SELECT A DIAGRAM
New Model Search:

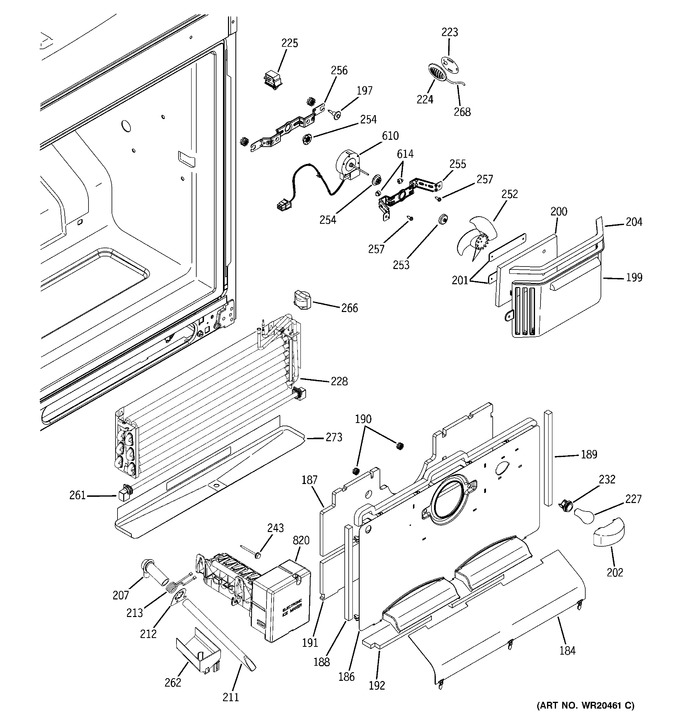

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 184 | WR17X12673 | Cover Return Fz |
|
- | |||||
| 186 | WR17X12675 | Cover Evap |
|
- | |||||
| 187 | WR14X10297 | Foam Pad Cover Evap |
|
- | |||||
| 188 | WR14X10221 | Foam Strip Se Adh |
|
- | |||||
| 189 | WR14X10222 | Foam Strip Se Adh |
|
- | |||||
| 190 | WR17X12252 | Grommet Evap Fan |
|
- | |||||
| 191 | WR17X12253 | Insulation Cover Evap |
|
- | |||||
| 192 | WR14X10224 | Foampad Cover Lower Evap |
|
- | |||||
| 197 | WR01X10685 | Scr 8-18 Ab Ihw |
|
- | |||||
| 199 | WR17X12254 | Cover Evap Fan |
|
- | |||||
| 200 | WR14X10225 | Foam Pad Cover Evap |
|
- | |||||
| 201 | WR14X10226 | Holder Foam Pad |
|
- | |||||
| 202 | WR01L04380 | Shield Light Fz (Replaces: WR02X11568) |
|
$ 39.70 | |||||
| 204 | WR14X10223 | Foam Strip Se Adh |
|
- | |||||
| 207 | WR2X9153 | Grommet Water Fill |
|
- | |||||
| 211 | WR17X12258 | Tube Im Fill |
|
- | |||||
| 212 | WR17X12259 | Plate Grounding |
|
- | |||||
| 213 | WR51X10093 | Heater Fill Tube Asm |
|
- | |||||
| 223 | WR01L04393 | Shunt Sensor (Replaces: WR02X10668) |
|
Immediately | $ 15.88 | ||||
| 224 | WR01L04066 | Grille Sensor (Replaces: WR02X10647) |
|
$ 3.97 | |||||
| 225 | WG03F05844 | Switch Light (Replaces: WR23X10179) |
|
Immediately | $ 65.21 | ||||
| 227 | WR02X12289 | Lamp |
|
- | |||||
| 228 | WR01L02794 | Low Side Asm (Replaces: WR85X10087) |
|
$ 176.78 | |||||
| 232 | WR01F01775 | Socket & Terminal Asm (Replaces: WR2X9391) |
|
$ 8.34 | |||||
| 243 | WR01X10626 | Scr 8-18 Ab Hxw 5/4 S |
|
- | |||||
| 252 | WR60X10208 | Blade Evap Fan Asm |
|
- | |||||
| 253 | WR01F00744 | Cap Dust (Replaces: WR02X10322) |
|
$ 37.17 | |||||
| 254 | WG03F00306 | Grommet Evap Fan (Replaces: WR02X12008) |
|
Immediately | $ 7.24 | ||||
| 255 | WR17X12269 | Bracket Evap Fan Frt |
|
- | |||||
| 256 | WR17X12270 | Bracket Evap Fan Rear |
|
- | |||||
| 257 | WR01X10620 | Scr 10-32 |
|
- | |||||
| 261 | WR01F00995 | Heater Def Asm (Replaces: WR51X10094) |
|
$ 84.76 | |||||
| 262 | WR01L01185 | Cup Fill Im (Replaces: WR29X10064) |
|
$ 10.52 | |||||
| 266 | WR01F02868 | Thermostat Def (Replaces: WR50X10069) |
|
Immediately | $ 68.13 | ||||
| 268 | WR55X10711 | Sensor Temperature |
|
- | |||||
| 273 | WR17X12303 | Tube Drain Trough |
|
- | |||||
| 610 | WR01F01622 | Motor Evap Dc (Replaces: WR60X10185) |
|
Immediately | $ 69.95 | ||||
| 614 | WR01A00163 | Bumper Lid (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 820 | WR30X10087 | Icemaker Asm |
|
- |
