SELECT A DIAGRAM

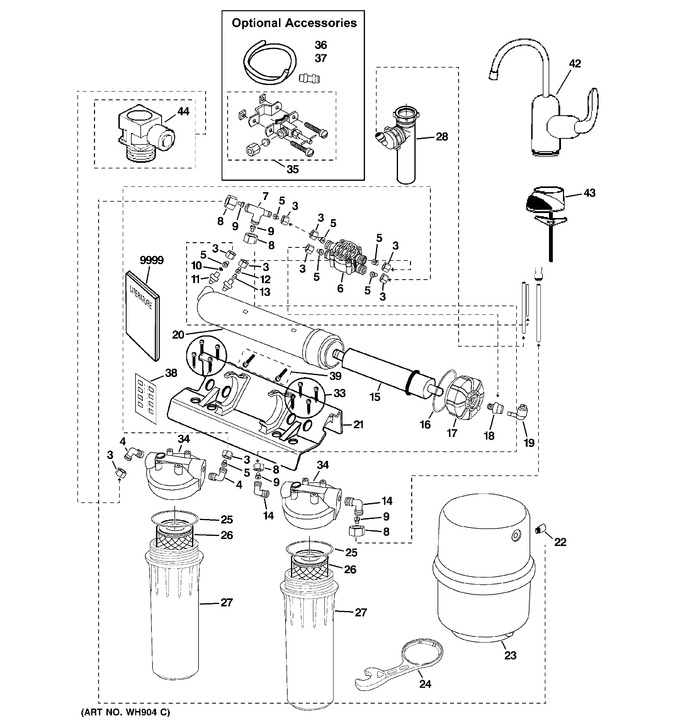

1 - Water Filter


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	WS22X10005		1/4" Nut				$ 10.60
4	WS22X10026		3/8"npt X 1/4" Nut Elbow				$ 16.74
5	WS22X10006		1/4" Tube Insert				$ 10.60
6	WS22X10038		Valve - Auto-shut Off				$ 18.50
7	WS22X10039		1/4x 3/8 X 3/8 Tube Tee		Appelez-nous	-
8	WS22X10008		3/8" Nut				$ 11.78
9	WS22X10007		3/8" Tube Insert				$ 10.23
10	WS22X10040		Check Valve 1/4" Insert				$ 16.42
11	WS22X10041		1/8" Npt X 1/4" Fitting				$ 6.07
12	WS03X10016		Flow Control				$ 9.89
13	WS03X10015		Screen Cone				$ 14.57
14	WS22X10002		3/8"npt X 3/8" Nut Elbow				$ 17.05
15	FX12M		Ro Cartridge			Immediately	$ 113.71
16	WS03X10045		O-ring Ro Membrane Hsng				$ 7.71
17	WS31X10025		Cap - Ro Membrane Hsng				$ 9.00
18	WS22X10042		1/8" Npt X 1/4" Fitting				$ 14.13
19	WS22X10043		Elbow - 1/4" Stem X 1/4"				$ 44.32
20	WS20X10006		Housing - Ro Membrane				$ 18.79
21	WS28X10039		Bracket				$ 25.05
22	WS22X10044		Connector-3/8 X 3/8 Mnpt				$ 19.59
23	WS32X10019		Storage Tank				$ 166.33
24	WX5X140		Canister Wrench				$ 22.16
25	WS03X10038		O-ring-sump Housing			Immediately	$ 8.80
26	FX12P		Pre & Post Filters-2 Ea.				$ 104.33
27	WS20X10007		Sump Housing				$ 50.42
28	WS18X10006		Drain Line Adapter -dla9				$ 94.72
33	WS02X10032		Screws - Bracket		Appelez-nous	-
34	WS31X10026		Housing Head				$ 17.34
35	WS15X10023		Saddle Valve - Supply				$ 50.53
36	WS07X10018		Tubing -1/4" X 33'-white				$ 22.16
37	WS07X10019		Tubing 3/8" X 33' -white				$ 37.89
38	WS01X10013		Nitrate Test Strip		Appelez-nous	-
39	WS02X10033		Mounting Screws		Appelez-nous	-
42	WS15X10070		Faucet Asm, Chrome				$ 84.68
43	WS10X10041		Faucet Base, Chrome				$ 66.35
44	WS60X10016		Inlet Adapter - No Valve				$ 80.28
9999	49-50237		Owners Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
