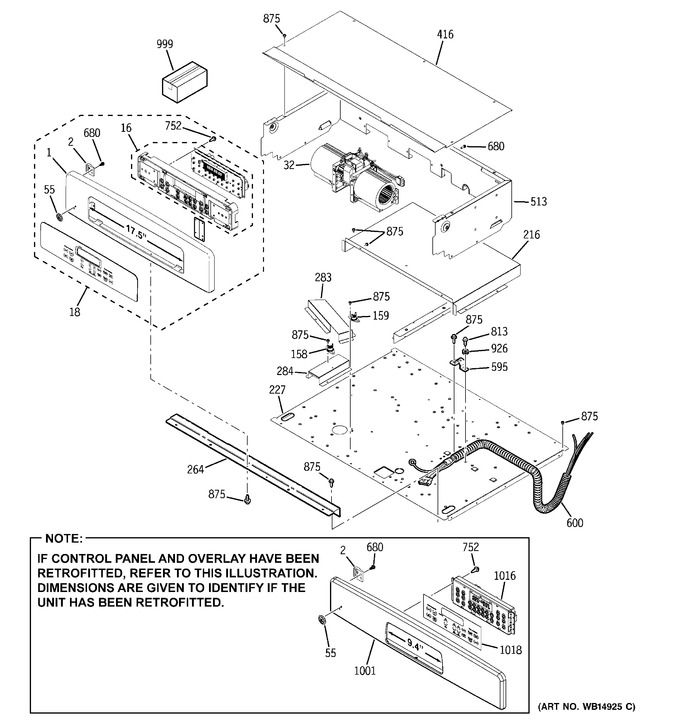

1 - Control Panel


2 - Body Parts


3 - Door


4 - Door Lock


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36T11023		Panel Cntl Asm (30-bk)		Appelez-nous	-
2	WB02T10376		Support Cntl Trm		Appelez-nous	-
16	WB27T10911		Housing Board Asm To11		Appelez-nous	-
18	WB49T10046		Kit Panel Cntl 30 (bk)		Appelez-nous	-
32	WG02F00491		Fan Blower   (Replaces: WB26T10048)			Immediately	$ 153.82
55	WB02T10359		Badge Ge		Appelez-nous	-
158	WG02F01552		Switch Limit Bimetal   (Replaces: WB24T10127)				$ 12.86
159	WG02F00913		Limit Switch-upper(lock)   (Replaces: WB24T10060)			Immediately	$ 12.86
216	WB02T10374		Cover Top Wire		Appelez-nous	-
227	WB02T10378		Retainer Insln Top		Appelez-nous	-
264	WB07T10580		Trim Vent Inner (bk)		Appelez-nous	-
283	WB02T10402		Duct Ovn Exhaust		Appelez-nous	-
284	WB02T10403		Duct Ovn Exhaust		Appelez-nous	-
416	WB02T10396		Cover Fan Housing		Appelez-nous	-
513	WB26T10047		Housing Fan		Appelez-nous	-
595	WB2K5126		Conduit Clamp		Appelez-nous	-
600	WB18T10398		Conduit Wire Asm		Appelez-nous	-
680	WR1X1850		Scr 7-19 Hxw 1/2		Appelez-nous	-
752	WB02T10324		Scr 6-20 Gxb Ihxw 3/8 Ni		Appelez-nous	-
752	WG02A00488		Screw   (Replaces: WB1K5200)				$ 4.20
813	WS01A00445		Screw Ground   (Replaces: WB1X1261)				$ 12.51
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
926	WB1X1260		Ground Washer		Appelez-nous	-
999	31-14756		Manual Mini & Wd Asm		Appelez-nous	-
999	29-5669		Manual Use & Care		Appelez-nous	-
999	31-10662		Instr Install Ovn Door		Appelez-nous	-
999	31-10743		Pm Install Instructions		Appelez-nous	-
999	31-10666		Instruction Install		Appelez-nous	-
999	29-5541		Manual Use & Care		Appelez-nous	-
1001	WB36T11245		Panel And Brkt Asm (bk)		Appelez-nous	-
1016	WG02F04217		Board Housing Asm   (Replaces: WB27T11161)				$ 356.01
1018	WG02L02830		Faceplate   (Replaces: WB27T11239)				$ 37.16
	WG02A00726		Kit Panel Cntl 30 (bk)				$ 10.00
