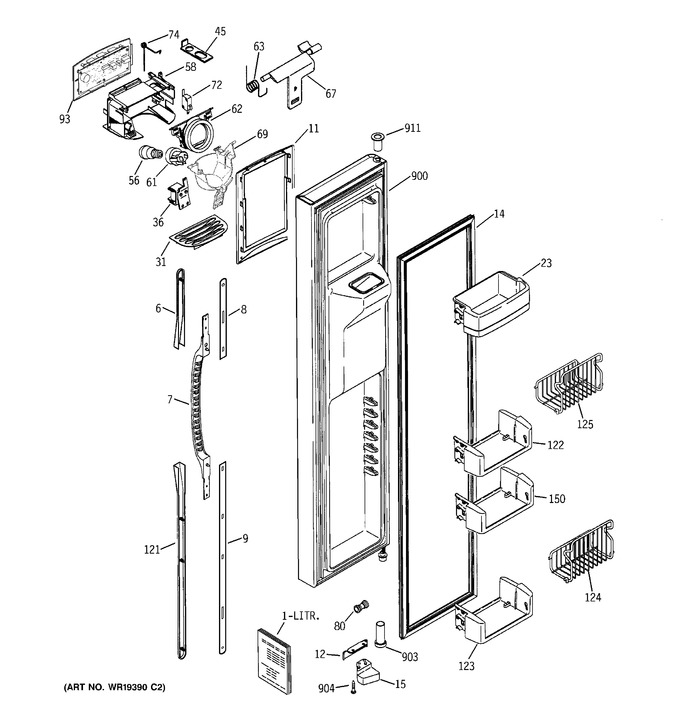

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-60358-1 | Pm Guide Owners |
|
- | |||||
| 1 | 31-46222 | Pm Mini Wiring Manual |
|
- | |||||
| 6 | WR12X10151 | Tail Handle Sxs Bk |
|
- | |||||
| 6 | WR12X10163 | Tail Handle Sxs Wh |
|
- | |||||
| 7 | WR12X10784 | Handle Sxs Asm |
|
- | |||||
| 7 | WR12X10332 | Handle Sxs Wh |
|
- | |||||
| 8 | WR12X10150 | Trim Handle Sxs |
|
- | |||||
| 9 | WR12X10190 | Trim Handle Sxs |
|
- | |||||
| 11 | WR38X10227 | Recess Trim Clad Mdel Wh |
|
- | |||||
| 11 | WR38X10237 | Recess Trim Clad Mdel Bk |
|
- | |||||
| 12 | WR01A00225 | Stop Door Bk (Replaces: WR02X10814) |
|
$ 12.40 | |||||
| 12 | WR02X10649 | Stop Door Wh |
|
- | |||||
| 14 | WR24X10072 | Gasket Door Fz Bk |
|
- | |||||
| 14 | WR01L02185 | Gasket Door Fz Wh (Replaces: WR24X10156) |
|
$ 62.92 | |||||
| 15 | WR02X10780 | Cam Closure Fz Bk |
|
- | |||||
| 15 | WR02X10638 | Cam Closure Fz Wh |
|
- | |||||
| 23 | WR71X10355 | Module Shelf Fz Fixed |
|
- | |||||
| 31 | WR17X10895 | Grille Recess Bk |
|
- | |||||
| 31 | WR17X11654 | Grille Recess Wh |
|
- | |||||
| 36 | WR01F01784 | Solenoid Asm (Replaces: WR62X10055) |
|
$ 80.09 | |||||
| 45 | WR2X8818 | Retainer Recess Door |
|
- | |||||
| 56 | WG03A03944 | Light Dispenser (Replaces: WR02X12208) |
|
Immediately | $ 60.67 | ||||
| 58 | WR17X12116 | Housing Shield Disp |
|
- | |||||
| 58 | WR17X12117 | Housing Shield Disp |
|
- | |||||
| 61 | WR02X12007 | Socket Lamp |
|
- | |||||
| 62 | WR01L01914 | Door Recess Asm (Replaces: WR17X11653) |
|
$ 58.69 | |||||
| 63 | WG03A00047 | Spring Recess Door (Replaces: WR02X10585) |
|
Immediately | $ 3.57 | ||||
| 67 | WR01L00935 | Crank Door Recess (Replaces: WR17X10706) |
|
$ 11.44 | |||||
| 69 | WR17X12084 | Funnel Ice Disp |
|
- | |||||
| 69 | WR17X12137 | Funnel Ice Disp |
|
- | |||||
| 72 | WR01F03637 | Switch (Replaces: WR23X10224) |
|
Immediately | $ 15.72 | ||||
| 74 | WR02X10584 | Spring Funnel |
|
- | |||||
| 80 | WR01F02845 | Union Connector Reg (Replaces: WR02X11330) |
|
Immediately | $ 17.15 | ||||
| 93 | WR55X10618 | Interface Disp Asm |
|
- | |||||
| 93 | WR55X10609 | Interface Disp Asm |
|
- | |||||
| 121 | WR12X10219 | Tail Handle Sxs Wh |
|
- | |||||
| 121 | WR12X10192 | Tail Handle Sxs Bk |
|
- | |||||
| 122 | WR71X10256 | Module Support Fz |
|
- | |||||
| 122 | WR71X10359 | Module Support Fz |
|
- | |||||
| 123 | WR71X10358 | Module Support Fz |
|
- | |||||
| 124 | WR21X10111 | Basket Wire Tiltout Fz |
|
- | |||||
| 125 | WR21X10110 | Basket Wire Tiltout Fz |
|
- | |||||
| 900 | WR78X11740 | Door Asm Fz Kit Bk |
|
- | |||||
| 900 | WR78X11741 | Door Asm Fz Kit Wh |
|
- | |||||
| 903 | WR01X10208 | Thimble Door Btm Fz Wh |
|
- | |||||
| 903 | WR01X10234 | Thimble Door Btm Fz Bk |
|
- | |||||
| 904 | WR01X10582 | Scr 10-16 |
|
- | |||||
| 911 | WR01X10207 | Thimble Door Top Wh |
|
- | |||||
| 911 | WR01X10233 | Thimble Door Top Bk |
|
- |
