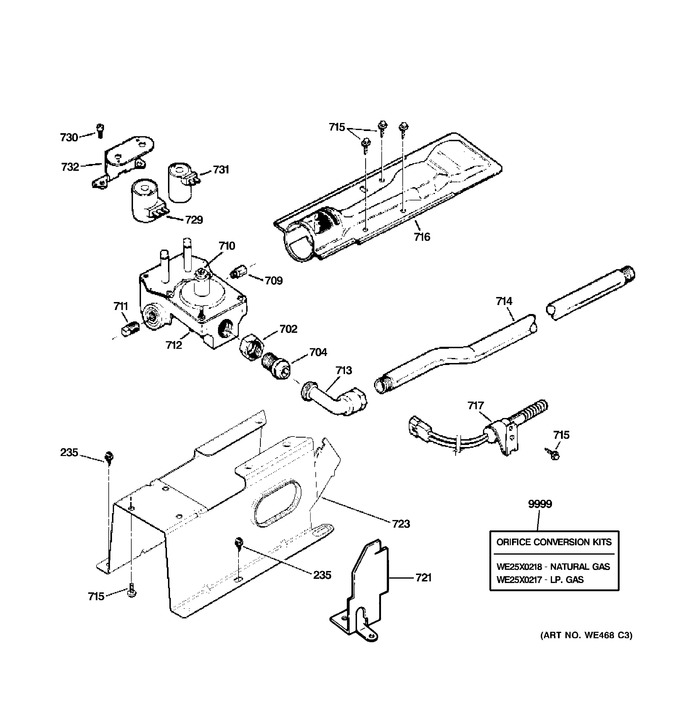

1 - Control Panel & Coin Box Assembly
2 - Front Panel & Door
3 - Cabinet
4 - Drum
5 - Blower & Drive Assembly
6 - Gas Valve & Burner Assembly
7 - Timer Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 235 | WW01A00521 | Screw (Replaces: WE1M280) |
|
$ 3.57 | |||||
| 702 | WE2X319 | Nut |
|
- | |||||
| 704 | WE2X396 | Nipple, Shutoff Valve |
|
- | |||||
| 709 | WE1X1148 | Orifice |
|
- | |||||
| 710 | WE1X1076 | Leak Limiter |
|
- | |||||
| 711 | 1/8-27 NPT | Plug Pipe (not Stocked) |
|
- | |||||
| 712 | WW02F00099 | Gas Valve Asm (Replaces: WE14X215) |
|
Immediately | $ 154.50 | ||||
| 713 | WW02F00099 | Valve Asm. Shutoff (Replaces: WE14X215) |
|
Immediately | $ 154.50 | ||||
| 714 | WE1M512 | Pipe & Lug Asm. |
|
- | |||||
| 715 | WE2M209 | Screw # 10 |
|
- | |||||
| 716 | WE14M104 | Burner Asm. |
|
$ 255.39 | |||||
| 717 | WW02F00740 | Igniter Asm (Replaces: WE4X739) |
|
Immediately | $ 83.05 | ||||
| 721 | WE13X118 | Bracket Spacer |
|
- | |||||
| 723 | WE13X195 | Bracket Gas Valve |
|
- | |||||
| 729 | 279834 | Coil Dual (Replaces: WE4X692) |
|
Immediately | $ 29.57 | ||||
| 730 | WE2X333 | Screw (coil Mtg Brkt) |
|
- | |||||
| 731 | 58804AB | Coil Main (Replaces: WE4X693) |
|
- | |||||
| 732 | WE13X169 | Brkt. Coil |
|
- | |||||
| 9999 | WG04A00110 | Kit Lp Gas Orifice Conv (Replaces: WE25X217) |
|
Immediately | $ 87.78 | ||||
| 9999 | WE25X218 | Kit Nat Gas Orifice Conv |
|
- |
