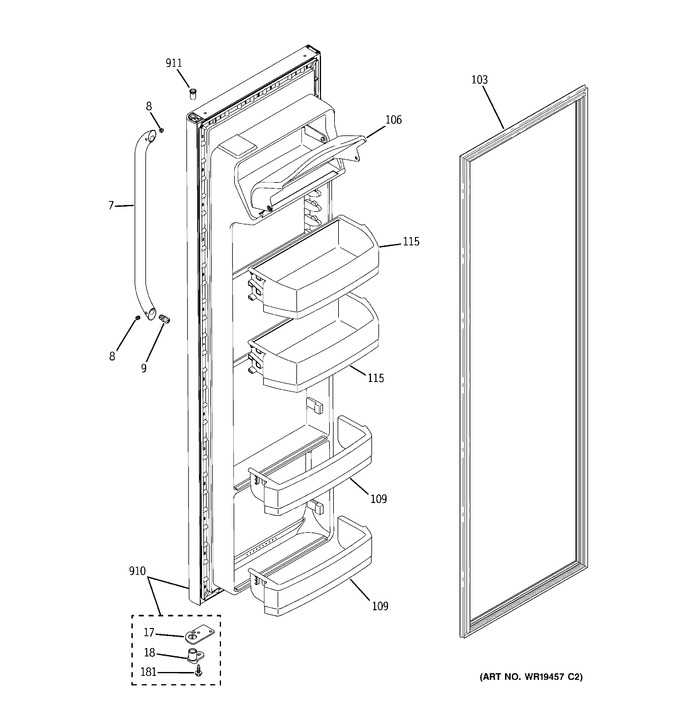

SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Sealed System & Mother Board


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WR12X10688		Handle W/set Screw Asm		Appelez-nous	-
8	WR01A01440		Set Screw   (Replaces: WR01X10450)				$ 9.53
9	WR02X12800		Fastener Handle Ss		Appelez-nous	-
17	WR02X11465		Plate Door Stop Ff		Appelez-nous	-
18	WG03L01095		Cam & Thimble Fz   (Replaces: WR02X11479)				$ 6.09
103	WR24X10132		Gasket D00r Ff		Appelez-nous	-
106	WR01L14045		Door Dairy   (Replaces: WR22X10012)				$ 22.93
109	WR17X12187		Shelf Module Fixed Ff		Appelez-nous	-
115	WR71X10722		Shelf Module Ff		Appelez-nous	-
181	WR01X10655		Scr 10-32 F Hxw 3/4 S		Appelez-nous	-
910	WR78X11095		Door Asm Ff Ss		Appelez-nous	-
911	WR01X10201		Thimble Top Closed		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
