Diagram # Part Number Description Series Availability Ships Price Add to Cart
1000 WR99X10131 Side Clad Bf 21 Rh Appelez-nous -
1010 WR99X10132 Side Clad Bf 21 Lh Appelez-nous -
WG04A00766 Inverter W/jumpers Kit In-Stock Immediately $ 554.11

WG03A03157 Drier Filter Asm   (Replaces: WG03F00245) In-Stock Immediately $ 153.40

WG03F00154 Compressor Repl Kit (charged) Special Order $ 1,117.00


    View Diagram in Separate Window     Print Icon   Print Part List

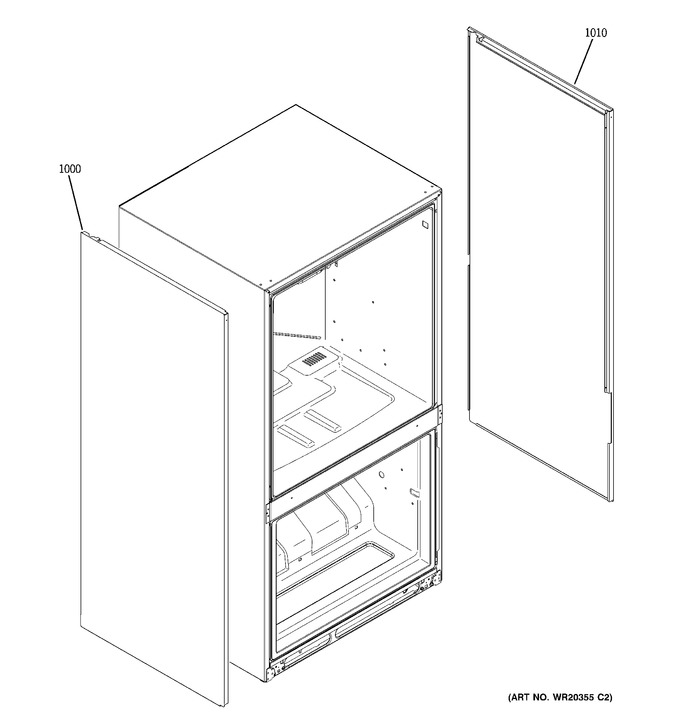

Diagram for CFCP1NIXBSS
