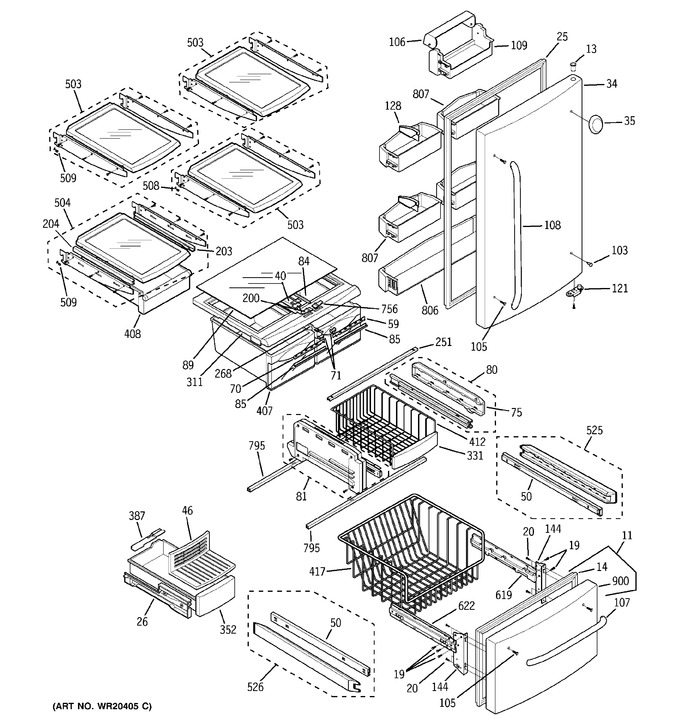

1 - Doors & Shelves
2 - Cabinet
3 - Water System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | WR78X12101 | Door Asm Fz |
|
- | |||||
| 13 | WR01X10493 | Cvr Asm Hinge L W/s Bk |
|
- | |||||
| 14 | WR14X10177 | Gasket Asm Fz Bk |
|
- | |||||
| 19 | WR01X10637 | Screw Drawing |
|
- | |||||
| 20 | WR01X10760 | Screw Customized |
|
- | |||||
| 25 | WR02X11691 | Gasket Asm Ff |
|
- | |||||
| 26 | WR17X11585 | Guide Rail(ice)bin |
|
- | |||||
| 34 | WR78X12100 | Door Foam Asm, Ff |
|
- | |||||
| 35 | WR04X10139 | Name Plate |
|
- | |||||
| 40 | WR02X11684 | Guide Rail(middle T/v) |
|
- | |||||
| 46 | WR30X10050 | Shelf Ice Tray |
|
- | |||||
| 50 | WR17X11931 | Rail Asm |
|
- | |||||
| 59 | WR02X11674 | Link,humidity Right |
|
- | |||||
| 70 | WR02X11673 | Link,humidity Left |
|
- | |||||
| 71 | WR02X11701 | Rail Slide Center |
|
- | |||||
| 75 | WR02X12270 | Guide Asm Rail |
|
- | |||||
| 80 | WR17X12421 | Guide Asm Rail |
|
- | |||||
| 81 | WR17X12422 | Guide Asm Rail |
|
- | |||||
| 84 | WR01L07648 | Middle Gasket (Replaces: WR14X10176) |
|
$ 40.23 | |||||
| 85 | WG03L01302 | Front Gasket (Replaces: WR14X10175) |
|
$ 44.06 | |||||
| 89 | WR32X10465 | Glass Cover Veg Pan |
|
- | |||||
| 103 | WG03F02249 | Plug Button Gray (Replaces: WR02X12041) |
|
$ 6.30 | |||||
| 105 | WG03L01090 | Bolt Door Handle (Replaces: WR01X10485) |
|
$ 9.25 | |||||
| 106 | WR02X11665 | Dairy Door Cvr |
|
- | |||||
| 107 | WR12X10880 | Handle,f |
|
- | |||||
| 108 | WR12X10881 | Handle Ff |
|
- | |||||
| 109 | WR71X10536 | Dairy Bin |
|
- | |||||
| 121 | WG03L01237 | Stopper Door Bk (Replaces: WR02X11675) |
|
$ 30.18 | |||||
| 128 | WG03L01630 | Snugger (Replaces: WR02X11680) |
|
$ 17.01 | |||||
| 144 | WR02X11687 | Connector Door |
|
- | |||||
| 200 | WG03F00983 | Shutter Slide (Replaces: WR02X11689) |
|
$ 12.40 | |||||
| 203 | WR17X12423 | Guide Asm Rail |
|
- | |||||
| 204 | WR02X12037 | Guide Rail-r |
|
- | |||||
| 251 | WR02X11703 | Supportor Cover T/v |
|
- | |||||
| 268 | WG03L01071 | Adjuster (Replaces: WR02X11671) |
|
$ 21.63 | |||||
| 311 | WR72X10154 | Frame Lower Pan |
|
- | |||||
| 331 | WR12X10657 | Fzr Bskt Upper Handle |
|
- | |||||
| 352 | WR30X10052 | Ice Bin |
|
- | |||||
| 387 | WR02X11662 | Cover Ice Bin |
|
- | |||||
| 407 | WR32X10471 | Veg Pan |
|
- | |||||
| 408 | WR32X10472 | Snack Pan |
|
- | |||||
| 412 | WR21X10080 | Fzr Bskt - Upper |
|
- | |||||
| 417 | WR21X10078 | Fzr Bskt Lower |
|
- | |||||
| 503 | WR71X10570 | Shelf Assembly |
|
- | |||||
| 504 | WR71X10571 | Shelf Assembly |
|
- | |||||
| 508 | WG03L01586 | Shelf Stopper (Replaces: WR02X12053) |
|
$ 6.09 | |||||
| 509 | WG03L01139 | Cover Stopper (Replaces: WR02X12054) |
|
$ 6.09 | |||||
| 525 | WR17X12413 | Rail Asm Rh |
|
- | |||||
| 526 | WR17X12414 | Rail Asm Lh |
|
- | |||||
| 619 | WR17X12411 | Connector Asm Right |
|
- | |||||
| 622 | WR17X12412 | Connector Asm Left |
|
- | |||||
| 756 | WG03F00562 | Shutter Slide (Replaces: WR02X11688) |
|
$ 12.40 | |||||
| 795 | WR30X10051 | Supportor Divider |
|
- | |||||
| 806 | WR71X10557 | Door Bin |
|
- | |||||
| 807 | WR71X10606 | Door Bin |
|
- |
