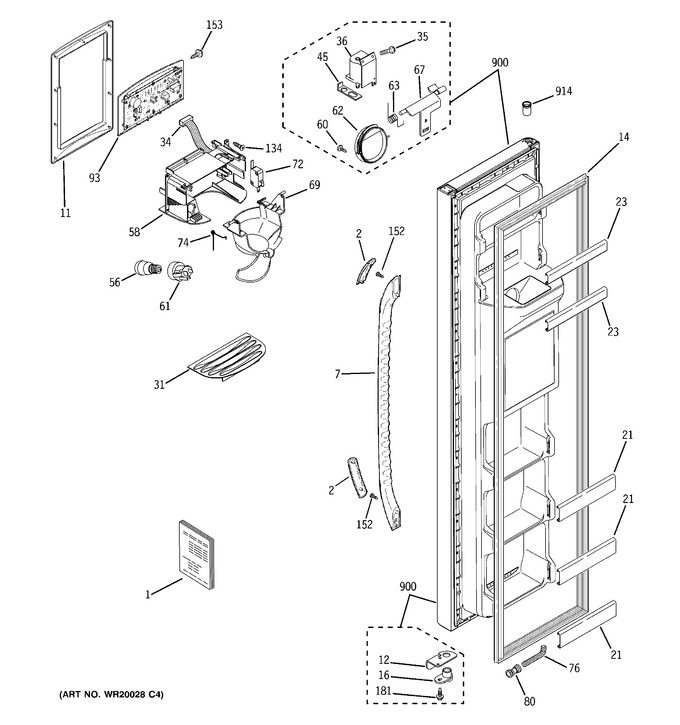

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-61716 | Pm Mini Manual Wiring |
|
- | |||||
| 1 | 49-60514 | Pm Guide Owners |
|
- | |||||
| 2 | WR01L00575 | Cap Handle (Replaces: WR12X10816) |
|
$ 9.25 | |||||
| 2 | WR12X10818 | Cap Handle |
|
- | |||||
| 2 | WR12X10817 | Cap Handle |
|
- | |||||
| 7 | WR12X10814 | Handle Sxs Door Bb |
|
- | |||||
| 7 | WR12X10813 | Handle Sxs Door Ww |
|
- | |||||
| 7 | WR12X10815 | Handle Sxs Door Bq |
|
- | |||||
| 11 | WR38X10300 | Recess Trim Bq |
|
- | |||||
| 11 | WR38X10302 | Recess Trim Bk |
|
- | |||||
| 11 | WR38X10301 | Recess Trim Wh |
|
- | |||||
| 12 | WR02X10576 | Plate Door Stop Fz |
|
- | |||||
| 12 | WR02X11466 | Plate Door Stop Fz |
|
- | |||||
| 12 | WR02X11475 | Plate Door Stop Fz |
|
- | |||||
| 14 | WR24X10133 | Gasket D00r Fz |
|
- | |||||
| 14 | WR24X10129 | Gasket Door Fz |
|
- | |||||
| 16 | WG03L01097 | Cam & Thimble Fz (Replaces: WR02X11478) |
|
$ 7.20 | |||||
| 21 | WR17X12065 | Front Door Shelf Fz |
|
- | |||||
| 23 | WR17X12071 | Front Door Shelf Fz |
|
- | |||||
| 31 | WR17X10745 | Grill Recess Bk |
|
- | |||||
| 31 | WR17X10751 | Grill Recess Bq |
|
- | |||||
| 31 | WR17X10712 | Grill Recess Wh |
|
- | |||||
| 34 | WR23X10525 | Harness Recess Disp |
|
- | |||||
| 35 | WR01X10649 | Scr 8-10 Pl Pnp 1/2 S |
|
- | |||||
| 36 | WR01F01784 | Solenoid Asm (Replaces: WR62X10055) |
|
$ 88.99 | |||||
| 45 | WR2X8818 | Retainer Recess Door |
|
- | |||||
| 56 | WG03A03944 | Light Dispenser (Replaces: WR02X12208) |
|
Immediately | $ 67.41 | ||||
| 58 | WG03F00341 | Housing Shield Disp (Replaces: WR17X12152) |
|
$ 18.59 | |||||
| 60 | WR01X10656 | Scr 4-10 Pl Pnp 5/16 S5h |
|
- | |||||
| 61 | WR2X9561 | Lamp Socket |
|
- | |||||
| 62 | WR01L01914 | Door Recess Asm (Replaces: WR17X11653) |
|
$ 65.21 | |||||
| 63 | WG03A00047 | Spring Recess Door (Replaces: WR02X10585) |
|
Immediately | $ 3.97 | ||||
| 67 | WR01L00935 | Crank Door Recess (Replaces: WR17X10706) |
|
$ 12.71 | |||||
| 69 | WR17X11269 | Funnel Ice Disp Bq |
|
- | |||||
| 69 | WR17X11264 | Funnel Ice Disp Wh |
|
- | |||||
| 69 | WG03F00291 | Funnel Ice Disp Bk (Replaces: WR17X11267) |
|
$ 63.62 | |||||
| 72 | WR01F03637 | Switch (Replaces: WR23X10224) |
|
Immediately | $ 17.47 | ||||
| 74 | WR02X10584 | Spring Funnel |
|
- | |||||
| 76 | WR2X8933 | Sleeve Water Line |
|
- | |||||
| 80 | WR01F02845 | Union Connector Reg (Replaces: WR02X11330) |
|
Immediately | $ 19.06 | ||||
| 93 | WR55X10563 | Combined Hmi Asm Bq |
|
- | |||||
| 93 | WR55X10561 | Combined Hmi Asm Wh |
|
- | |||||
| 93 | WG03F07687 | Combined Hmi Asm Wh (Replaces: WR55X10562) |
|
$ 320.17 | |||||
| 134 | WR01X10616 | Scr 6-10 Pl Flp 1/2 S |
|
- | |||||
| 152 | WR01X10596 | Scr 8-18 Ab Fltr 5/8 S |
|
- | |||||
| 153 | WR01X10597 | Scr 6-20 B Fhp 3/8 S |
|
- | |||||
| 153 | WR1X1505 | Screw |
|
- | |||||
| 181 | WR01X10655 | Scr 10-32 F Hxw 3/4 S |
|
- | |||||
| 900 | WR78X11646 | Door Asm Foam Fz Wh |
|
- | |||||
| 900 | WR78X11708 | Door Asm Foam Fz Bk |
|
- | |||||
| 900 | WR78X11710 | Door Asm Foam Fz Bq |
|
- | |||||
| 914 | WR01X10200 | Thimble Door Top |
|
- |
