1 - Doors & Shelves

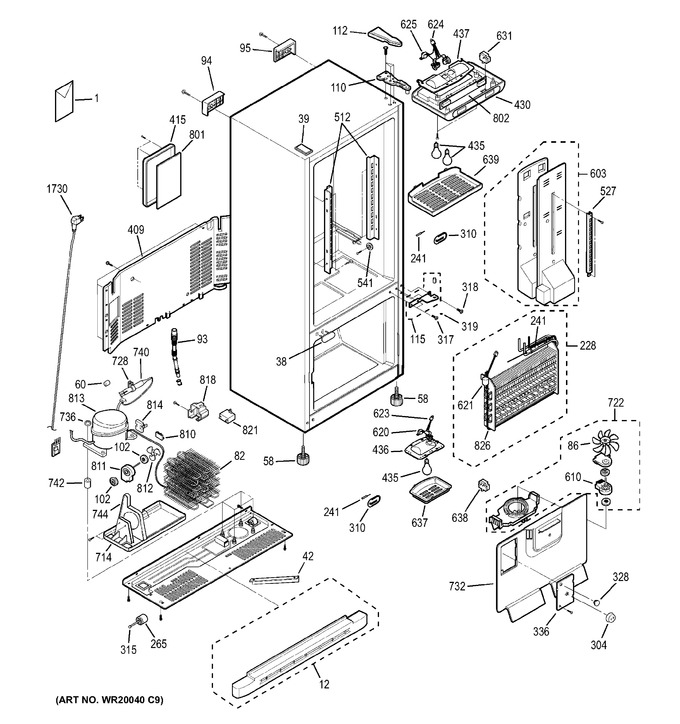

2 - Cabinet
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-51728 | Mini Manual |
|
- | |||||
| 1 | 40-60503 | Pm Guide Owners |
|
- | |||||
| 12 | WR74X10204 | Cvr Asm Lower Bsq |
|
- | |||||
| 38 | WR02X11716 | Cap,hinge(c) |
|
- | |||||
| 39 | WR02X11715 | Cap,hinge(u) |
|
- | |||||
| 42 | WR02X12064 | Skirt,lower |
|
- | |||||
| 58 | WR02X12262 | Levelling Leg |
|
- | |||||
| 60 | 4J04328A | Rubber-q |
|
- | |||||
| 82 | WR84X10057 | Condenser Assembly |
|
- | |||||
| 93 | WR02X11697 | Drain Tube |
|
- | |||||
| 95 | WR02X12143 | Support Cab Right Cc |
|
- | |||||
| 102 | WR02X11694 | Grommet - Rubber |
|
- | |||||
| 110 | WR13X10303 | Hinge Assembly,u |
|
- | |||||
| 112 | WR02X11717 | Cover,hinge(u) |
|
- | |||||
| 115 | WR13X10356 | Hinge/pin Asm Bq Center |
|
- | |||||
| 228 | WR85X10057 | Evaporator Ass'y |
|
- | |||||
| 241 | WR01F01730 | Sensor Temp Ff (Replaces: WR55X10025) |
|
Immediately | $ 16.29 | ||||
| 265 | WG03A00414 | Roller (Replaces: WR02X11698) |
|
$ 24.78 | |||||
| 304 | WR02X11318 | Cover,connector |
|
- | |||||
| 310 | WR02X11664 | Cover,sensor |
|
- | |||||
| 315 | 4J04238A | Roller Pin |
|
Immediately | $ 6.11 | ||||
| 317 | WG03A00517 | Screw Hinge Center Bk (Replaces: WR01X10476) |
|
$ 10.54 | |||||
| 318 | WR01X10477 | Screw Hinge Center Bk |
|
- | |||||
| 319 | WR01X10786 | Washer |
|
- | |||||
| 328 | WR02X11668 | Cover,tube |
|
- | |||||
| 336 | WR02X11669 | Cover,grille Fan |
|
- | |||||
| 415 | WR02X12269 | Cover Pwb |
|
- | |||||
| 430 | WR17X11610 | Case,display |
|
- | |||||
| 435 | 60A | 60a - 2bulbs |
|
- | |||||
| 436 | WR02X11656 | Reflector,lamp(fz) |
|
- | |||||
| 437 | WR02X11657 | Reflector,lamp(ff) |
|
- | |||||
| 512 | WR72X10151 | Holder,shelf R/l |
|
- | |||||
| 527 | WR71X10541 | Holder,shelf C |
|
- | |||||
| 541 | WG03L01667 | Veg Pan Frt Support (Replaces: WR02X11683) |
|
$ 9.25 | |||||
| 603 | WR09X10115 | Damper Ass'y |
|
- | |||||
| 610 | WR01F02490 | Motor Asm Ref Fan (Replaces: WR60X10196) |
|
Immediately | $ 161.50 | ||||
| 620 | WR50X10044 | Thermostat-bi-metal |
|
- | |||||
| 621 | WR50X10047 | Thermodisc(fuse-m) |
|
- | |||||
| 623 | WR02X11699 | Socket Assembly,lamp(f) |
|
- | |||||
| 624 | WR02X11700 | Socket Assembly,lamp(r) |
|
- | |||||
| 638 | WG03F05844 | Switch Light Ff (Replaces: WR23X10342) |
|
Immediately | $ 65.21 | ||||
| 639 | WR02X11658 | Cover Lamp Fz |
|
- | |||||
| 639 | WG03F05844 | Switch Light Fz (Replaces: WR23X10341) |
|
Immediately | $ 65.21 | ||||
| 639 | WR02X11661 | Cover Lamp Ff |
|
- | |||||
| 714 | WR30X10048 | Tray Drip |
|
- | |||||
| 722 | WR01F02490 | Evap Fan Motor Ass'y (Replaces: WR60X10146) |
|
Immediately | $ 161.50 | ||||
| 728 | WR02X11702 | Holder,drier |
|
- | |||||
| 732 | WG03L01285 | Evap Fan Cvr Ass'y (Replaces: WR17X11594) |
|
$ 123.85 | |||||
| 736 | WR02X11306 | Stopper,comp |
|
- | |||||
| 740 | WG03A03157 | P/s Dryer Kit R134a (Replaces: WR86X96) |
|
Immediately | $ 153.40 | ||||
| 742 | WR02X11787 | Rubber Grommet |
|
- | |||||
| 744 | WR17X11583 | Guide,fan |
|
- | |||||
| 801 | WR01F00173 | Board Asm Main Control (Replaces: WR55X10416) |
|
Immediately | $ 272.87 | ||||
| 802 | WR55X10095 | Board Assy Encoder |
|
- | |||||
| 810 | WR07X10110 | O.l.p |
|
- | |||||
| 811 | WR08X10092 | P.t.c |
|
- | |||||
| 812 | WG03F00276 | Fan Condenser Ass'y (Replaces: WR60X10148) |
|
$ 41.29 | |||||
| 812 | WG03F00168 | Condenser Fan Motor (Replaces: WR84X10055) |
|
Immediately | $ 171.70 | ||||
| 818 | WR02X11786 | Cover Ptc |
|
- | |||||
| 821 | WR62X10040 | Capacitor |
|
- | |||||
| 826 | WR50X10042 | Defrost Heater |
|
- | |||||
| 1730 | WG03F00911 | Power Cord (Replaces: WR23X10300) |
|
$ 85.41 |
