SELECT A DIAGRAM

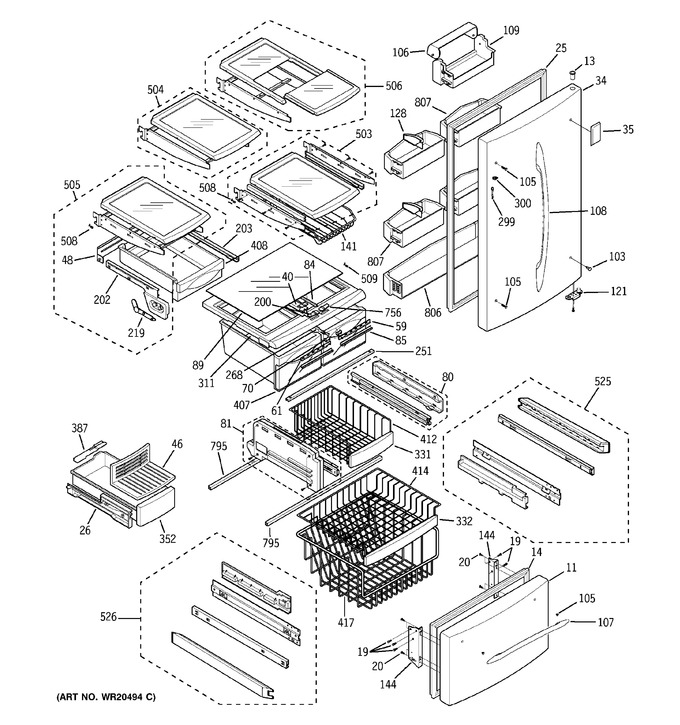

1 - Doors & Shelves
2 - Cabinet
3 - Water System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | WR78X11353 | Door Asm Fz Ss |
|
- | |||||
| 13 | WR01X10493 | Bush |
|
- | |||||
| 14 | WR14X10179 | Gasket Asm,fz |
|
- | |||||
| 19 | WR01X10637 | Screw Drawing |
|
- | |||||
| 20 | WR01X10638 | Screw Drawing |
|
- | |||||
| 25 | WR14X10180 | Gasket Asm,ff |
|
- | |||||
| 26 | WR17X11585 | Guide Rail(ice)bin |
|
- | |||||
| 34 | WR78X11388 | Door Asm, Ff Ss |
|
- | |||||
| 34 | WR78X11390 | Door Asm, Ff Ss |
|
- | |||||
| 35 | WR04X10138 | Name Plate |
|
- | |||||
| 40 | WR02X11684 | Guide Rail(middle T/v) |
|
- | |||||
| 46 | WR30X10050 | Shelf Ice Tray |
|
- | |||||
| 48 | WR17X11604 | Guide Air |
|
- | |||||
| 61 | WR02X11674 | Link,humidity Right |
|
- | |||||
| 70 | WR02X11701 | Rail Slide Center |
|
- | |||||
| 80 | WR17X12421 | Rail Slide Asm (rh-fz) |
|
- | |||||
| 81 | WR17X12422 | Rail Slide Asm (lh-fz) |
|
- | |||||
| 84 | WR01L07648 | Middle Gasket (Replaces: WR14X10176) |
|
$ 40.23 | |||||
| 85 | WR14X10178 | Front Gasket |
|
- | |||||
| 89 | WR32X10468 | Glass Cover Veg Pan |
|
- | |||||
| 103 | WR02X11752 | Plug Button - Black |
|
- | |||||
| 105 | WG03L01090 | Bolt Door Handle (Replaces: WR01X10485) |
|
$ 9.25 | |||||
| 106 | WG03L01159 | Dairy Door Cvr (Replaces: WR02X11706) |
|
$ 62.33 | |||||
| 107 | WR12X10853 | Handle Asm Fz Bk |
|
- | |||||
| 108 | WR12X10854 | Handle Asm Ff Bk |
|
- | |||||
| 109 | WR71X10549 | Dairy Bin |
|
- | |||||
| 121 | WG03L01237 | Stopper Door Bk (Replaces: WR02X11675) |
|
$ 30.18 | |||||
| 128 | WG03L01630 | Snugger (Replaces: WR02X11680) |
|
$ 17.01 | |||||
| 141 | WR21X10085 | Can Dispenser |
|
- | |||||
| 144 | WR02X11687 | Connector Door |
|
- | |||||
| 200 | WG03F00983 | Shutter Slide (Replaces: WR02X11689) |
|
$ 12.40 | |||||
| 202 | WG03L01374 | Guide Asm,rail (Replaces: WR72X10148) |
|
$ 80.53 | |||||
| 203 | WR02X11685 | Guide, Rail |
|
- | |||||
| 219 | WR02X11672 | Lever Shutter |
|
- | |||||
| 251 | WR02X11707 | Supportor Cover T/v |
|
- | |||||
| 268 | WG03L01071 | Adjuster (Replaces: WR02X11671) |
|
$ 21.63 | |||||
| 299 | WR02X12384 | Clip |
|
- | |||||
| 300 | WR02X12423 | Stopper Handle Ff |
|
- | |||||
| 311 | WR72X10152 | Frame Lower Pan |
|
- | |||||
| 331 | WR12X10659 | Fz Bskt Upper Handle |
|
- | |||||
| 332 | WR12X10660 | Fz Bskt W/trim |
|
- | |||||
| 352 | WR30X10052 | Ice Bin |
|
- | |||||
| 387 | WR02X11662 | Cover Ice Bin |
|
- | |||||
| 407 | WR32X10466 | Veg Pan |
|
- | |||||
| 408 | WR32X10467 | Meat Pan |
|
- | |||||
| 412 | WR21X10084 | Fz Bskt Upper |
|
- | |||||
| 414 | WR21X10083 | Fz Bskt Ctr |
|
- | |||||
| 417 | WR21X10082 | Fz Bskt |
|
- | |||||
| 503 | WR71X10567 | Shelf Asm |
|
- | |||||
| 504 | WR71X10568 | Shelf Asm |
|
- | |||||
| 505 | WR71X10569 | Shelf Asm |
|
- | |||||
| 506 | WR71X10566 | Shelf Asm Folding |
|
- | |||||
| 508 | WG03L01586 | Shelf Stopper (Replaces: WR02X12053) |
|
$ 6.09 | |||||
| 509 | WG03L01139 | Cover Stopper (Replaces: WR02X12054) |
|
$ 6.09 | |||||
| 525 | WR17X12413 | Rail Asm Rh |
|
- | |||||
| 526 | WR17X12414 | Rail Asm Lh |
|
- | |||||
| 756 | WG03F00562 | Shutter Slide (Replaces: WR02X11688) |
|
$ 12.40 | |||||
| 795 | WR30X10053 | Supportor Divider |
|
- | |||||
| 806 | WR17X11605 | Door Bin |
|
- | |||||
| 807 | WR17X11606 | Door Bin |
|
- |
