SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves

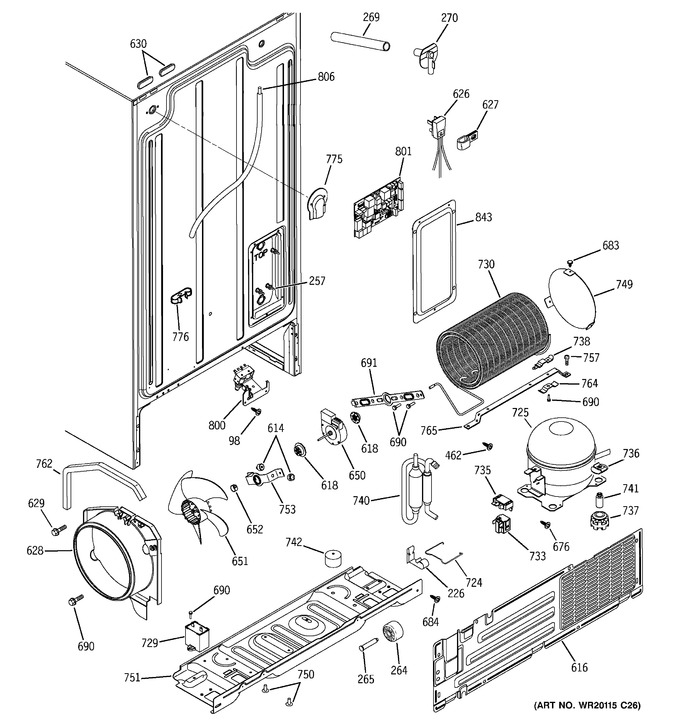

8 - Sealed System & Mother Board


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
98	WR01X10646		Scr 8-36 T Ihw 3/8 S N		Appelez-nous	-
226	WR02X10558		Clip Drain Tube		Appelez-nous	-
257	WR02X12209		Fastener Board		Appelez-nous	-
264	WR02X12765		Wheel Mobility		Appelez-nous	-
265	WR01X10826		Axle Wheel		Appelez-nous	-
269	WR02X10960		Tube Im Fill		Appelez-nous	-
270	WR02X10564		Grommet Water Fill		Appelez-nous	-
462	WR01X10651		Scr 8-18 Ab Hxw 1/2 S		Appelez-nous	-
614	WR01A00163		Bumper Lid   (Replaces: WR02X10540)			Immediately	$ 6.35
616	WR01L00714		Cover Access   (Replaces: WR82X10109)				$ 119.45
618	WR01A00315		Grommet Cond Fan   (Replaces: WR02X10520)				$ 4.17
626	WG03F00911		Cord Power Asm   (Replaces: WR23X10300)				$ 85.41
627	WR1X5278		Clamp Cable		Appelez-nous	-
628	WR17X12454		Shroud Condenser		Appelez-nous	-
629	WR01X10653		Scr 8-18 B 1hw 1/2 Sn		Appelez-nous	-
630	WR2X8525		Plug Button Bk		Appelez-nous	-
650	WR60X10216		Motor Dc Cond Fan		Appelez-nous	-
651	WR01F02003		Blade Conf Fan Asm   (Replaces: WR60X10206)				$ 11.51
652	WG03F01616		Ring Compression   (Replaces: WR02X12149)				$ 3.97
676	WZ04X0263		Scr 10-16 Ab Hxw 1/2		Appelez-nous	-
683	WR02X10562		Fastener Push		Appelez-nous	-
684	WR01X10602		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-
684	WR01X10635		Scr 8-32 Ca Ihxw .625 S		Appelez-nous	-
690	WR01X10645		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
691	WR02X10593		Bracket Cond Fan (rear)		Appelez-nous	-
724	WR02X10556		Cover Relay Snap(mei)		Appelez-nous	-
725	WR87X10067		Compressor Mei		Appelez-nous	-
729	WR01F02043		Capacitor   (Replaces: WR62X79)			Immediately	$ 17.17
730	WR01F02892		Cond Repl Asm   (Replaces: WR84X10022)				$ 403.54
733	WG03F01423		Relay Start   (Replaces: WR07X10084)				$ 76.29
735	WR01F01770		Overload   (Replaces: WR08X10025)			Immediately	$ 46.05
736	WR2X8203		Clip Compressor Mount		Appelez-nous	-
737	WR01F00846		Grommet   (Replaces: WR02X10099)				$ 7.15
738	WR2X7064		Clip Cond Loop		Appelez-nous	-
740	WG03A03157		Dryer   (Replaces: WR86X96)			Immediately	$ 153.40
741	WR1X1779		Stud Mtg Compr		Appelez-nous	-
742	WR02X10587		Support Condenser		Appelez-nous	-
749	WR17X10694		Baffle Cond Air		Appelez-nous	-
750	WR1X1786		Screw 10-32 Tr 1/2		Appelez-nous	-
751	WR17X11427		Baseplate High Side		Appelez-nous	-
753	WR02X10521		Brkt Cond Fan (mtg)		Appelez-nous	-
757	WR01X10654		Scr 10-32 Tt Hxw 5/16 S		Appelez-nous	-
762	WR14X10053		Foam Strip Se Adh		Appelez-nous	-
764	WR2X9000		Clip, Cond Mnt		Appelez-nous	-
765	WR17X10695		Bracket Condenser Bar		Appelez-nous	-
775	WR02X10047		Cover Water Line		Appelez-nous	-
776	WG03A00749		Clamp Tube   (Replaces: WR02X10522)				$ 9.25
800	WR57X10040		Water Valve				$ 71.10
801	WR55X10715		Board Asm Main Control		Appelez-nous	-
806	WR01F01881		Tube Plastic   (Replaces: WR17X11625)				$ 15.88
843	WR17X12179		Cover Enclosure		Appelez-nous	-
