SELECT A DIAGRAM

1 - Control Panel & Coin Box Assembly

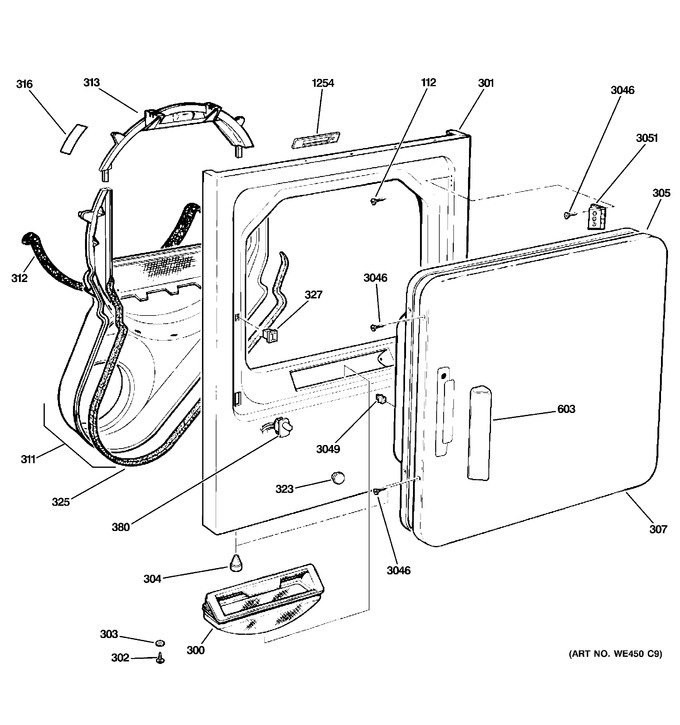

2 - Front Panel & Door


3 - Cabinet


4 - Drum


5 - Blower & Drive Assebmly


6 - Gas Valve & Burner Assembly


7 - Timer Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
112	WR01A00517		Plug Door Rvsbl Wh   (Replaces: WR2X8693)				$ 4.37
300	WG04F00416		Filter Frame W/hole   (Replaces: WE18M29)			Immediately	$ 40.73
301	WE1M510		Dampening Plate Front Pn		Appelez-nous	-
301	WE20M344		Front Panel Coin Wh		Appelez-nous	-
302	WE2M189		Screw		Appelez-nous	-
303	WE2M181		Rubber Washer		Appelez-nous	-
304	WG04L00345		Stabilizing Leg Asm.   (Replaces: WE2M188)			Immediately	$ 3.64
305	WG04L00267		Inner Door & Gasket Asm.   (Replaces: WE10M109)				$ 122.60
307	WW01L01133		Panel Door Outer Wh   (Replaces: WE10M102)				$ 149.43
311	WW02F00592		Air Duct Asm   (Replaces: WE14M92)			Immediately	$ 175.43
312	WE9M30		Felt		Appelez-nous	-
313	WW02L00517		Top Bearing   (Replaces: WE3M26)			Immediately	$ 87.83
316	WE1M504		Slide Drum - White			Immediately	$ 40.66
316	WE1M415		Bearing-slide Green		Appelez-nous	-
323	WE1M348		Plug Peephole Gas		Appelez-nous	-
325	WE01X10217		Gasket Seal Hsng Exh		Appelez-nous	-
327	WE1M536		Latch		Appelez-nous	-
380	WE4M335		Door Switch		Appelez-nous	-
603	WE1M463		Handle Door Wh			Immediately	$ 38.37
1254	WE2M199		Plate Security Front Cab		Appelez-nous	-
3046	WW02A00097		Screw #8   (Replaces: WE2M196)				$ 3.57
3049	WW02A00004		Strike Door   (Replaces: WE1X1192)			Immediately	$ 3.57
3051	WW02L00028		Hinge   (Replaces: WE1M505)			Immediately	$ 8.93

    View Diagram in Separate Window       Print Part List
