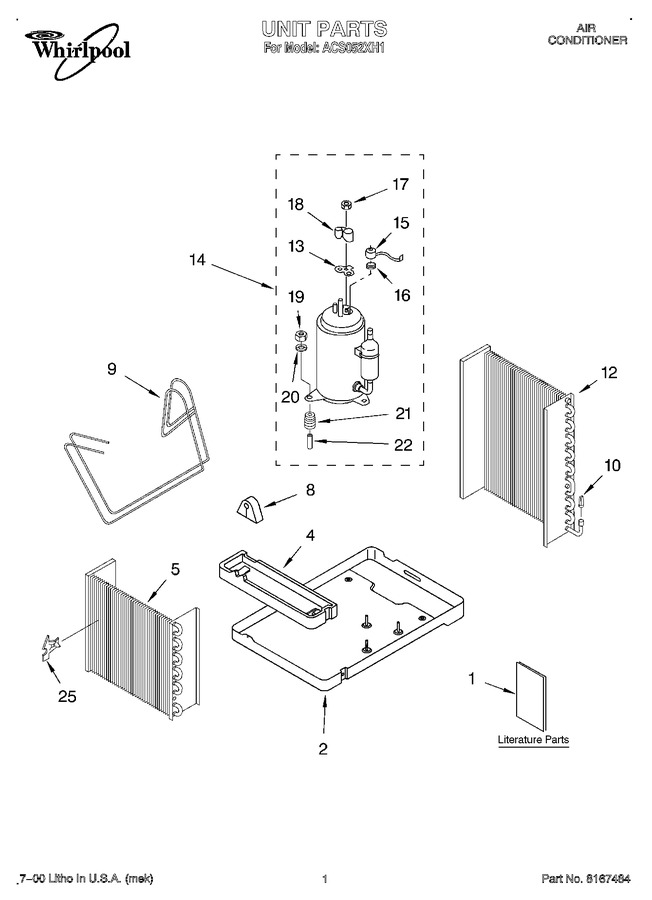

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT789929		Literature Parts (use And Care Guide)		Appelez-nous	-
2	789915		Base		Appelez-nous	-
4	789778		Pan, Drain (evaporator)		Appelez-nous	-
5	789848		Evaporator		Appelez-nous	-
8	789751		Grommet, Tube		Appelez-nous	-
9	789782		Tube, Restrictor .042 I.d. X 20``		Appelez-nous	-
10	789673		Strainer		Appelez-nous	-
12	789847		Condenser		Appelez-nous	-
13	WP950035		Gasket, Terminal Cover   (Replaces: 789831)				$ 82.55
14	789849		Compressor		Appelez-nous	-
15	789850		Overload		Appelez-nous	-
16	789830		Spring, Overload		Appelez-nous	-
17	789833		Nut, Terminal Cover		Appelez-nous	-
18	789832		Cover, Terminal		Appelez-nous	-
19	789661		Nut		Appelez-nous	-
20	W11236646		Washer   (Replaces: 789784)			Immediately	$ 14.03
21	789664		Grommet		Appelez-nous	-
22	789783		Sleeve		Appelez-nous	-
25	789799		Clip, Thermostat Bulb		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
