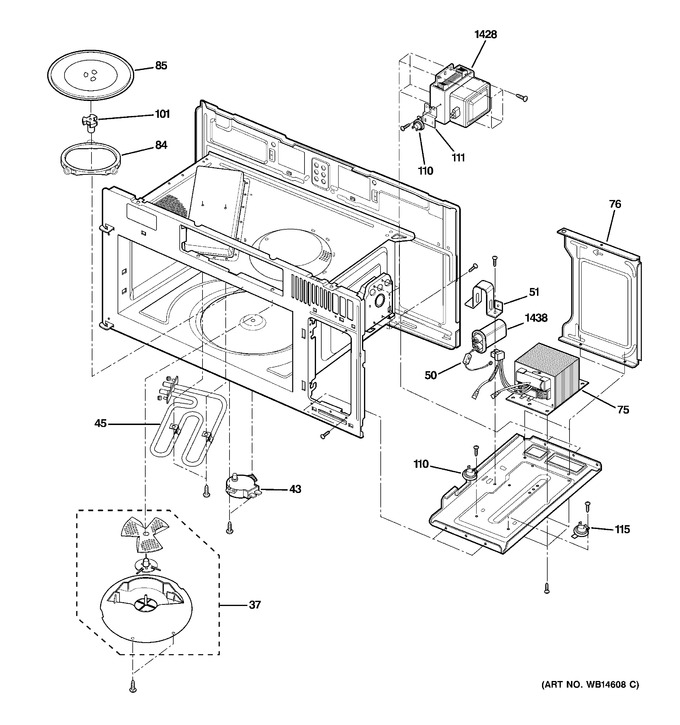

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 37 | WB06X10792 | Cover Assembly,stirrer F |
|
- | |||||
| 43 | WB26X10225 | Motor, Ac Synchronous |
|
- | |||||
| 45 | WB44X10054 | Heater,sheath |
|
- | |||||
| 50 | WG01A01078 | Diode (Replaces: WB27X10930) |
|
Immediately | $ 25.73 | ||||
| 51 | WB06X10561 | Bracket,capacitor |
|
- | |||||
| 75 | WB27X11041 | Transformer,high Voltage |
|
- | |||||
| 76 | WB02X11362 | Guide,air |
|
- | |||||
| 84 | WB06X10791 | Turntable Assembly |
|
- | |||||
| 85 | WG02L02358 | Tray Glass (Replaces: WB49X10176) |
|
$ 98.11 | |||||
| 101 | WB06X10790 | Shaft,turntable |
|
- | |||||
| 110 | WG02F02808 | Thermostat (Replaces: WB21X10148) |
|
Immediately | $ 17.15 | ||||
| 111 | WB06X10570 | Bracket,misc |
|
- | |||||
| 115 | WB27X10932 | Thermostat |
|
- | |||||
| 1428 | WB27X10309 | Magnetron |
|
- | |||||
| 1438 | WG02F00228 | Capacitor H.v (Replaces: WB27X10701) |
|
Immediately | $ 57.24 |
