SELECT A DIAGRAM

01 - Control Panel


02 - Door


03 - Frame


04 - Motor


05 - Rack


06 - Tub

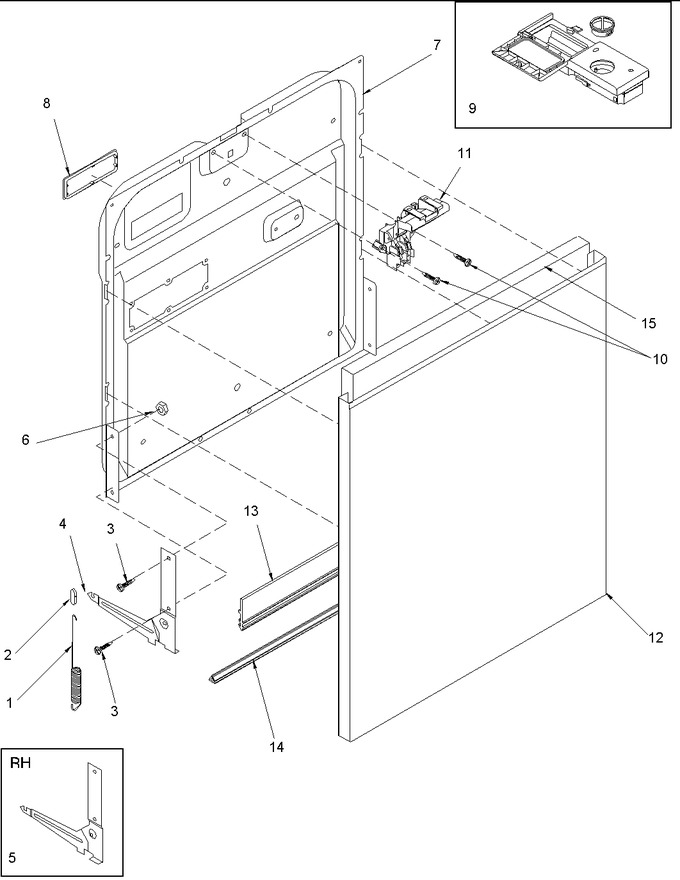

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0000296		Spring		Appelez-nous	-
2	R9800211		Spring, Linkage				$ 44.17
3	R9800063		Screw, Arm Assy		Appelez-nous	-
4	R9800213		Assy, L.h. Arm		Appelez-nous	-
5	R9800212		Assy, R.h. Hinge Arm		Appelez-nous	-
6	M0282009		Nut   (Replaces: R9800061)				$ 14.07
7	R0000297		Assy, Inner Door		Appelez-nous	-
8	R9800100		Grate, Liner		Appelez-nous	-
9	WPW10247183		Dispenser, Det/rinse   (Replaces: R9800117)				$ 393.19
10	R9800065		Screw, Latch		Appelez-nous	-
11	R0000298		Assy,latch W/ Handle(bisque)		Appelez-nous	-
12	R0000299		Door, Bisque		Appelez-nous	-
13	R9800181		Gsket, Door Bottom		Appelez-nous	-
14	R9800082		Support, Hinge		Appelez-nous	-
15	R9800161		Insulation, Door		Appelez-nous	-
NI	R9800083		Pin, Arm		Appelez-nous	-
NI	R0000452		Screw,no.7 Plas .375 Disp Assy		Appelez-nous	-
NI	R0000300		Clamp-wire,drip Loop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
