SELECT A DIAGRAM

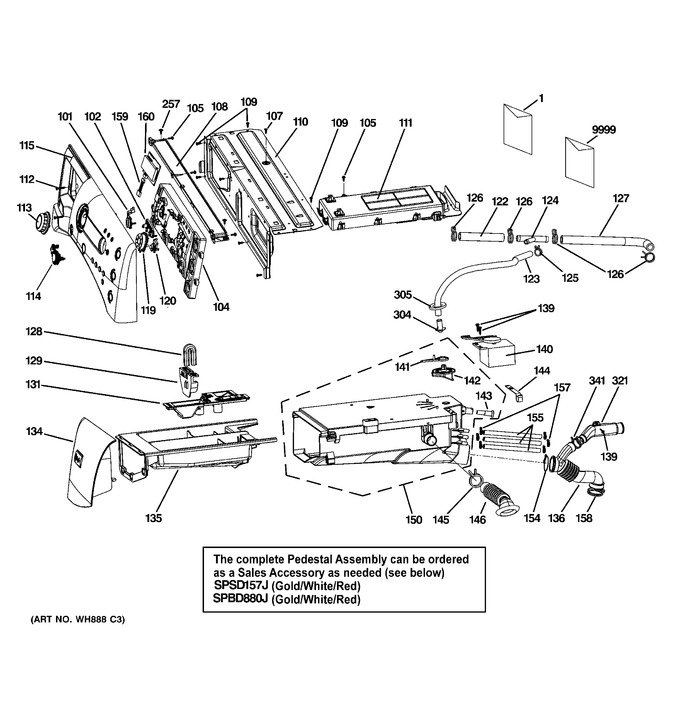

1 - Controls & Dispenser


2 - Cabinet & Top Panel


3 - Front Panel & Door


4 - Tub & Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-16571-1		Mini Manual		Appelez-nous	-
1	49-90344		Pdstl Install Instr		Appelez-nous	-
1	49-90340		Manual Use & Care		Appelez-nous	-
101	WH01X10372		Power Button		Appelez-nous	-
102	WH01X10401		Settings Button Mg		Appelez-nous	-
102	WH01X10400		Settings Button Mv		Appelez-nous	-
102	WH01X10373		Settings Button Ww		Appelez-nous	-
104	WH12X10387		Control Board Asm		Appelez-nous	-
105	WH02X10181		Screw_st3.5 X 11		Appelez-nous	-
107	WH02X10183		Screw St4*13		Appelez-nous	-
108	WH16X10107		Control Rear Cover		Appelez-nous	-
109	WH02X10184		Screw_st4.2 X 13		Appelez-nous	-
110	WH46X10202		Front Top Bracket		Appelez-nous	-
111	WH12X10416		Power Board Asm		Appelez-nous	-
112	WH02X10185		Screw_st4*25		Appelez-nous	-
113	WH11X10055		Select Cycle Knob Asm		Appelez-nous	-
114	WH01X10514		Start/pause Button		Appelez-nous	-
115	WH42X10781		Control Panel Asm Ww		Appelez-nous	-
115	WH42X10782		Control Panel Asm Mg		Appelez-nous	-
115	WH42X10783		Control Panel Asm Mv		Appelez-nous	-
119	WH01X10402		Cluster Button Asm Mg		Appelez-nous	-
119	WH01X10403		Cluster Button Asm Mv		Appelez-nous	-
119	WH01X10419		Cluster Button Asm Ww		Appelez-nous	-
120	WH01X10375		Button "back" Ww		Appelez-nous	-
120	WH01X10421		Button "back" Mg		Appelez-nous	-
120	WH01X10420		Button "back" Mv		Appelez-nous	-
122	WH41X10108		Inlet_water_hose_1		Appelez-nous	-
123	WH41X10109		Spray_hose		Appelez-nous	-
124	WH41X10110		3_way_pipe		Appelez-nous	-
125	WH01X10243		3_way_pipe_clamp		Appelez-nous	-
126	WH01X10244		3_way_pipe_clamp		Appelez-nous	-
127	WH41X10111		Inlet_water_hose		Appelez-nous	-
128	WH41X10179		Siphon Pipe		Appelez-nous	-
129	WH41X10180		Liquid Detergent Insert		Appelez-nous	-
131	WH41X10181		Softener Bleach Cover		Appelez-nous	-
134	WH41X10183		Dispenser Dwr Front Mg		Appelez-nous	-
134	WH41X10184		Dispenser Dwr Front Ww		Appelez-nous	-
134	WH41X10182		Dispenser Dwr Front Mv		Appelez-nous	-
135	WH41X10185		Drawer Dispenser		Appelez-nous	-
136	WH41X10186		Water Inlet Pipe		Appelez-nous	-
139	WH02X10186		Screw St 4*20		Appelez-nous	-
140	WG02F04592		Diverter   (Replaces: WH43X10031)			Immediately	$ 184.41
141	WH01X10247		Diverter_indicator		Appelez-nous	-
142	WH01X10376		Diverter Lever Plate		Appelez-nous	-
143	WH41X10121		Dispenser_inlet		Appelez-nous	-
144	WH01X10249		Dispenser_clamp		Appelez-nous	-
145	WH01X10250		Dispenser_vent_hose_clam		Appelez-nous	-
146	WG04F00286		Dispenser_vent_hose   (Replaces: WH41X10122)				$ 10.32
150	WG04F00632		Main Box Diverter Asm   (Replaces: WH41X10187)				$ 153.79
154	WH01X10377		Clamp - Water Inlet Pipe		Appelez-nous	-
155	WH41X10205		Rubber Pipe		Appelez-nous	-
157	WH01X10429		Clamp - Quick Disconnect		Appelez-nous	-
158	WH01X10379		Clamp - Water Inlet Pipe		Appelez-nous	-
159	WH19X10056		Harness - Display Board		Appelez-nous	-
160	WH12X10389		Display Board - Vfd		Appelez-nous	-
257	WH02X10201		Screw_st4.2*13		Appelez-nous	-
304	WG04L00219		Gasket_nozzle   (Replaces: WH08X10021)				$ 5.36
305	WG04L00220		Gasket_nozzle_washer   (Replaces: WH02X10206)				$ 4.31
321	WH41X10189		Hose - Vent		Appelez-nous	-
341	WH01X10275		Pump_clamp		Appelez-nous	-
9999	WE25X10028		Kit - Stacking Wsh/dry		Appelez-nous	-
	WG04L00208		Joint				$ 267.96
	WG04F00577		Inverter				$ 271.07
	WG04F01209		Joint Centrale De La Cuve				$ 60.44
	WG04F01600		Rear Tub Asm				$ 815.41
	WG04L05906		Basket Asm   (Replaces: WG04L01530)				$ 1,546.27
	WG02F04591		Control Board				$ 293.11
