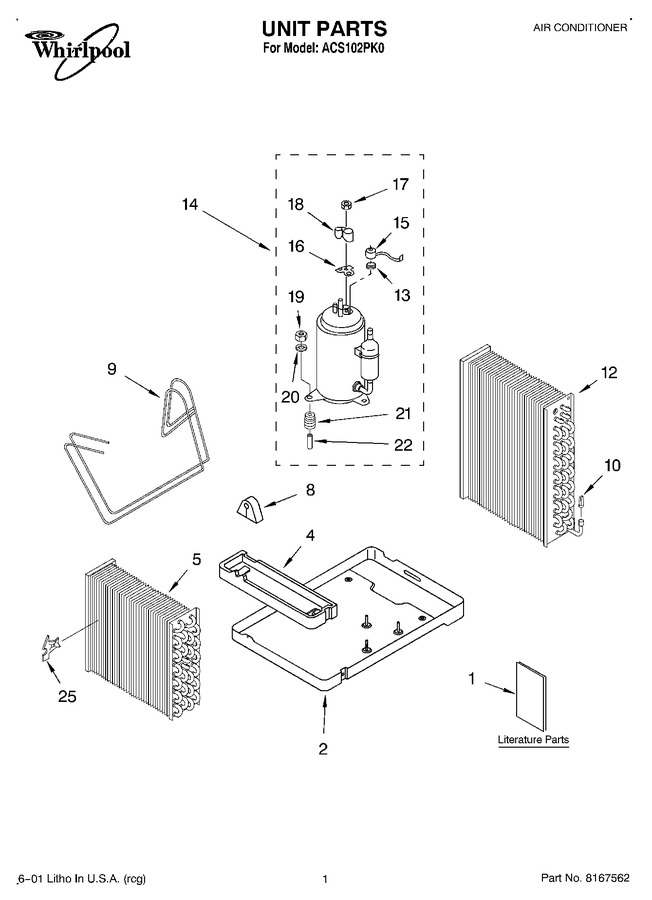

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT789978 | Literature Parts (use And Care Guide) |
|
- | |||||
| 2 | 789973 | Base |
|
- | |||||
| 4 | 789778 | Pan, Drain (evaporator) |
|
- | |||||
| 5 | 789975 | Evaporator |
|
- | |||||
| 8 | 789755 | Grommet, Tube |
|
- | |||||
| 9 | 789670 | Tube, Restrictor .042 I.d. X 20`` (2) |
|
- | |||||
| 10 | 789673 | Strainer |
|
- | |||||
| 12 | 789972 | Condenser |
|
- | |||||
| 13 | 789830 | Spring, Overload |
|
- | |||||
| 14 | 789981 | Compressor |
|
- | |||||
| 15 | 789880 | Overload |
|
- | |||||
| 16 | 789882 | Gasket, Terminal Cover |
|
- | |||||
| 17 | 789883 | Nut, Terminal Cover |
|
- | |||||
| 18 | 789881 | Cover, Terminal |
|
- | |||||
| 19 | 789661 | Nut |
|
- | |||||
| 20 | W11236646 | Washer (Replaces: 789784) |
|
Immediately | $ 14.03 | ||||
| 21 | 789827 | Grommet |
|
- | |||||
| 22 | 789783 | Sleeve |
|
- | |||||
| 25 | 789799 | Clip, Thermostat Bulb |
|
- |
