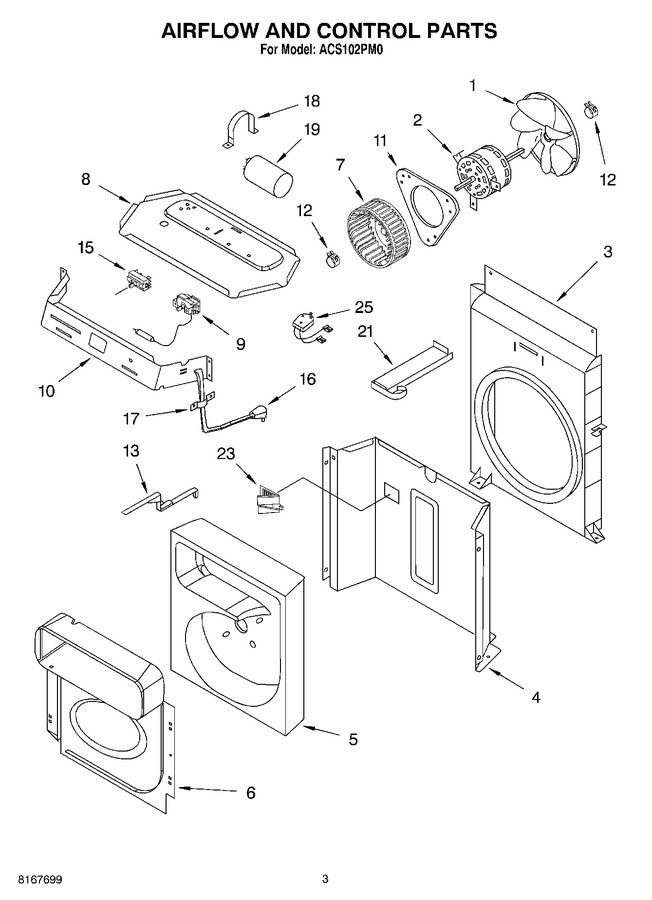

02 - Air Flow And Control Parts


03 - Cabinet Parts


04 - Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	789834		Blade, Fan		Appelez-nous	-
2	789969		Motor, Fan		Appelez-nous	-
3	789836		Shroud, Condenser		Appelez-nous	-
4	789794		Wall, Dividing		Appelez-nous	-
5	789916		Housing, Blower		Appelez-nous	-
6	789796		Shroud, Evaporator (includes Insul.)		Appelez-nous	-
7	789838		Wheel, Blower		Appelez-nous	-
8	789803		Panel, Control (bottom)		Appelez-nous	-
9	789627		Thermostat		Appelez-nous	-
10	789804		Panel, Control		Appelez-nous	-
11	789793		Plate, Motor Mounting				$ 381.57
12	789835		Clamp		Appelez-nous	-
13	789917		Actuator, Exhaust Door		Appelez-nous	-
15	789932		Switch, Rotary		Appelez-nous	-
16	8199526		Cord, Power		Appelez-nous	-
17	789806		Relief, Strain		Appelez-nous	-
18	789749		Strap, Capacitor		Appelez-nous	-
19	789970		Capacitor		Appelez-nous	-
21	789807		Support, Unit		Appelez-nous	-
23	789907		Door, Exhaust		Appelez-nous	-
25	789801		Assist, Start		Appelez-nous	-
