View Diagram in Separate Window
Print Part List

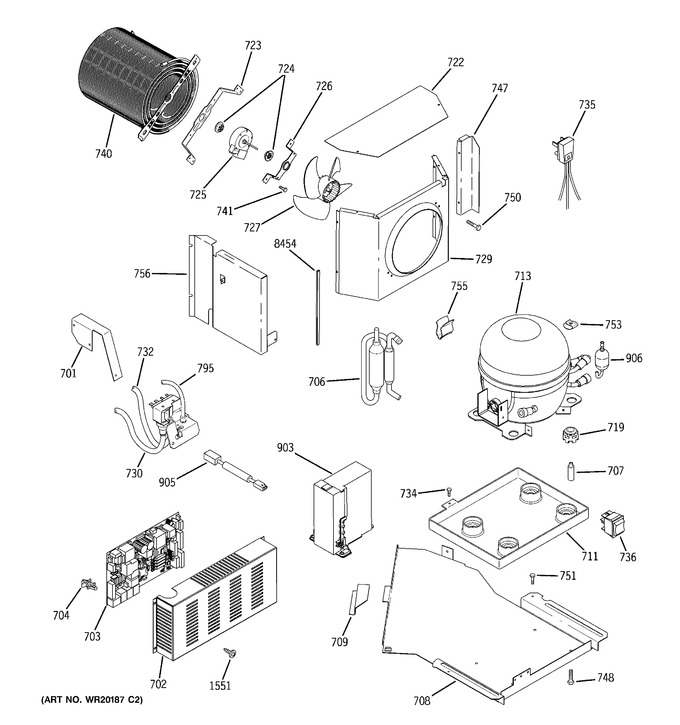

SELECT A DIAGRAM
1 - Doors
2 - Controls & Components
3 - Freezer Section, Trim & Components
4 - Shelves & Drawers
5 - Sealed System & Mother Board
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 701 | WR02X12482 | Bracket Water Filter Mtg |
|
- | |||||
| 702 | WR02X12570 | Cover Motherboard |
|
- | |||||
| 703 | WR01F02880 | Board Asm Main Control (Replaces: WR55X11070) |
|
Immediately | $ 296.92 | ||||
| 704 | WR01X10301 | Main Board Stand Offs |
|
- | |||||
| 706 | WR74X10125 | Dryer Bifurcated Xh9 |
|
- | |||||
| 707 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 708 | WR17X12348 | System Pan |
|
- | |||||
| 713 | WR60X10216 | Motor Dc Cond Fan |
|
- | |||||
| 719 | WR01F00846 | Grommet (Replaces: WR02X10099) |
|
$ 7.15 | |||||
| 723 | WG03F00071 | Bracket Cond Fan (mtg) (Replaces: WR02X11863) |
|
Immediately | $ 24.30 | ||||
| 724 | WR01A00315 | Grommet Cond Fan (Replaces: WR02X10520) |
|
$ 3.75 | |||||
| 725 | WG03F00154 | Compressor Vcc3 Repl. Ki (Replaces: WR87X10111) |
|
$ 1,005.30 | |||||
| 726 | WR02X10593 | Bracket Cond Fan (rear) |
|
- | |||||
| 727 | WR01F02003 | Blade Cond Fan Asm (Replaces: WR60X10206) |
|
$ 10.36 | |||||
| 729 | WR17X11252 | Shroud Condenser |
|
- | |||||
| 735 | WG03F00911 | Power Cord Asm (Replaces: WR23X10300) |
|
$ 76.87 | |||||
| 736 | WR23X10571 | Master Light Switch |
|
- | |||||
| 740 | WR84X10090 | Condenser & Bracket Asm |
|
- | |||||
| 750 | WR1X1826 | #8-18 Type Ab X 3/8 Ph P |
|
- | |||||
| 753 | WR2X8203 | Clip Compressor Mount |
|
- | |||||
| 756 | WR17X12352 | Baffle Asm |
|
- | |||||
| 795 | WR57X10075 | Valve Water Asm |
|
- | |||||
| 903 | WR55X10685 | Inverter Asm Comp Mount |
|
- | |||||
| 905 | WR23X10605 | Harness Communication |
|
- | |||||
| 1551 | WG04A01239 | #10x1 Ph Sms (Replaces: WD2X295) |
|
$ 3.57 | |||||
| 8454 | WR38X10190 | Edge Trim 1.1257" |
|
- | |||||
| WG03L05041 | Wrap Asm Ss Bm Fz Monogram |
|
$ 1,912.75 | ||||||
| WG03A00490 | Toe Kick, Monogram Sst |
|
$ 200.09 | ||||||
| WG03F00574 | Stand Off |
|
$ 112.62 | ||||||
| WG03L00057 | Door Panel |
|
$ 1,531.69 | ||||||
| WG03L00265 | Monogram Logo |
|
$ 103.07 | ||||||
| WG03L03613 | Grill Panel Lh Ss |
|
$ 331.63 | ||||||
| WG03L03760 | Handle Plug Ss, Monogram |
|
$ 77.11 | ||||||
| WG03L04068 | Lh Hinge Side Trim, Monogram |
|
- | ||||||
| WG03L05266 | Tubular Ss Fz Handle Asms |
|
$ 204.38 | ||||||
| WG02A00060 | Mg Logo Large Pinned |
|
$ 80.72 |
