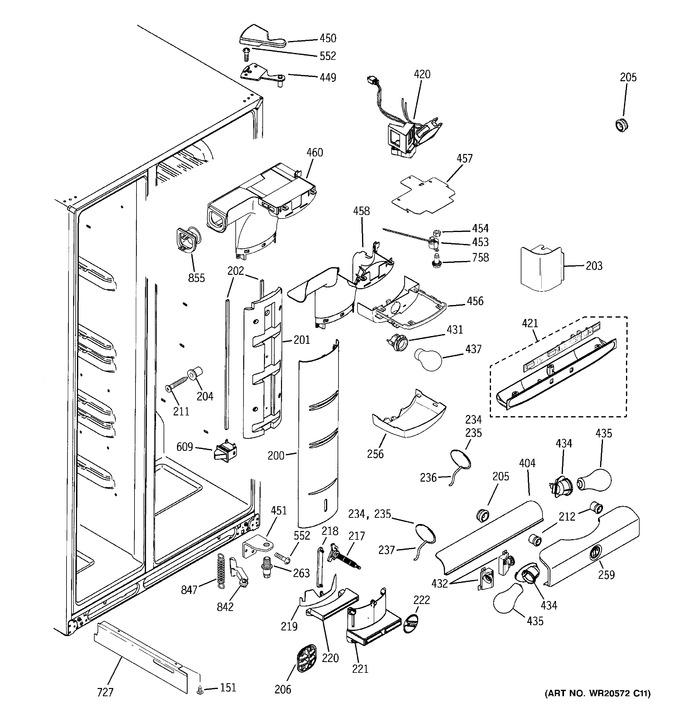

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 151 | WR01A00683 | Scr 8-18 Ab Ihxw 9/16 S (Replaces: WR01X10588) |
|
$ 3.57 | |||||
| 200 | WR17X10802 | Cover Ff Tower |
|
- | |||||
| 201 | WR17X10803 | Eps Ff Tower |
|
- | |||||
| 202 | WR14X10062 | Gasket Ff Tower |
|
- | |||||
| 203 | WR17X10898 | Cover Duct |
|
- | |||||
| 204 | WR01A00969 | Support Shelf (Replaces: WR02X12188) |
|
$ 3.57 | |||||
| 204 | WR01A00968 | Support Shelf (Replaces: WR02X12187) |
|
Immediately | $ 3.57 | ||||
| 205 | WR01F00849 | Grommet (Replaces: WR02X10678) |
|
Immediately | $ 3.57 | ||||
| 206 | WR02X10671 | Grille Air Return |
|
- | |||||
| 211 | WR01X10568 | Scr8-18 Ab Ufl 1 1/2 Ss |
|
- | |||||
| 212 | WR02X10689 | Grommet Base Grille |
|
- | |||||
| 217 | WR01L01196 | Dial Pan Chill (Replaces: WR32X10154) |
|
$ 4.20 | |||||
| 218 | WR02X10665 | Linkage Pan Chill |
|
- | |||||
| 219 | WR02X10664 | Shutter Pan Chill |
|
- | |||||
| 220 | WR02X11261 | Duct Pan Chill |
|
- | |||||
| 221 | WR02X10641 | Discharge Pan Chill |
|
- | |||||
| 222 | WR01L03253 | Knob Pan Chill (Replaces: WR02X10666) |
|
$ 6.08 | |||||
| 234 | WR01L04066 | Grille Sensor (Replaces: WR02X10647) |
|
$ 3.57 | |||||
| 235 | WR01L04393 | Shunt Sensor (Replaces: WR02X10668) |
|
Immediately | $ 14.29 | ||||
| 236 | WR55X10939 | Sensor Temperature |
|
- | |||||
| 237 | WR55X10937 | Sensor Temperature |
|
- | |||||
| 256 | WR17X12200 | Shield Light Ff |
|
- | |||||
| 259 | WR17X10801 | Light Shield Btm Ff |
|
- | |||||
| 263 | WR01A00453 | Pin Hinge Btm Adj Hollow (Replaces: WR02X12263) |
|
$ 17.01 | |||||
| 404 | WR17X12667 | Diverter Air |
|
- | |||||
| 420 | WR60X10226 | Fan & Damper Asm Ff |
|
- | |||||
| 421 | WR55X10754 | Interface Customer Asm |
|
- | |||||
| 431 | WR02X11462 | Socket Lamp Fz |
|
- | |||||
| 432 | WR02X12284 | Reflector Asm Middle |
|
- | |||||
| 432 | WR02X12285 | Reflector Asm Middle |
|
- | |||||
| 434 | WR02X11007 | Socket Lamp E27 |
|
- | |||||
| 435 | WR02X12207 | Bulb Light |
|
- | |||||
| 437 | WR02X12330 | Bulb Light |
|
- | |||||
| 449 | WR13X10217 | Hinge Top & Pin Asm Ff |
|
- | |||||
| 450 | WR02X10788 | Cover Hinge Bq |
|
- | |||||
| 451 | WR13X10161 | Hinge Btm Bq |
|
- | |||||
| 453 | WR49X10191 | Top Light Harness Kit |
|
- | |||||
| 454 | WR01X10212 | Nut 8-32 |
|
- | |||||
| 456 | WR17X12199 | Housing Lamp Ff |
|
- | |||||
| 457 | WR17X12201 | Reflector Ff Light |
|
- | |||||
| 458 | WR17X10896 | Cover Ff Inlet |
|
- | |||||
| 460 | WR49X10150 | Cover Asm Ff Inlet |
|
- | |||||
| 552 | WR01X10792 | Scr 12-24 Tt Hx 7/8 S |
|
- | |||||
| 609 | WG03A03078 | Switch Light (Replaces: WR23X10530) |
|
Immediately | $ 11.39 | ||||
| 727 | WR17X12295 | Separator Air Hiside |
|
- | |||||
| 758 | WD2X323 | Scr 8-32 X 3/8 Sph |
|
- | |||||
| 842 | WR11X10011 | Lever Asm Ff Side Bq |
|
- | |||||
| 847 | WG03F00903 | Spring Closure (Replaces: WR1X2027) |
|
$ 68.16 | |||||
| 855 | WR02X13091 | Duct Asm Ff Transition |
|
- |
