SELECT A DIAGRAM

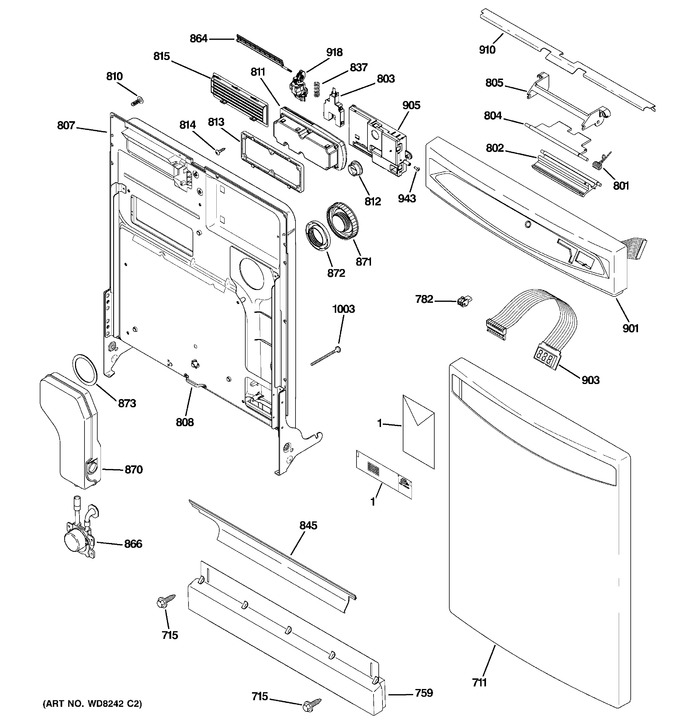

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-30210		Pm Instruction Install		Appelez-nous	-
1	31-30602		Pm Sheet Mini Manual		Appelez-nous	-
1	49-55016		Pm Manual Use & Care		Appelez-nous	-
1	WD01X10295		Strip Hardness Tester		Appelez-nous	-
711	WD31X10050		Panel Bowed Tox Asm Bk		Appelez-nous	-
711	WD31X10052		Panel Bowed Tox Asm Wh		Appelez-nous	-
715	WD02X10086		Scr 8-18 B 1hw 1/2 S N		Appelez-nous	-
715	WD02X10085		Scr 8-18 B 1hw 1/2 S N		Appelez-nous	-
759	WD27X10087		Toekick Asm Bk		Appelez-nous	-
759	WD27X10086		Toekick Asm Wh		Appelez-nous	-
782	WB17X5060		Terminal Blk Asm (2 Pin)		Appelez-nous	-
801	WG03A00047		Spring Recess Door   (Replaces: WR02X10585)			Immediately	$ 3.97
802	WD13X10010		Handle Latch Wh		Appelez-nous	-
802	WD13X10007		Handle Latch Bk		Appelez-nous	-
803	WD21X10169		Switch Interlock Asm		Appelez-nous	-
804	WG04F00006		Actuator Handle   (Replaces: WD13X10045)			Immediately	$ 85.41
805	WG04L00456		Retainer Handle   (Replaces: WD13X10009)				$ 77.35
807	WD31X10098		Door Plastic Hinge Asm		Appelez-nous	-
808	WD01X10110		Clip Harness		Appelez-nous	-
810	WG04A00158		Scr 8-18 Ab Tr 7/8s   (Replaces: WD02X10106)				$ 3.97
811	WG04F00692		Module Rinse And Cap Asm   (Replaces: WD12X10237)			Immediately	$ 171.12
812	WG04L00091		Cap Rinse Asm   (Replaces: WD12X10206)				$ 34.94
813	WD12X10146		Backup Flange D Cup		Appelez-nous	-
814	WD02X10104		Scr 8-10 Pl Trp 1/2 S		Appelez-nous	-
815	WG04F01275		Vent   (Replaces: WD12X10045)				$ 75.03
837	WG04A01303		Spring Plunger   (Replaces: WD03X10026)				$ 19.06
845	WD08X10075		Seal Short Bottom Door		Appelez-nous	-
864	WD12X10067		Flapper Vent		Appelez-nous	-
866	WD12X10251		Det Dispensing Asm		Appelez-nous	-
870	WD35X10067		Bottle Detergent Kit		Appelez-nous	-
871	WG04F01659		Cap Asm   (Replaces: WD12X10236)				$ 109.01
872	WG04A00117		Lock Nut Asm   (Replaces: WD35X10068)				$ 161.80
873	WG04L01694		Gasket Fill Hole   (Replaces: WD08X10060)				$ 15.88
901	WD34X11461		Escutcheon Bowed Ss Asm		Appelez-nous	-
901	WD34X11462		Escutcheon Bowed Ss Asm		Appelez-nous	-
903	WD21X10260		Module 3 Digit Display		Appelez-nous	-
905	WD21X10270		Module Control Asm		Appelez-nous	-
910	WD34X10871		Brace Escutcheon		Appelez-nous	-
918	WG04F01276		Vent Driver Asm   (Replaces: WD21X10172)				$ 69.95
943	WZ05X0219		Screw		Appelez-nous	-
1003	WB01T10019		Scr 8-18 Ab Trt 7/16 Sn		Appelez-nous	-
