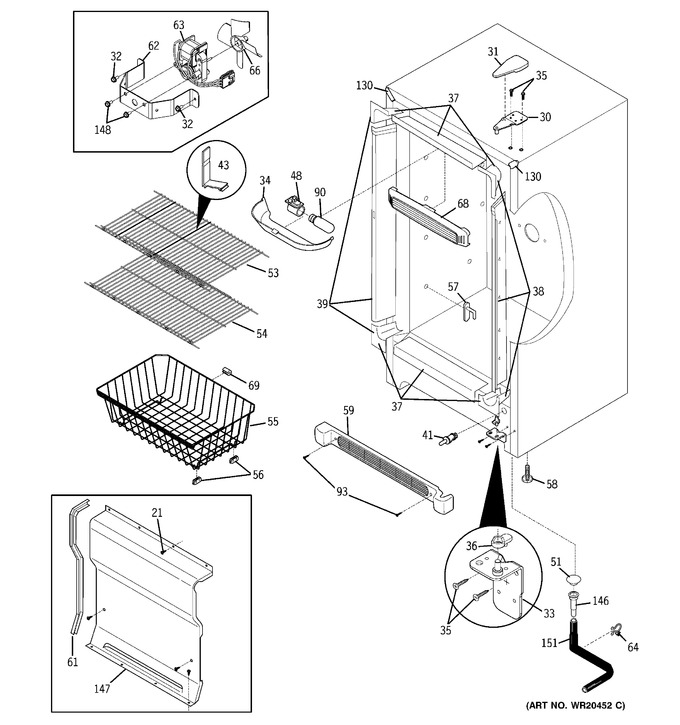

SELECT A DIAGRAM

1 - Freezer Door


2 - Cabinet


3 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	WR01X10781		Screw,8-18ab X 0.470 ,ev		Appelez-nous	-
30	WR12X10891		Hinge-upper		Appelez-nous	-
31	WR02X12689		Cover-hinge		Appelez-nous	-
32	WR01X10823		Screw,hex Washer Head ,1		Appelez-nous	-
33	WR02X12990		Hinge-bottom, Stepped Pi		Appelez-nous	-
34	WR02X12994		Shield-light		Appelez-nous	-
35	WR01X10874		Screw, Tamper Proof, 1/4		Appelez-nous	-
36	WR02X10393		Ramp Door Closure		Appelez-nous	-
37	WR40X10058		Breaker Kit W/corners,32		Appelez-nous	-
38	WR40X10059		Breaker Kit W/corners,no		Appelez-nous	-
39	WR40X10060		Breaker Kit W/corners,in		Appelez-nous	-
41	WR23X10632		Switch, Light/lamp, Plun		Appelez-nous	-
43	WR02X12993		Divider, White, Wire She		Appelez-nous	-
48	WR23X10302		Light Socket		Appelez-nous	-
51	WR01X10031		Plug-drain		Appelez-nous	-
53	WR71X10072		Shelf, 14.50x27.88		Appelez-nous	-
54	WR71X10075		Shelf Bottom Wh		Appelez-nous	-
55	WR21X10190		Basket		Appelez-nous	-
56	WR02X11444		Glide-basket		Appelez-nous	-
57	WR02X11446		Stop-basket		Appelez-nous	-
58	WR2X9485		Leveling Leg Adjustable		Appelez-nous	-
59	WR74X10300		Grille/kickplate, 32", W		Appelez-nous	-
61	WR14X489		Gasket Evap Cover		Appelez-nous	-
62	WR02X12686		Bracket,fan Motor Mount		Appelez-nous	-
63	WR60X10267		Motor,fan ,115 V		Appelez-nous	-
64	WR1X2181		Clip Drain Hose		Appelez-nous	-
66	WR60X5082		Fan Blade		Appelez-nous	-
68	WR17X12658		Baffle, Air		Appelez-nous	-
69	WR2X6361		Bumper Basket		Appelez-nous	-
90	PURCH. LOCAL1		Light Bulb/lamp		Appelez-nous	-
93	WR01X10797		Screw,ph Truss Head ,8-1		Appelez-nous	-
130	WR02X12717		Trim-cabinet Corner,whit		Appelez-nous	-
146	WR2X6353		Drain		Appelez-nous	-
147	WR17X12664		Cover-evaporator		Appelez-nous	-
148	WR01X10798		Screw,hex Washer Head ,8		Appelez-nous	-
151	WR17X4120		Hose-drain 17.50"		Appelez-nous	-
