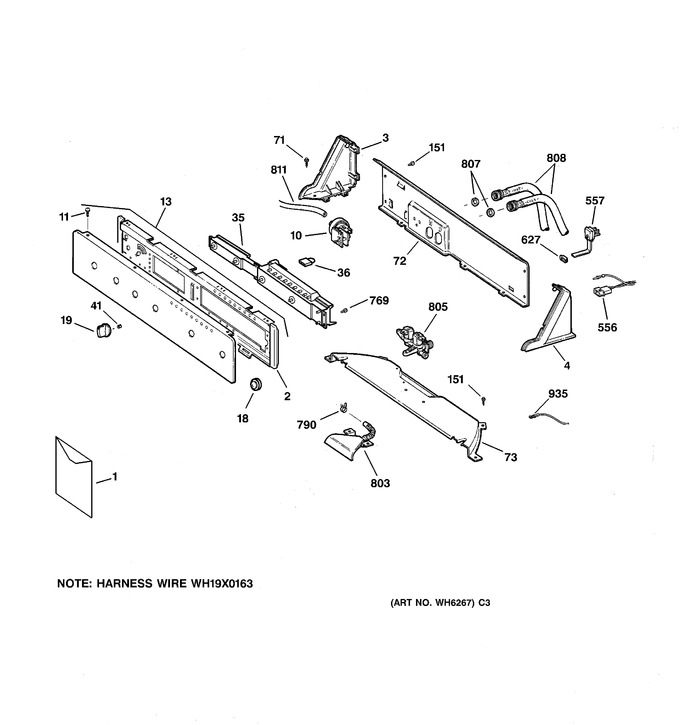

1 - Controls & Backsplash


2 - Cabinet, Cover & Front Panel


3 - Tub, Basket & Agitator


4 - Suspension, Pump & Drive Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-1748		31-1748-2		Appelez-nous	-
1	31-15412		Mini Manual		Appelez-nous	-
1	49-90030		Pm Manual Use & Care		Appelez-nous	-
1	31-15441		Pm Instruction Install		Appelez-nous	-
1	49-30081		Pm Manual Use & Care		Appelez-nous	-
2	WH46X10048		Support Switch		Appelez-nous	-
3	WH42X2397		End Cap		Appelez-nous	-
4	WH42X2398		End Cap Rh White		Appelez-nous	-
10	WH12X10107		Wh12x10173		Appelez-nous	-
10	WH12X10173		Switch Pressure		Appelez-nous	-
11	WH2X1206		Scr 8-18 Abflt 5/8 Sn Wh		Appelez-nous	-
11	WH02X10089		Screw 8-18 Ab Flt 9/16 S		Appelez-nous	-
13	WH42X10211		Control Panel Assy		Appelez-nous	-
18	WH01X10032		Button Switch		Appelez-nous	-
18	WG04F03527		Button Switch   (Replaces: WH01X10088)				$ 25.41
19	WH1X2721		Knob & Clip Asm Wh				$ 9.15
35	WH12X10106		Wh12x10176		Appelez-nous	-
35	WH12X10176		Control Asm		Appelez-nous	-
36	WH12X10095		Connector Model Select		Appelez-nous	-
41	WE1X980		U Clip		Appelez-nous	-
71	WH2X1205		Scr 8-18 B 1/2 Hxw P		Appelez-nous	-
72	WH46X10035		Wh46x337		Appelez-nous	-
73	WH46X10047		Cover Bottom		Appelez-nous	-
151	WH2X1210		Scr 8-18 B Ihw 1/2 S N		Appelez-nous	-
556	WH12X497		Housing Terminal		Appelez-nous	-
557	WH19X311		Cordset Asm		Appelez-nous	-
627	WH12X10025		Strain Relief		Appelez-nous	-
769	WB1X500		Scr 8-18 B Hxw 1/4 S		Appelez-nous	-
790	WH1X2036		Clamp Hose		Appelez-nous	-
803	WG04F03731		Hose & Water Inlet   (Replaces: WH41X10037)			Immediately	$ 12.71
805	WH13X86		Valve Triple Water		Appelez-nous	-
807	WH2X42		Hose Washer		Appelez-nous	-
808	WH41X58		Inlet Hose		Appelez-nous	-
811	WG04F03638		Hose Pressure   (Replaces: WH41X365)			Immediately	$ 15.88
935	WD1X1434		Terminal Special		Appelez-nous	-
