SELECT A DIAGRAM

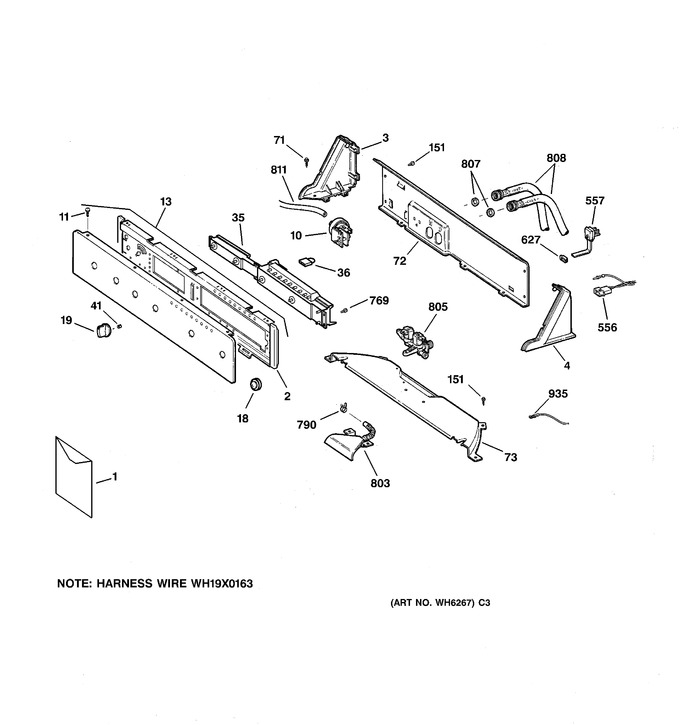

1 - Controls & Backsplash


2 - Cabnet, Cover & Front Panel


3 - Tub, Basket & Agitator


4 - Suspension, Pump & Drive Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-1748		Pm Instruction Install		Appelez-nous	-
1	31-15412		Pm Sheet Mini Manual		Appelez-nous	-
1	49-90030		Pm Manual Use & Care		Appelez-nous	-
2	WH46X10048		Support Switch		Appelez-nous	-
3	WH42X2397		End Cap Lh Wh		Appelez-nous	-
3	WE19X1002		End Cap Lh Ad		Appelez-nous	-
4	WE19X1003		End Cap Rh Ad		Appelez-nous	-
4	WH42X2398		End Cap Rh Wh		Appelez-nous	-
10	WH12X10107		Switch Pressure		Appelez-nous	-
11	WH2X1206		Scr8-18 Ab Flt 5/8 Sn Wh		Appelez-nous	-
13	WH42X10220		Control Panel Asm		Appelez-nous	-
13	WH42X10204		Control Panel Asm		Appelez-nous	-
18	WH01X10032		Button, Switch		Appelez-nous	-
18	WH01X10073		Button Switch		Appelez-nous	-
19	WH1X2721		Knob & Clip Asm Wh				$ 9.15
19	WE1X1208		Knob & Clip Asm Ad		Appelez-nous	-
35	WH12X10106		Control Asm		Appelez-nous	-
36	WH12X10109		Connector Model Select		Appelez-nous	-
41	WE1X980		U Clip		Appelez-nous	-
71	WH2X1205		Scr 8-18 B 1/2 Hxw P		Appelez-nous	-
72	WH46X10035		Panel Back		Appelez-nous	-
73	WH46X10047		Cover Bottom		Appelez-nous	-
151	WH2X1210		Scr 8-18 B Ihw 1/2 S N		Appelez-nous	-
556	WH12X497		Housing Terminal		Appelez-nous	-
557	WH19X311		Cordset Asm		Appelez-nous	-
627	WH12X10025		Strain Relief		Appelez-nous	-
769	WB1X500		Scr 8-18 B Hxw 1/4 S		Appelez-nous	-
790	WH1X2036		Clamp Hose		Appelez-nous	-
803	WG04F03731		Hose & Water Inlet   (Replaces: WH41X10037)			Immediately	$ 12.71
805	WH13X86		Valve Asm Water		Appelez-nous	-
807	WH2X42		Hose Washer		Appelez-nous	-
808	WH41X58		Hose Asm Intake		Appelez-nous	-
811	WG04F03638		Hose Pressure Switch   (Replaces: WH41X365)			Immediately	$ 15.88
935	WD1X1434		Terminal Special		Appelez-nous	-
