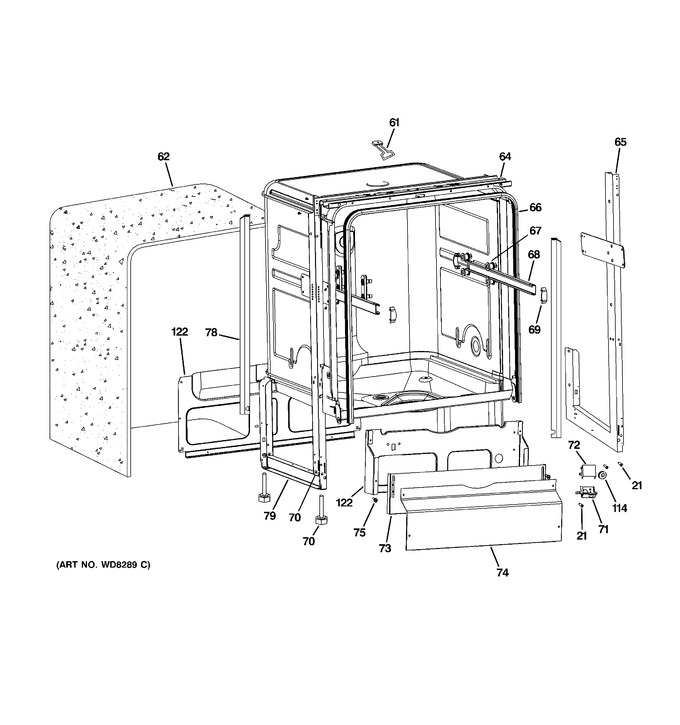

2 - Body Parts
3 - Rack Assemblies
4 - Motor-pump Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 61 | WD13X10047 | Door Strike |
|
- | |||||
| 62 | WD01X10334 | Tub Insulation |
|
- | |||||
| 64 | WD27X10192 | Upper Front Brace Bk |
|
- | |||||
| 65 | WD27X10240 | Left Upright Asm |
|
- | |||||
| 66 | WD08X10048 | Tub Gasket |
|
- | |||||
| 67 | WD12X10221 | Guide Rail Bracket Asm |
|
- | |||||
| 68 | WD30X10022 | Guide Rail |
|
- | |||||
| 69 | WG04F04360 | Cap - Guide Rail (Replaces: WD12X10222) |
|
$ 3.97 | |||||
| 70 | WD02X10128 | Kit - Leveling Leg (4 Ea |
|
- | |||||
| 70 | WD02X10118 | Leveling Leg |
|
- | |||||
| 71 | WD12X10177 | Junction Box |
|
- | |||||
| 72 | WD12X10257 | Cover Junction Box |
|
- | |||||
| 73 | WD27X10246 | Toe Kick Wh |
|
- | |||||
| 74 | WD27X10247 | Access Panel Wh |
|
- | |||||
| 75 | WD02X10121 | Screw - Bk |
|
- | |||||
| 78 | WD08X10049 | Tub Trim Bk |
|
- | |||||
| 79 | WD27X10239 | Right Upright Asm |
|
- | |||||
| 114 | WD01X10328 | Junction Guard Ring |
|
- | |||||
| 122 | WD27X10194 | Lower Front Brace |
|
- |
