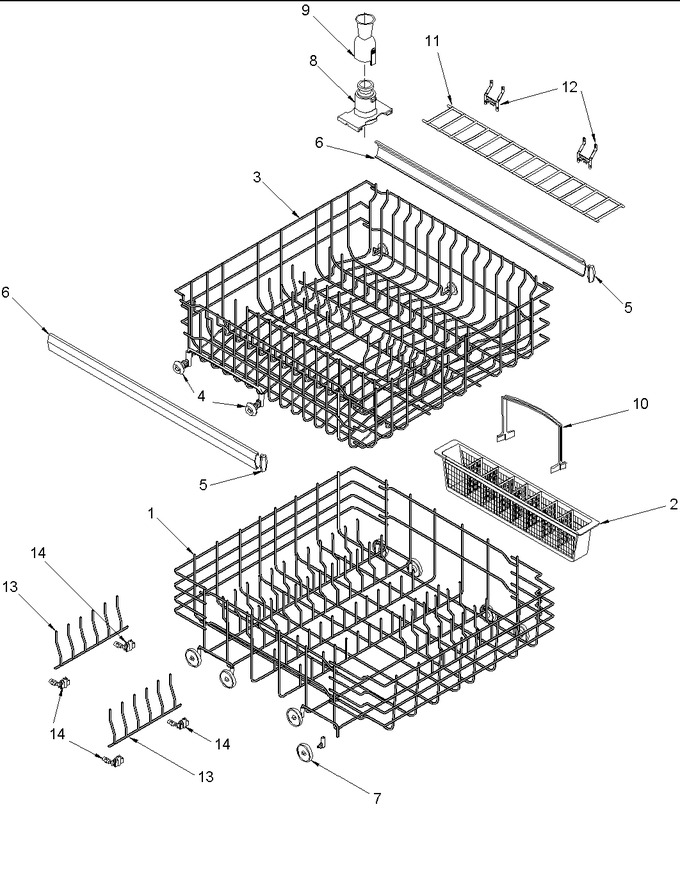

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R0000494 | Assy,lower Rack |
|
- | |||||
| 2 | R9800080 | Basket, Silverware |
|
- | |||||
| 3 | R0000315 | Assy, Upper Rack |
|
- | |||||
| 4 | R0000316 | Assy,upper Rack-wheel&bushing |
|
- | |||||
| 5 | R9800231 | Cap, Slide |
|
- | |||||
| 6 | R9800120 | Slide, Rack |
|
- | |||||
| 7 | R9800069 | Assy, Wheel & Brkt |
|
- | |||||
| 8 | R9800189 | Base, Funnel |
|
- | |||||
| 9 | R9800155 | Funnel |
|
- | |||||
| 10 | R9800162 | Handle, Silverware Basket |
|
- | |||||
| 11 | R9800094 | Holder, Cup |
|
- | |||||
| 12 | R0000317 | Bracket, Shelf Cup |
|
- | |||||
| 13 | R9800093 | Fence, Fold Down |
|
- | |||||
| 14 | R0000480 | Bracket,fence-fold Down Lower |
|
- |
