View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Control Panel & Coin Box Assembly
3 - Front Panel & Door
4 - Cabinet & Top Panel
5 - Drum
6 - Blower & Motor Assembly

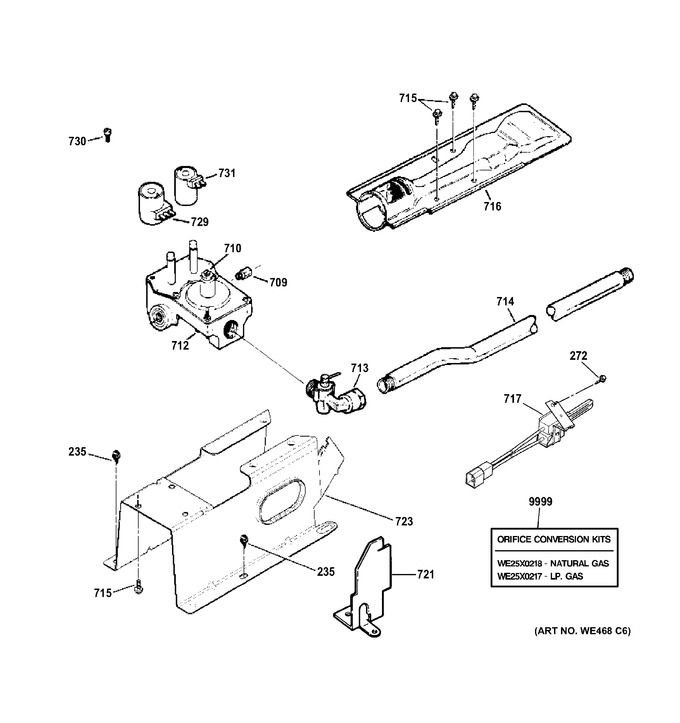

7 - Gas Valve & Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 235 | WE2M307 | Scr 10-16 X 1/2 Ab |
|
- | |||||
| 272 | WE2M308 | Scr 8-15 X 7/16 Ab |
|
- | |||||
| 709 | WE1X1148 | Orifice |
|
- | |||||
| 710 | WE1X1076 | Leak Limiter |
|
- | |||||
| 712 | WW02F00099 | Valve Assy Shutoff (Replaces: WE14X215) |
|
Immediately | $ 154.50 | ||||
| 713 | WE14X239 | Valve, Elbow |
|
- | |||||
| 714 | WE1M512 | Pipe & Lug Assy |
|
- | |||||
| 715 | WD2M101 | Scr |
|
- | |||||
| 716 | WE14M104 | Burner Asm. |
|
$ 255.39 | |||||
| 717 | WW01F01432 | Igniter Asm (Replaces: WE4M449) |
|
Immediately | $ 135.99 | ||||
| 721 | WE13X118 | Spacer Brkt |
|
- | |||||
| 723 | WE13M52 | Bracket Gas Valve |
|
- | |||||
| 729 | 279834 | Coil Dual (Replaces: WE4X692) |
|
Immediately | $ 29.57 | ||||
| 730 | WE2X333 | Screw (coil Mtg Brkt) |
|
- | |||||
| 731 | 58804AB | Coil Main (Replaces: WE4X693) |
|
- |
