1 - Control Panel & Coin Box Assembly


3 - Front Panel & Door


4 - Cabinet & Top Panel


5 - Drum


6 - Blower & Motor Assembly

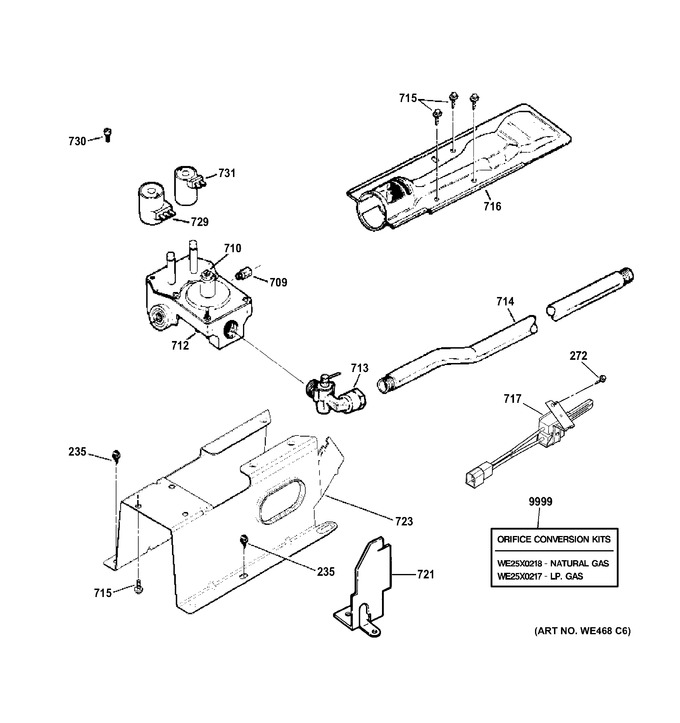

7 - Gas Valve & Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
272	WE2M308		Scr 8-15 X 7/16 Ab		Appelez-nous	-
709	WE1X1148		Orifice		Appelez-nous	-
710	WE1X1076		Leak Limiter		Appelez-nous	-
712	WW02F00099		Valve Assy Shutoff   (Replaces: WE14X215)			Immediately	$ 154.50
713	WE14X239		Valve, Elbow		Appelez-nous	-
714	WE1M512		Pipe & Lug Assy		Appelez-nous	-
715	WD2M101		Scr		Appelez-nous	-
716	WE14M104		Burner Asm.				$ 255.39
717	WW01F01432		Igniter Asm   (Replaces: WE4M449)			Immediately	$ 135.99
721	WE13X118		Spacer Brkt		Appelez-nous	-
723	WE13M52		Bracket Gas Valve		Appelez-nous	-
729	279834		Coil Dual   (Replaces: WE4X692)			Immediately	$ 29.57
730	WE2X333		Screw (coil Mtg Brkt)		Appelez-nous	-
731	58804AB		Coil Main   (Replaces: WE4X693)		Appelez-nous	-
