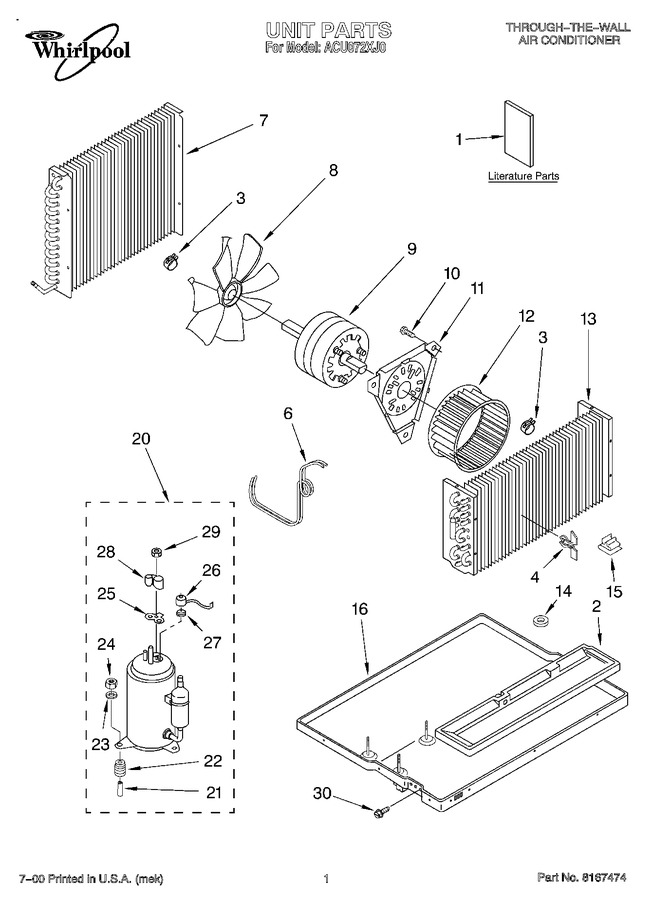

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT789900		Literature Parts (use And Care Guide)		Appelez-nous	-
2	789856		Pan, Drain (evaporator)		Appelez-nous	-
3	789889		Clamp		Appelez-nous	-
4	789799		Clip, Thermostat Bulb		Appelez-nous	-
6	789859		Tube, Restrictor .046 I.d. X 18.5``		Appelez-nous	-
7	789937		Condenser		Appelez-nous	-
8	789888		Blade, Fan (condenser)		Appelez-nous	-
9	789892		Motor, Fan		Appelez-nous	-
10	WP8204624		Screw 1/4-20 X 5/8   (Replaces: 4356830)				$ 16.65
11	789793		Plate, Motor Mounting				$ 381.57
12	789895		Wheel, Blower		Appelez-nous	-
13	789938		Evaporator		Appelez-nous	-
14	789751		Grommet		Appelez-nous	-
15	789763		Clip (2)		Appelez-nous	-
16	789954		Base		Appelez-nous	-
20	789939		Compressor		Appelez-nous	-
21	789783		Sleeve (3)		Appelez-nous	-
22	789664		Grommet (3)		Appelez-nous	-
23	W11236646		Washer   (Replaces: 789784)			Immediately	$ 14.03
24	789661		Nut		Appelez-nous	-
25	WP950035		Gasket, Terminal Cover   (Replaces: 789831)				$ 82.55
26	WP1161170		Overload   (Replaces: 789940)				$ 89.65
27	789830		Spring, Overload		Appelez-nous	-
28	789832		Cover, Terminal		Appelez-nous	-
29	789833		Nut, Terminal Cover		Appelez-nous	-
30	789735		Snubber, Two 1/4 Tubes		Appelez-nous	-
30	3148443		Screw No.8 X 1/4		Appelez-nous	-
30	789673		Strainer		Appelez-nous	-
