SELECT A DIAGRAM

1 - Controls & Dispenser

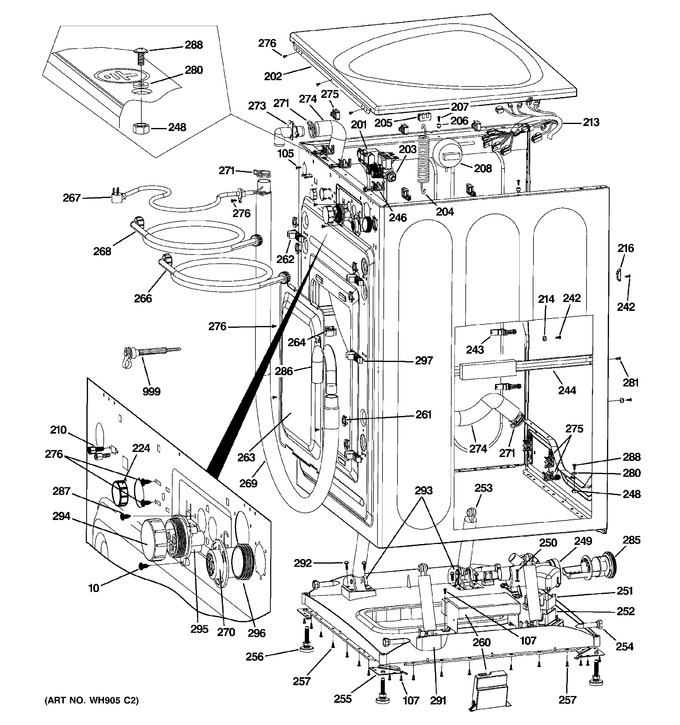

2 - Cabinet & Top Panel


3 - Front Panel & Door


4 - Tub & Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WH02X10223		Screw_st4*10		Appelez-nous	-
105	WH02X10181		Screw_st3.5 X 11		Appelez-nous	-
107	WH02X10183		Screw_st4*13		Appelez-nous	-
201	WH41X10123		Emi_filter		Appelez-nous	-
202	WH44X10202		Top Panel Asm Mg		Appelez-nous	-
203	WG04F01378		Water Valve   (Replaces: WH13X10023)			Immediately	$ 111.16
204	WH05X10010		Spring - Suspension		Appelez-nous	-
205	WH01X10380		Hanger - Spring		Appelez-nous	-
206	WH01X10252		Top_panel_pin		Appelez-nous	-
207	WH02X10187		Screw_st 4.2x14		Appelez-nous	-
208	WH12X10390		Pressure Switch		Appelez-nous	-
210	WH02X10268		Screw - Db9 Connector		Appelez-nous	-
213	WH19X10057		Wire Harness		Appelez-nous	-
214	WH01X10253		Front_panel_pin		Appelez-nous	-
216	WH16X10073		Front_panel_hanger		Appelez-nous	-
224	WH01X10382		Cover Wire		Appelez-nous	-
242	WH02X10182		Screw_st4.2*13		Appelez-nous	-
243	WH16X10074		Wire_catch		Appelez-nous	-
244	WH16X10075		Side_bracket		Appelez-nous	-
246	WH16X10076		Wire_catch		Appelez-nous	-
248	WH02X10199		Nut_m5		Appelez-nous	-
249	WG04F12336		Pump   (Replaces: WH23X10028)			Immediately	$ 146.24
250	WH02X10200		Screw_washer_st4*25		Appelez-nous	-
251	WH44X10176		Wiring_cover		Appelez-nous	-
252	WH44X10177		Inverter Connectors Shie		Appelez-nous	-
253	WH01X10385		Damper - Shock		Appelez-nous	-
254	WH01X10261		Damper_pin		Appelez-nous	-
255	WH16X10077		Corner Bracket		Appelez-nous	-
256	WG04F01833		Leg   (Replaces: WH46X10130)				$ 34.94
257	WH02X10201		Screw_st4.2*13		Appelez-nous	-
260	WH12X10414		Inverter - Plastic Case		Appelez-nous	-
260	WH12X10391		Inverter - Metal Case		Appelez-nous	-
261	WH44X10206		Cover - Shipping Screw		Appelez-nous	-
262	WH01X10262		Outside_drain_hose_catch		Appelez-nous	-
263	WH46X10132		Cabinet_rear_cover		Appelez-nous	-
264	WH01X10263		Inside_drain_hose_catch		Appelez-nous	-
266	WH41X10124		Main_water_hose_cold		Appelez-nous	-
267	WH19X10046		Power_cord		Appelez-nous	-
268	WH41X10125		Main_water_hose_hot		Appelez-nous	-
269	WG04F00643		Outside_drain_hose   (Replaces: WH41X10126)				$ 99.93
270	WH01X10264		Vent_hose_coupling		Appelez-nous	-
271	WH01X10265		Drain_hose_clamp		Appelez-nous	-
273	WG04F00309		Drain_hose_coupling   (Replaces: WH01X10266)				$ 7.55
274	WH41X10127		Inside_drain_hose		Appelez-nous	-
275	WH16X10078		Wire_catch_1		Appelez-nous	-
276	WH02X10203		Screw St4.2*11		Appelez-nous	-
280	WH02X10218		Lock Washer		Appelez-nous	-
281	WH02X10219		Screw_st4*10		Appelez-nous	-
285	WG04A05158		Pump Filter   (Replaces: WH23X10029)				$ 38.12
286	WG04F04381		Drain Hose Guide U-shape   (Replaces: WH41X10133)				$ 8.34
287	WH02X10220		Screw_st4.2*13		Appelez-nous	-
288	WH02X10234		Screw M5*12		Appelez-nous	-
291	WH16X10108		Damper Bracket - Left		Appelez-nous	-
292	WH02X10271		Screw St5.5*20		Appelez-nous	-
293	WH16X10109		Damper Bracket - Right		Appelez-nous	-
294	WH01X10399		Quick Connector Dust Cap		Appelez-nous	-
295	WH01X10391		Quick Connector		Appelez-nous	-
296	WH08X10037		Seal Vent Pipe		Appelez-nous	-
297	WH01X10392		Tube Support		Appelez-nous	-
999	WH49X10049		Kit - Shipping Bolt Grey		Appelez-nous	-
	WG04F00346		Poulie D''entrainement				$ 74.33
	WG02F04593		Inverter & Power Brd Kit				$ 741.66
	WG02F04591		Control Board				$ 293.11
	WG04F12336		Pompe   (Replaces: WG04F00875)			Immediately	$ 146.24
	WG04F01600		Rear Tub Asm				$ 815.41
	WG04F01984		3- Pump Asm				$ 422.27
	WG04F02290		Rﾃ#gistre				$ 88.02
	WG04F03673		Cuve Avant				$ 170.55
	WG04F03678		Power Board				$ 237.13
	WG04L05906		Basket Asm   (Replaces: WG04L01530)				$ 1,546.27
	WG04L00208		Gasket				$ 267.96

    View Diagram in Separate Window       Print Part List
