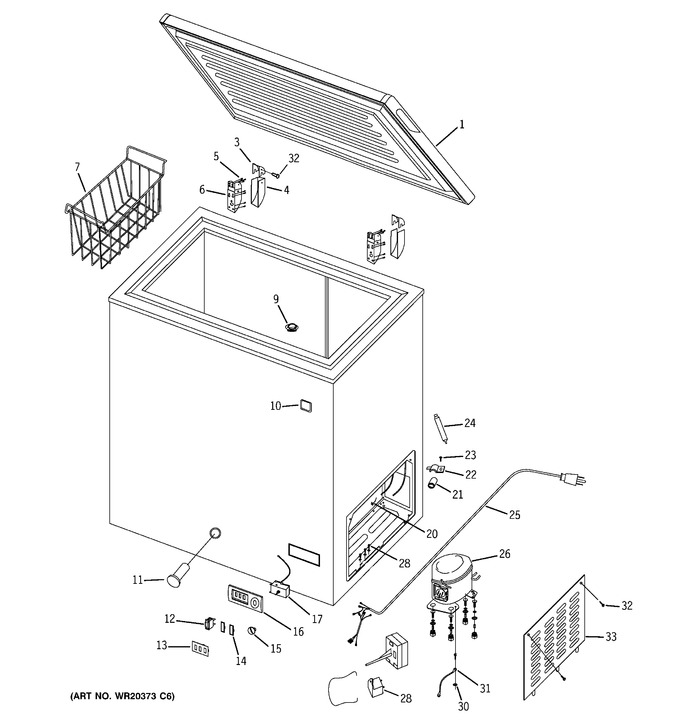

1 - Freezer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WR90X00043 | Door |
|
- | |||||
| 3 | WR13X10369 | Cover Hinge - Top |
|
- | |||||
| 4 | WR13X10370 | Cover Hinge - Bottom |
|
- | |||||
| 5 | WR01X10743 | Screw |
|
- | |||||
| 6 | WR13X10466 | Hinge |
|
- | |||||
| 7 | WR21X10208 | Basket |
|
$ 33.39 | |||||
| 9 | WR02X12189 | Drain Stopper |
|
- | |||||
| 10 | WR02X12047 | Logo |
|
- | |||||
| 11 | WR02X12044 | Drain Plug |
|
- | |||||
| 12 | WR02X12562 | Green Light |
|
- | |||||
| 13 | WR02X12191 | Cover Board |
|
- | |||||
| 14 | WR02X12048 | Plastic Board |
|
- | |||||
| 15 | WR02X12190 | Thermostat Knob |
|
- | |||||
| 16 | WR55X10540 | Control Panel |
|
- | |||||
| 17 | WG03F00745 | Thermostat (Replaces: WR50X10085) |
|
$ 56.10 | |||||
| 20 | WR01X10745 | Power Cord Fix Belt |
|
- | |||||
| 21 | WR02X12194 | Rubber Loop |
|
- | |||||
| 22 | WR01X10747 | Power Cord Clamp |
|
- | |||||
| 23 | WR01X10746 | Screw |
|
- | |||||
| 24 | WR86X10035 | Filter Drier |
|
- | |||||
| 25 | WR23X10619 | Power Cord |
|
- | |||||
| 26 | WR86X10051 | Compressor |
|
- | |||||
| 28 | WR01X10744 | Toothed Washer |
|
- | |||||
| 30 | WR07X10139 | Ptc&olp |
|
- | |||||
| 31 | WR62X10090 | Run Capacitor |
|
- | |||||
| 32 | WR01X10487 | Screw |
|
- | |||||
| 33 | WR17X12345 | Comp Grill(access Panel) |
|
- |
