SELECT A DIAGRAM

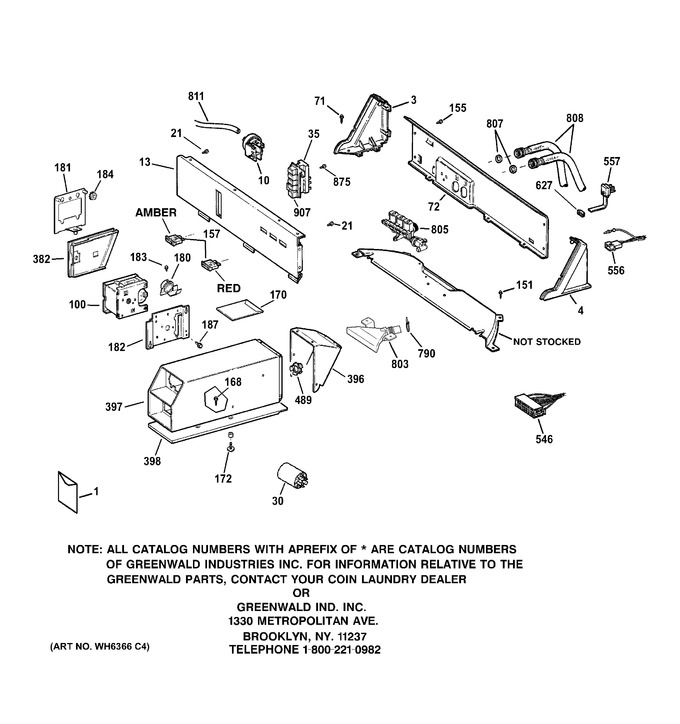

1 - Backsplash & Coin Box Assembly


2 - Cabinet, Cover & Front Panel


3 - Tub, Basket & Agitator


4 - Suspension, Pump & Drive Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	175D2145P001		Lid Large		Appelez-nous	-
1	49-90333		Pm Manual U&c P49-90333		Appelez-nous	-
1	31-16513		Pm Instruction Install		Appelez-nous	-
1	31-16562		Pm Sheet Mini Manual		Appelez-nous	-
3	WH42X10735		End Cap Lh Bk		Appelez-nous	-
3	141A7901P012		Paint Lid Wh		Appelez-nous	-
4	WH42X10734		End Cap Rh Bk		Appelez-nous	-
10	WH12X10377		Switch Pressure		Appelez-nous	-
13	WH42X10736		Control Panel Asm		Appelez-nous	-
21	WH2X1185		Scr 8-18 B Ihw 5/16 S		Appelez-nous	-
30	WG04F02321		Filter Power Line   (Replaces: WH12X10408)				$ 57.27
35	WH12X10497		Switch Pushbutton		Appelez-nous	-
71	WH2X1205		Scr 8-18 B 1/2 Hxw P		Appelez-nous	-
72	WH46X10083		Panel Back		Appelez-nous	-
100	WG04F03579		Timer Coin-op   (Replaces: WH12X10376)				$ 223.23
151	WH02X10126		Screw 8-18 B 1hw 1/2 Sn		Appelez-nous	-
155	WH2X1233		Scr 8-18 Ab Trt 5/8 S		Appelez-nous	-
157	WG04F07410		Lamp Asm-amber   (Replaces: WE1X950)				$ 10.81
157	WH12X624		Lamp Asm-red		Appelez-nous	-
168	WZ02X0468		Scr 10-32 M Hs 1/8 S		Appelez-nous	-
170	WH49X10053		Pm Envelope Asm Lockdown		Appelez-nous	-
172	WH2X1234		Scr 1/4-20mac Pnt .95		Appelez-nous	-
180	* 72-33-4		Clutch Asm		Appelez-nous	-
181	* 74-1083		Adapter Coin Slide		Appelez-nous	-
182	* 74-2055		Bracket Timer		Appelez-nous	-
183	WH02X10280		Scr 8-32 Sn 5/16 S		Appelez-nous	-
184	WH02X10300		Nut Keps 10-32 Special		Appelez-nous	-
187	WH2X946		Scr 10-32 M Hxw 1/4 S		Appelez-nous	-
382	WH42X10804		Door And Latch Asm		Appelez-nous	-
396	WH42X10806		Adapter Meter Case		Appelez-nous	-
397	WH42X10805		Meter Case Wh		Appelez-nous	-
398	WH08X10006		Gasket Coin Box Washer		Appelez-nous	-
489	WH1X2572		Sleeve Split		Appelez-nous	-
546	WH12X870		Housing Terminal Bk		Appelez-nous	-
556	WH12X497		Housing Terminal		Appelez-nous	-
557	WH19X10069		Cord Power Asm		Appelez-nous	-
627	WH12X10208		Self Locking Strain Relf		Appelez-nous	-
790	WH1X2036		Clamp Hose		Appelez-nous	-
803	WH41X10165		Funnel Shower Head		Appelez-nous	-
805	WG04F03593		Triple Water Valve   (Replaces: WH13X10026)			Immediately	$ 157.36
807	WH2X42		Hose Washer		Appelez-nous	-
808	WH41X10251		Intake Hose-1 4'w/90 Deg		Appelez-nous	-
811	WG04F03638		Hose Pres Sw   (Replaces: WH41X365)			Immediately	$ 15.88
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
907	WD9X206		Pushbutton		Appelez-nous	-
	WG04A00025		Courroie			Immediately	$ 56.80
	WG04A03417		Assm Pompe   (Replaces: WG04F00874)			Immediately	$ 188.22
	WG04L01048		Tub Cover				$ 179.63
