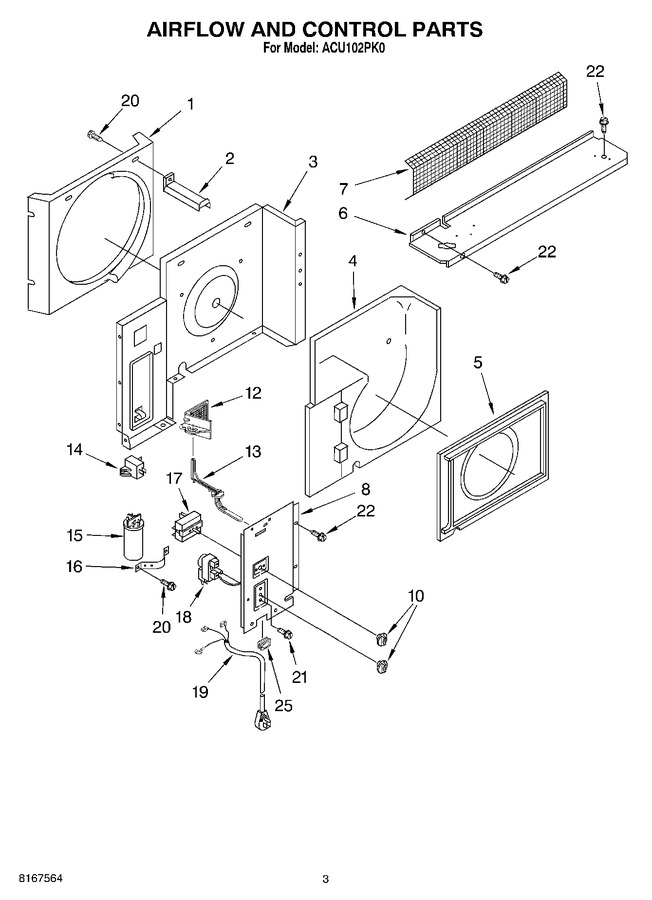

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	789890		Shroud, Condenser		Appelez-nous	-
2	789891		Support, Unit		Appelez-nous	-
3	789893		Wall, Dividing		Appelez-nous	-
4	789894		Scroll, Blower		Appelez-nous	-
5	789774		Shroud, Evaporator		Appelez-nous	-
6	789993		Cover, Evaporator		Appelez-nous	-
7	789645		Screen, Air Discharge		Appelez-nous	-
8	789986		Panel, Control		Appelez-nous	-
10	789996		Knob, Control		Appelez-nous	-
12	789991		Door, Exhaust		Appelez-nous	-
13	789992		Actuator, Door		Appelez-nous	-
14	789801		Assist, Start		Appelez-nous	-
15	789905		Capacitor		Appelez-nous	-
16	789749		Strap, Capacitor		Appelez-nous	-
17	789904		Switch, Rotary		Appelez-nous	-
18	789958		Thermostat		Appelez-nous	-
19	789903		Cable, Appliance		Appelez-nous	-
20	4363526		Screw 8 X 1/2		Appelez-nous	-
21	WP488234		Screw 8-32 X 1/4   (Replaces: 489422)				$ 7.08
22	3148443		Screw, 8 X 1/4		Appelez-nous	-
25	789806		Relief, Strain		Appelez-nous	-
