SELECT A DIAGRAM

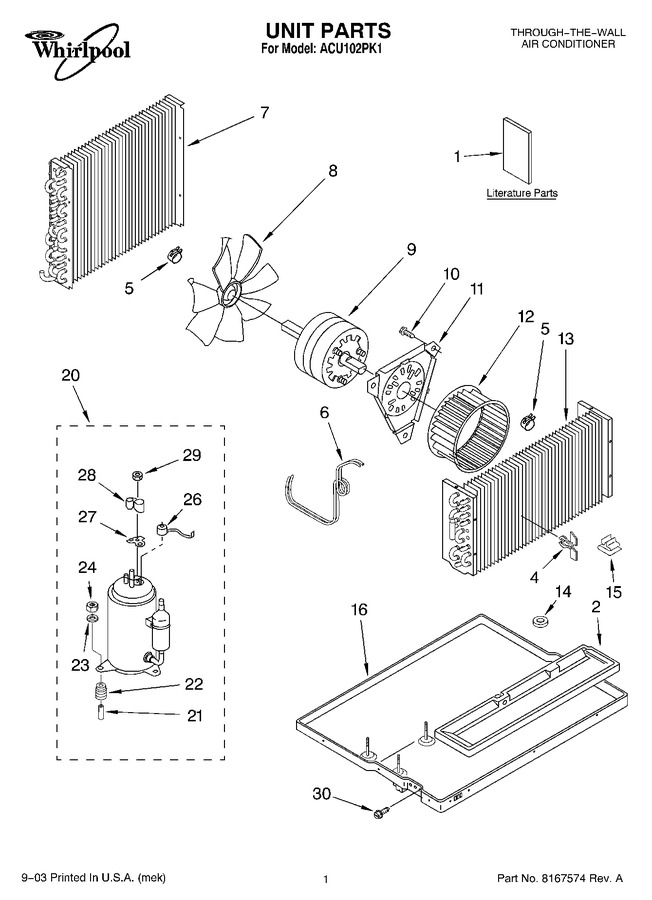

01 - Unit Parts


02 - Airflow And Control Parts


03 - Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT789957		Literature Parts (use And Care Guide)		Appelez-nous	-
2	789856		Pan, Drain (evaporator)		Appelez-nous	-
4	789799		Clip, Thermostat Bulb		Appelez-nous	-
5	789889		Clamp		Appelez-nous	-
6	8199509		Tube, Restrictor .042 I.d. X 27.5`` (2)		Appelez-nous	-
7	789945		Condenser		Appelez-nous	-
8	789888		Blade, Fan (condenser)		Appelez-nous	-
9	789892		Motor, Fan		Appelez-nous	-
10	WP8204624		Screw 1/4-20 X 5/8   (Replaces: 4356830)				$ 17.48
11	789793		Plate, Motor Mounting				$ 381.57
12	789895		Wheel, Blower		Appelez-nous	-
13	789914		Evaporator		Appelez-nous	-
14	789755		Grommet		Appelez-nous	-
15	789763		Clip (2)		Appelez-nous	-
16	789982		Base		Appelez-nous	-
20	789981		Compressor		Appelez-nous	-
21	789884		Sleeve (3)		Appelez-nous	-
22	789664		Grommet (3)		Appelez-nous	-
23	W11236646		Washer   (Replaces: 789761)			Immediately	$ 14.73
24	789661		Nut		Appelez-nous	-
26	789880		Overload		Appelez-nous	-
27	789882		Gasket, Terminal Cover		Appelez-nous	-
28	789881		Cover, Terminal		Appelez-nous	-
29	789883		Nut, Terminal Cover		Appelez-nous	-
30	3148443		Screw, 8 X 1/4		Appelez-nous	-
30	N/A		Following Parts Not Illustrated		Appelez-nous	-
30	789673		Strainer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
