SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board

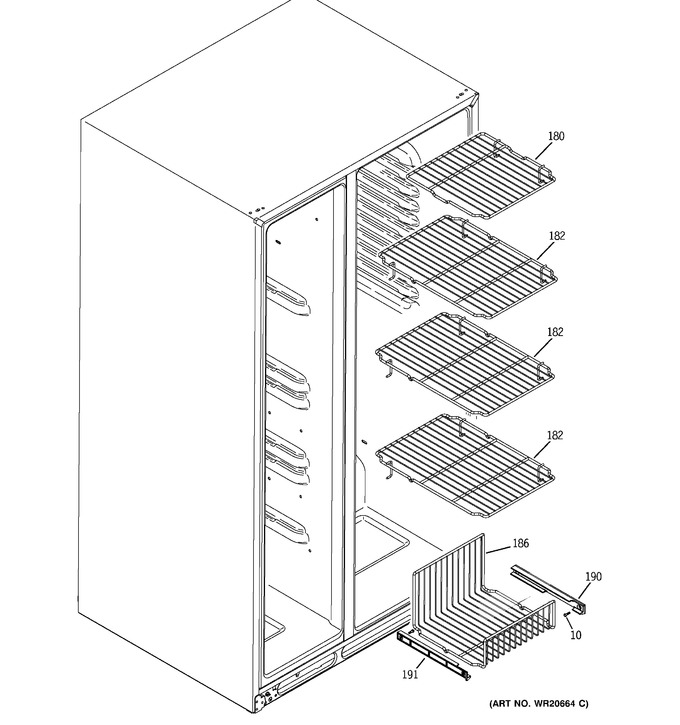

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WR01X10065		Scr 8-18 Ba Por 5/8 Ss		Appelez-nous	-
180	WR71X10680		Shelf Fixed Fz		Appelez-nous	-
182	WR71X10679		Shelf Slideout Fz		Appelez-nous	-
186	WR21X10124		Basket Wire Slideout Fz		Appelez-nous	-
190	WR72X10061		Support Slide Basket R		Appelez-nous	-
191	WR72X10062		Support Slide Basket L		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
