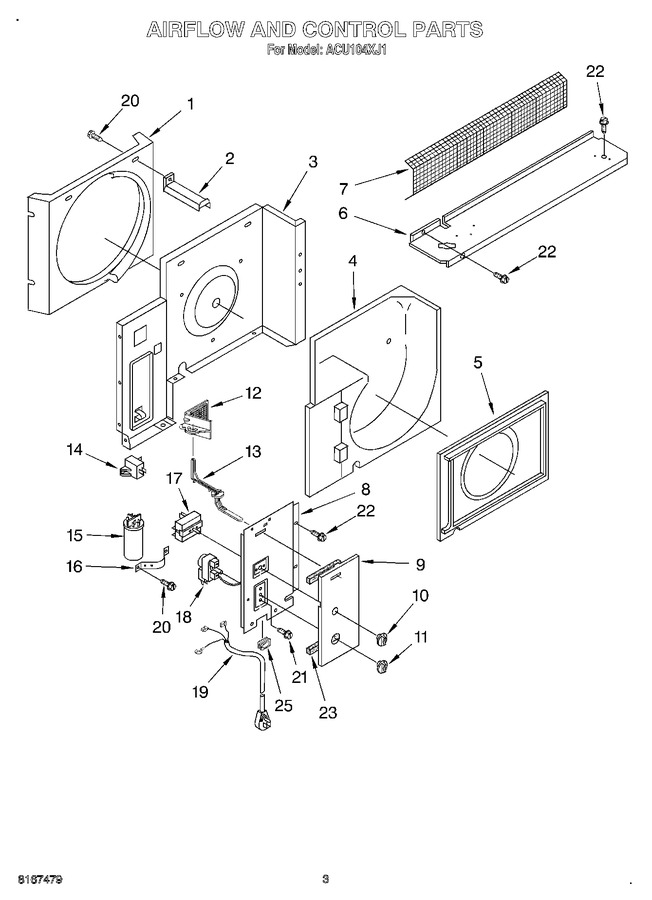

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	789890		Shroud, Condenser		Appelez-nous	-
2	789891		Support, Unit		Appelez-nous	-
3	789893		Wall, Dividing		Appelez-nous	-
4	789894		Scroll, Blower		Appelez-nous	-
5	789774		Shroud, Evaporator		Appelez-nous	-
6	789896		Cover, Evaporator		Appelez-nous	-
7	789645		Screen, Air Discharge		Appelez-nous	-
8	789931		Panel, Control		Appelez-nous	-
9	789852		Escutcheon (also Order No. 23)		Appelez-nous	-
10	789901		Knob, Fan Switch		Appelez-nous	-
11	789902		Knob, Thermostat		Appelez-nous	-
12	789907		Door, Exhaust		Appelez-nous	-
13	789906		Actuator, Door		Appelez-nous	-
14	789801		Assist, Start		Appelez-nous	-
15	789631		Capacitor		Appelez-nous	-
16	789749		Strap, Capacitor		Appelez-nous	-
17	789904		Switch, Rotary		Appelez-nous	-
18	789627		Thermostat		Appelez-nous	-
19	789909		Cable, Appliance		Appelez-nous	-
20	4363526		Screw No.8 X 1/2		Appelez-nous	-
21	WP488234		Screw 8-32 X 1/4   (Replaces: 489422)				$ 6.74
22	3148443		Screw No.8 X 1/4		Appelez-nous	-
23	WP854334		Spacer, Escutcheon   (Replaces: 789623)				$ 13.28
25	789906		Relief, Strain		Appelez-nous	-
