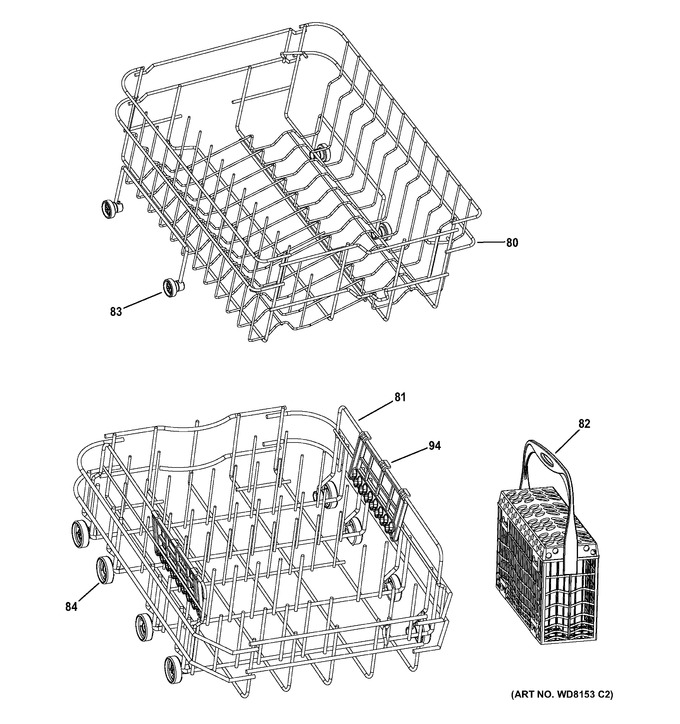

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 80 | WD28X10150 | Upper Rack Asm |
|
- | |||||
| 81 | WD28X10157 | Lower Rack Asm |
|
- | |||||
| 82 | WD28X10152 | Silverware Basket Asm |
|
- | |||||
| 83 | WD12X10179 | Upper Stud & Roller Asm |
|
- | |||||
| 84 | WG04L01805 | Lower Stud & Roller Asm (Replaces: WD12X10178) |
|
$ 22.23 | |||||
| 94 | WD28X10158 | Wine Shelf |
|
- |
