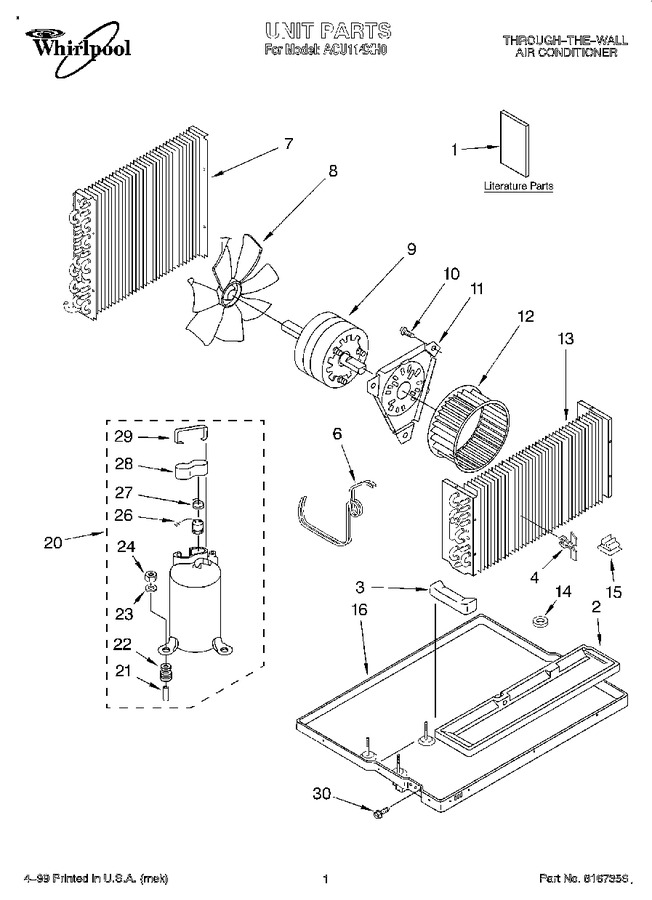

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT1182602		Use & Care Guide		Appelez-nous	-
2	789856		Pan, Drain (evaporator)		Appelez-nous	-
3	789858		Cover, Drain Pan		Appelez-nous	-
4	789799		Clip, Thermostat Bulb		Appelez-nous	-
6	789671		Tube, Restrictor .049 I.d. X 41`` (2)		Appelez-nous	-
7	789752		Condenser		Appelez-nous	-
8	789636		Blade, Fan (condenser)		Appelez-nous	-
9	789641		Motor, Fan		Appelez-nous	-
10	WP8204624		Screw 1/4-20 X 5/8   (Replaces: 4356830)				$ 17.48
11	789793		Plate, Motor Mounting				$ 381.57
12	789773		Wheel, Blower (includes Clamp)		Appelez-nous	-
13	789757		Evaporator		Appelez-nous	-
14	789755		Grommet		Appelez-nous	-
15	789763		Clip (2)		Appelez-nous	-
16	789764		Base		Appelez-nous	-
20	789826		Compressor		Appelez-nous	-
21	789783		Sleeve (3)		Appelez-nous	-
22	789827		Grommet (3)		Appelez-nous	-
23	W11236646		Washer   (Replaces: 789761)			Immediately	$ 14.73
24	789661		Nut		Appelez-nous	-
26	789825		Overload		Appelez-nous	-
27	789822		Spring, Overload		Appelez-nous	-
28	789823		Cover, Terminal		Appelez-nous	-
29	789824		Retainer, Terminal Cover		Appelez-nous	-
30	789735		Snubber, Two 1/4 Tubes		Appelez-nous	-
30	3148443		Screw No.8 X 1/4		Appelez-nous	-
30	789673		Strainer		Appelez-nous	-
