1 - Gas & Burner Parts


2 - Control Panel


3 - Cooktop

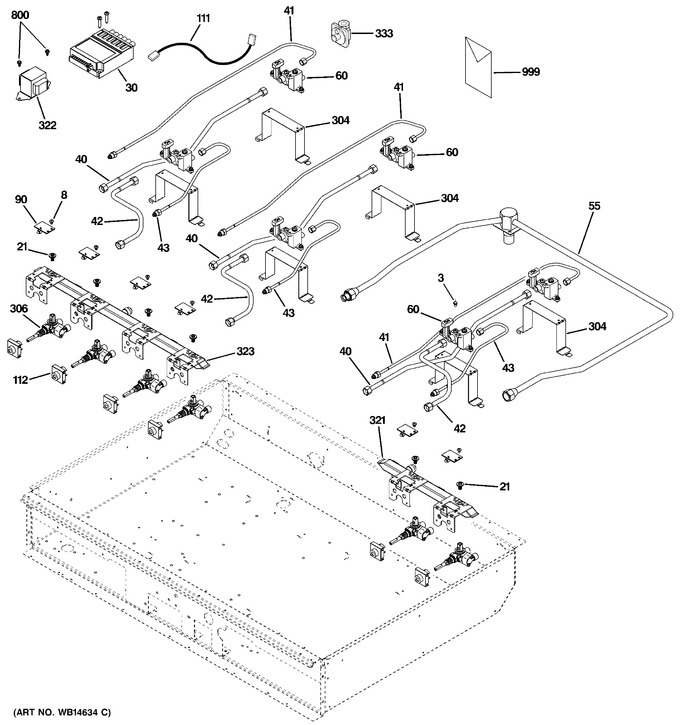

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	WG02F01183		Orifice Spud (ng Simmer)   (Replaces: WB28T10159)			Immediately	$ 14.29
3	WG02F01190		Orifice Spud(ng Main)   (Replaces: WB28T10155)				$ 14.29
3	WS01F01437		Orifice Spud Lp Rf Main   (Replaces: WB28T10117)				$ 3.75
3	WS01F01438		Orifice Spud Lp Rf Simm   (Replaces: WB28T10118)			Immediately	$ 3.75
8	WS01A01212		Screw 8-32   (Replaces: WB01K10002)				$ 79.32
21	WB01K10067		Scr 8 Hd 1/4 - 20		Appelez-nous	-
30	WB13K10031		Module Spark		Appelez-nous	-
40	WB28K10509		Tube And Nut Asm		Appelez-nous	-
41	WB28K10511		Tube And Nut Asm		Appelez-nous	-
42	WB28K10510		Tube And Nut Asm		Appelez-nous	-
43	WB28K10512		Tube And Nut Asm		Appelez-nous	-
55	WB28K10548		Elbow Swaged Asm		Appelez-nous	-
60	WB28T10114		Injet Burner 18k		Appelez-nous	-
90	WS01F01723		Led Asm   (Replaces: WB25K10012)				$ 87.49
111	WB18K10050		Harness Hv		Appelez-nous	-
112	WS01F00316		Harness Burner Box   (Replaces: WB24K10055)				$ 151.07
304	WB02K10192		Bracket Injet		Appelez-nous	-
306	WB21K10125		Valve Dual		Appelez-nous	-
306	WB21K10132		Valve Dual		Appelez-nous	-
321	WB28K10549		Pipe Manifold Asm		Appelez-nous	-
322	WS01F02728		Transformer   (Replaces: WB27K10298)				$ 169.78
323	WB28K10534		Pipe Manifold Asm Lf		Appelez-nous	-
333	WB21K10135		Regulator		Appelez-nous	-
333	WS01F02320		Regulator   (Replaces: WB21K10137)				$ 127.33
800	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
999	45-85119		Pm Owners Manual		Appelez-nous	-
999	31-10691		Pm Instructions Install		Appelez-nous	-
999	31-10693		Pm Conversion Steps		Appelez-nous	-
999	31-10697		Pm Attention Installer		Appelez-nous	-
999	31-14752		Pm Mini Manual		Appelez-nous	-
999	WG02A00015		Cleaner-ss   (Replaces: WB02T10111)				$ 23.22
