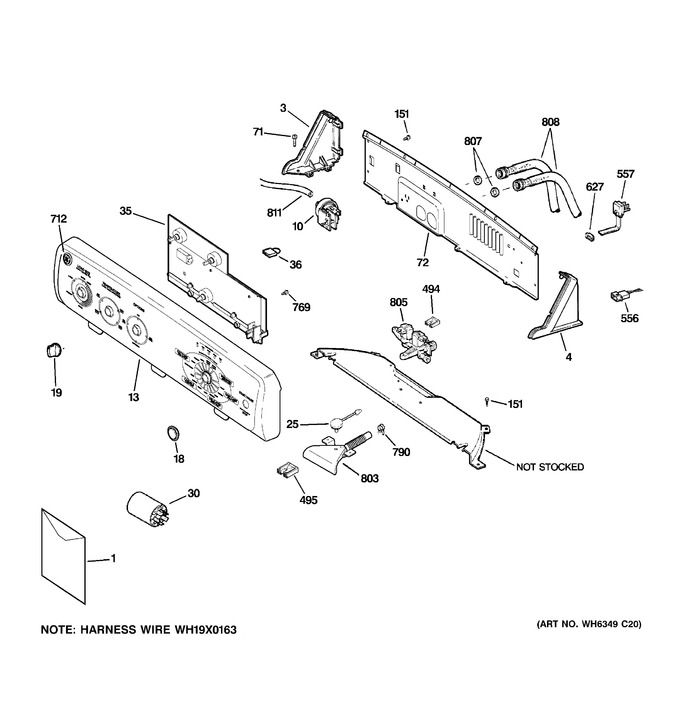

1 - Controls & Backsplash
2 - Cabinet, Cover & Front Panel
3 - Tub, Basket & Agitator
4 - Suspension, Pump & Drive Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-15441 | Pm Instruction Install |
|
- | |||||
| 1 | 31-16570 | Pm Sheet Mini Manual |
|
- | |||||
| 1 | 49-90385 | Pm Manual Use & Care |
|
- | |||||
| 3 | WH42X10634 | Endcap Lh Wh |
|
- | |||||
| 4 | WG03L07694 | Endcap Rh Wh (Replaces: WH42X10633) |
|
$ 66.87 | |||||
| 10 | WH12X10413 | Switch Pressure |
|
- | |||||
| 10 | WH12X10409 | Switch Pressure |
|
- | |||||
| 13 | WH42X10821 | Backsplash Asm |
|
- | |||||
| 13 | WH42X10820 | Backsplash Asm |
|
- | |||||
| 13 | WH42X10819 | Backsplash Asm |
|
- | |||||
| 18 | WG04F03527 | Switch Start/stop (Replaces: WH01X10088) |
|
$ 22.87 | |||||
| 19 | WG04F03533 | Knob Asm (Replaces: WH01X10315) |
|
$ 14.29 | |||||
| 25 | WH12X10411 | Probe Sensor Atc |
|
- | |||||
| 30 | WG04F02321 | Filter Power Line (Replaces: WH12X10408) |
|
$ 51.54 | |||||
| 35 | WG04F04505 | Board Asm Mounted (Replaces: WH12X10439) |
|
$ 224.19 | |||||
| 36 | WH12X10111 | Connector Model Select |
|
- | |||||
| 71 | WH2X1205 | Scr 8-18 B 1/2 Hxw P |
|
- | |||||
| 72 | WH46X10146 | Panel Back Washer |
|
- | |||||
| 151 | WH02X10126 | Scr 8-18 B 1hw 1/2 Sn |
|
- | |||||
| 494 | WD21X10257 | Housing Terminal |
|
- | |||||
| 495 | WD21X10258 | Term Hsng - Solenoid |
|
- | |||||
| 556 | WH12X497 | Housing Terminal |
|
- | |||||
| 557 | WH19X311 | Cordset Asm |
|
- | |||||
| 627 | WH12X10208 | Self Locking Strain Relf |
|
- | |||||
| 712 | WD34X11472 | Badge |
|
- | |||||
| 769 | WH02X10236 | Scr M4-1.44 B Pa 25 S |
|
- | |||||
| 769 | WG03A00428 | Scr 8-18 Hi/lo 5/8 (Replaces: WR01X10196) |
|
$ 4.20 | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 803 | WH41X10206 | Funnel Shower Head |
|
- | |||||
| 805 | WH13X86 | Valve Triple Water |
|
- | |||||
| 807 | WH02X10161 | Washer Flat |
|
- | |||||
| 808 | WH41X10095 | Hose Inlet Asm |
|
- | |||||
| 808 | WH41X10094 | Hose Inlet Asm |
|
- | |||||
| 811 | WG04F03638 | Hose Pressure Switch (Replaces: WH41X365) |
|
Immediately | $ 14.29 |
